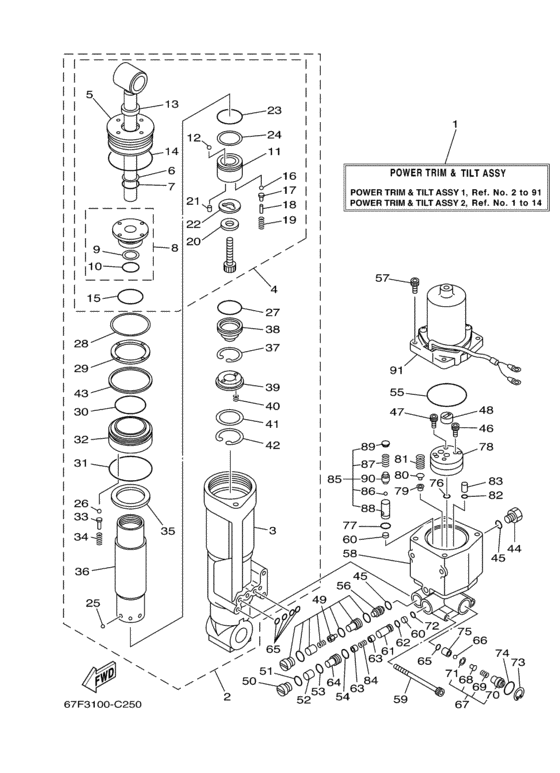

Power trim tilt assy Diagram Yamaha F90 TL/XR
- Year
- 2004
- Model
- F90
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67F-43800-03-4D Power Trim & Tilt Assy |
67F-43800-03-4D |
US $3,762 |
||
| replacements | |||||
|
1
|
1
67F-43800-09-4D Power Trim & Tilt Assy |
67F-43800-09-4D |
US $3,781.38 |
||
|
1
|
1
67F-43800-09-8D
POWER TRIM TILT ASSY
|
67F-43800-09-8D |
— | ||
|
1
|
1
67F-43800-08-8D Power Trim & Tilt Assy |
67F-43800-08-8D |
US $3,531.60 |
||
|
2
|
2
67F-43840-02-00 Power Tilt Assy |
67F-43840-02-00 |
US $1,131.24 |
||
| replacement | |||||
|
2
|
2
67F-43840-03-00 Power Tilt Assy |
67F-43840-03-00 |
from US $626.59 |
||
|
3
|
3
67F-4380K-00-00 Cylinder, Tilt Sub Assy |
67F-4380K-00-00 |
from US $391.52 |
||
|
4
|
4
67F-43810-01-00
Tilt Piston Sub Assy
|
67F-43810-01-00 |
— | ||
| replacement | |||||
|
4
|
4
67F-43810-02-00 Tilt Piston Sub Assy |
67F-43810-02-00 |
from US $626.94 |
||
|
5
|
5
67F-43821-00-00 Screw, Trim Cylinder End |
67F-43821-00-00 |
US $126 |
||
| replacement | |||||
|
5
|
5
67F-43821-09-00 Screw, Trim Cylinder End |
67F-43821-09-00 |
from US $80.61 |
||
|
6
|
6
6H1-43872-10-00 Ring, Back UpUP |
6H1-43872-10-00 |
from US $4.96 |
||
|
7
|
7
93210-18397-00 O-Ring |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
8
|
8
67F-4380R-00-00 Cylinder End Sub Assy |
67F-4380R-00-00 |
US $146.45 |
||
| replacement | |||||
|
8
|
8
67F-4380R-01-00 Cylinder End Sub Assy |
67F-4380R-01-00 |
from US $146.45 |
||
|
9
|
9
6H1-43872-10-00 Ring, Back UpUP |
6H1-43872-10-00 |
from US $4.96 |
||
|
10
|
10
93210-18397-00 O-Ring |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
11
|
11
67F-4385A-01-00 Piston, Tilt |
67F-4385A-01-00 |
US $94.92 |
||
| replacement | |||||
|
11
|
11
67F-4385A-09-00 Piston, Tilt |
67F-4385A-09-00 |
from US $60.66 |
||
|
12
|
12
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
13
|
13
6H1-43812-00-00 Seal, Dust |
6H1-43812-00-00 |
from US $5.67 |
||
|
14
|
14
67F-43861-00-00 O-Ring |
67F-43861-00-00 |
from US $7.79 |
||
|
15
|
15
62X-43862-00-00 O-Ring |
62X-43862-00-00 |
from US $4.68 |
||
|
16
|
16
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
17
|
17
65W-4386A-00-00 Pin, Absorber Valve |
65W-4386A-00-00 |
from US $3.97 |
||
|
18
|
18
688-4386F-00-00 Pin, Straight |
688-4386F-00-00 |
from US $2.41 |
||
|
19
|
19
65W-43853-00-00 Spring, Main Valve |
65W-43853-00-00 |
US $2.13 |
||
|
20
|
20
67F-43893-00-00 Washer |
67F-43893-00-00 |
from US $8.22 |
||
|
21
|
21
93602-07244-00 Pin, Dowel |
93602-07244-00 |
from US $1.94 |
||
|
22
|
22
67F-22435-00-00 Plate, Valve 2 |
67F-22435-00-00 |
from US $7.37 |
||
|
23
|
23
93210-29375-00 O-Ring |
93210-29375-00 |
from US $1.56 |
||
|
24
|
24
62X-43871-00-00 Ring, Back UpUP |
62X-43871-00-00 |
from US $11.90 |
||
|
25
|
25
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
26
|
26
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
27
|
27
67F-43863-00-00 O-Ring |
67F-43863-00-00 |
from US $2.83 |
||
|
28
|
28
67F-43899-00-00 Plate Stopper |
67F-43899-00-00 |
from US $4.39 |
||
|
29
|
29
67F-43816-00-00 Filter 1 |
67F-43816-00-00 |
from US $17 |
||
|
30
|
30
67F-43862-00-00 Screw, Cylinder End |
67F-43862-00-00 |
from US $4.11 |
||
|
31
|
31
62X-43865-00-00 O-Ring |
62X-43865-00-00 |
from US $4.11 |
||
|
32
|
32
67F-4388A-00-00 Piston, Trim |
67F-4388A-00-00 |
US $88.42 |
||
| replacement | |||||
|
32
|
32
67F-4388A-09-00 PISTON, TRIM |
67F-4388A-09-00 |
from US $56.51 |
||
|
33
|
33
6T4-4386A-00-00 Pin, Absorber Valve |
6T4-4386A-00-00 |
from US $2.13 |
||
|
34
|
34
67F-43857-00-00 Spring, Absorber Valve |
67F-43857-00-00 |
from US $3.12 |
||
|
35
|
35
67F-4381J-00-00 Plate |
67F-4381J-00-00 |
from US $7.23 |
||
|
36
|
36
67F-22471-01-00 Cylinder, Shock Absorber |
67F-22471-01-00 |
from US $232.58 |
||
|
37
|
37
67F-43875-00-00 Ring, Snap |
67F-43875-00-00 |
from US $5.38 |
||
|
38
|
38
67F-4381B-00-00 Free Piston Sub Assy |
67F-4381B-00-00 |
from US $113.71 |
||
|
39
|
39
62X-43899-00-00 Plate Stopper |
62X-43899-00-00 |
from US $51.95 |
||
|
40
|
40
62X-4384H-00-00 Spring |
62X-4384H-00-00 |
from US $1.70 |
||
|
41
|
41
1UF-22434-00-00 Plate, Valve 1 |
1UF-22434-00-00 |
from US $5.24 |
||
|
42
|
42
62X-43875-00-00 Ring, Snap |
62X-43875-00-00 |
from US $11.05 |
||
|
43
|
43
67F-43871-00-00 Ring, Back UpUP |
67F-43871-00-00 |
from US $17.85 |
||
|
44
|
44
6H1-43829-00-00 Plug, Reservoir |
6H1-43829-00-00 |
from US $10.48 |
||
|
45
|
45
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
45
|
45
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
45
|
45
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
|
46
|
46
91318-06035-00 Bolt |
91318-06035-00 |
US $1.07 |
||
| replacements | |||||
|
46
|
46
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
46
|
46
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
46
|
46
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
47
|
47
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.35 |
||
| replacement | |||||
|
47
|
47
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
48
|
48
6H1-43831-10-00 Connector, Shaft |
6H1-43831-10-00 |
from US $15.02 |
||
|
49
|
49
67F-43802-00-00 Valve Sub Assy |
67F-43802-00-00 |
US $73.36 |
||
|
50
|
50
67F-4382F-00-00 Adaptor 3 |
67F-4382F-00-00 |
US $11.17 |
||
|
51
|
51
6H1-43866-00-00
O-Ring
|
6H1-43866-00-00 |
— | ||
| replacement | |||||
|
51
|
51
6H1-43866-01-00 O-Ring |
6H1-43866-01-00 |
from US $2.13 |
||
|
52
|
52
67F-43817-00-00
Filter 2
|
67F-43817-00-00 |
— | ||
|
53
|
53
93210-10M74-00 O-Ring |
93210-10M74-00 |
US $2.13 |
||
|
54
|
54
6H1-43867-00-00 O-Ring |
6H1-43867-00-00 |
US $2.98 |
||
| replacement | |||||
|
54
|
54
93210-12N52-00 O-Ring |
93210-12N52-00 |
from US $1.84 |
||
|
55
|
55
62X-43865-00-00 O-Ring |
62X-43865-00-00 |
from US $4.11 |
||
|
56
|
56
62X-43841-00-00 Piston, Shuttle |
62X-43841-00-00 |
from US $33.44 |
||
|
57
|
57
65W-43888-00-00 Bolt, Socket |
65W-43888-00-00 |
from US $5.29 |
||
| replacement | |||||
|
57
|
57
90110-06114-00 Bolt, Hexagon Socket Head |
90110-06114-00 |
from US $2.66 |
||
|
58
|
58
67F-43825-03-00
Housing, Trim & Tilt
|
67F-43825-03-00 |
— | ||
| replacement | |||||
|
58
|
58
67F-43825-04-00
HOUSING, TRIM & TILT
|
67F-43825-04-00 |
— | ||
|
59
|
59
62X-43878-00-00 Bolt, Socket |
62X-43878-00-00 |
US $2.41 |
||
| replacement | |||||
|
59
|
59
62X-43878-01-00 Bolt, Socket |
62X-43878-01-00 |
from US $2.41 |
||
|
60
|
60
6H1-43816-00-00 Filter 1 |
6H1-43816-00-00 |
from US $19.55 |
||
|
61
|
61
67F-43851-00-00
Seat, Relief Valve
|
67F-43851-00-00 |
— | ||
|
62
|
62
93210-07003-00 O-Ring |
93210-07003-00 |
from US $1.56 |
||
| replacement | |||||
|
62
|
62
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
63
|
63
67F-43808-00-00 Seat Valve Comp 1 |
67F-43808-00-00 |
US $17.33 |
||
|
64
|
64
67F-4382G-00-00
Screw, Valve Seat
|
67F-4382G-00-00 |
— | ||
|
65
|
65
93210-064A5-00 O-Ring |
93210-064A5-00 |
US $1.94 |
||
| replacement | |||||
|
65
|
65
93210-06519-00 O-Ring |
93210-06519-00 |
from US $2.13 |
||
|
66
|
66
93505-32038-00 Ball |
93505-32038-00 |
from US $0.47 |
||
|
67
|
67
61A-43860-20-00 Manual Valve Sub-Assy |
61A-43860-20-00 |
from US $79.38 |
||
|
68
|
68
61A-43848-00-00 Rod, Manual Release |
61A-43848-00-00 |
from US $23.18 |
||
|
69
|
69
61A-43854-00-00 Spring, Manual Release |
61A-43854-00-00 |
from US $9.35 |
||
|
70
|
70
61A-43845-00-00 Screw, Manual Release |
61A-43845-00-00 |
from US $52.34 |
||
|
71
|
71
61A-43875-00-00 Ring, Snap |
61A-43875-00-00 |
from US $5.95 |
||
|
72
|
72
93210-06100-00
O-Ring
|
93210-06100-00 |
— | ||
|
73
|
73
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $2.98 |
||
|
74
|
74
93210-18397-00 O-Ring |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
74
|
74
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
75
|
75
61A-43847-00-00 Seat, Manual Valve |
61A-43847-00-00 |
from US $10.91 |
||
|
76
|
76
65W-43862-00-00 O-Ring |
65W-43862-00-00 |
US $4.96 |
||
| replacement | |||||
|
76
|
76
93210-04N51-00 O-Ring |
93210-04N51-00 |
from US $1.56 |
||
|
77
|
77
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
78
|
78
67F-43830-00-00 Gear Pump Assy |
67F-43830-00-00 |
from US $317.73 |
||
|
79
|
79
6H1-4384F-10-00 Seal, Main Valve |
6H1-4384F-10-00 |
from US $4.82 |
||
|
80
|
80
6H1-43844-10-00 Pin, Valve Support |
6H1-43844-10-00 |
from US $13.74 |
||
|
81
|
81
6H1-43856-10-00 Spring, Down Relief |
6H1-43856-10-00 |
from US $1.98 |
||
|
82
|
82
65W-43861-00-00 O-Ring |
65W-43861-00-00 |
US $4.96 |
||
| replacement | |||||
|
82
|
82
93210-04N50-00 O-Ring |
93210-04N50-00 |
from US $1.98 |
||
|
83
|
83
65W-43817-00-00 Filter 2 |
65W-43817-00-00 |
from US $13.60 |
||
|
84
|
84
67F-4385H-00-00
Spring, Seal
|
67F-4385H-00-00 |
— | ||
|
85
|
85
67F-43850-00-00 Valve Sub Assy |
67F-43850-00-00 |
from US $84.55 |
||
|
86
|
86
93501-08001-00 Ball |
93501-08001-00 |
from US $1.51 |
||
|
87
|
87
6H1-43856-10-00 Spring, Down Relief |
6H1-43856-10-00 |
from US $1.98 |
||
|
88
|
88
67F-43895-00-00
Seat, Relief Valve
|
67F-43895-00-00 |
— | ||
|
89
|
89
67F-43843-00-00 Screw, Valve Lock |
67F-43843-00-00 |
from US $12.89 |
||
|
90
|
90
67F-4386A-00-00 Pin, Absorber Valve |
67F-4386A-00-00 |
from US $5.14 |
||
|
91
|
91
67F-43880-00-00 Motor Assy |
67F-43880-00-00 |
from US $1,317.36 |
||
