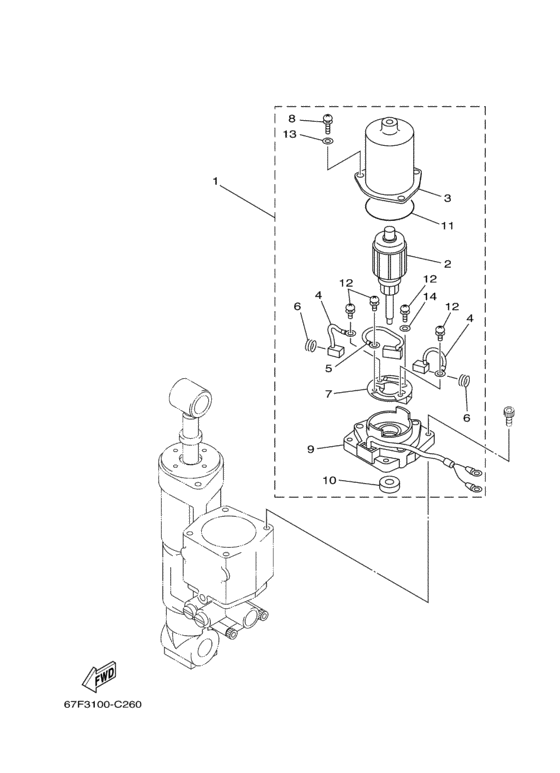

Power trim tilt assy Diagram Yamaha F90 TL/XR
- Year
- 2004
- Model
- F90
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67F-43880-00-00 Motor Assy |
67F-43880-00-00 |
from US $1,317.36 |
||
|
2
|
2
67F-43805-00-00 Armature Assy |
67F-43805-00-00 |
from US $883.39 |
||
|
3
|
3
67F-43804-00-00 Stator Assy |
67F-43804-00-00 |
from US $521.05 |
||
|
4
|
4
67F-43891-00-00 Brush 1 |
67F-43891-00-00 |
from US $23.82 |
||
|
5
|
5
67F-82181-00-00
Circuit Breaker Comp
|
67F-82181-00-00 |
— | ||
|
6
|
6
67F-4386K-00-00 Spring, Brush |
67F-4386K-00-00 |
from US $20.83 |
||
|
7
|
7
67F-4380F-00-00 Plate, Brush Holder |
67F-4380F-00-00 |
from US $20.83 |
||
|
8
|
8
67F-43886-00-00 Bolt |
67F-43886-00-00 |
from US $11.62 |
||
|
9
|
9
67F-43881-00-00 Frame, End |
67F-43881-00-00 |
from US $330.32 |
||
|
10
|
10
67F-43882-00-00 Oil Seal |
67F-43882-00-00 |
from US $27.68 |
||
|
11
|
11
67F-43896-00-00 O-Ring |
67F-43896-00-00 |
from US $17 |
||
|
12
|
12
67F-43879-00-00 Screw, With Washer |
67F-43879-00-00 |
from US $4.25 |
||
|
13
|
13
67F-4387G-00-00 Washer |
67F-4387G-00-00 |
US $2.79 |
||
|
14
|
14
67F-4387J-00-00 Washer, Special 2 |
67F-4387J-00-00 |
from US $3.52 |
