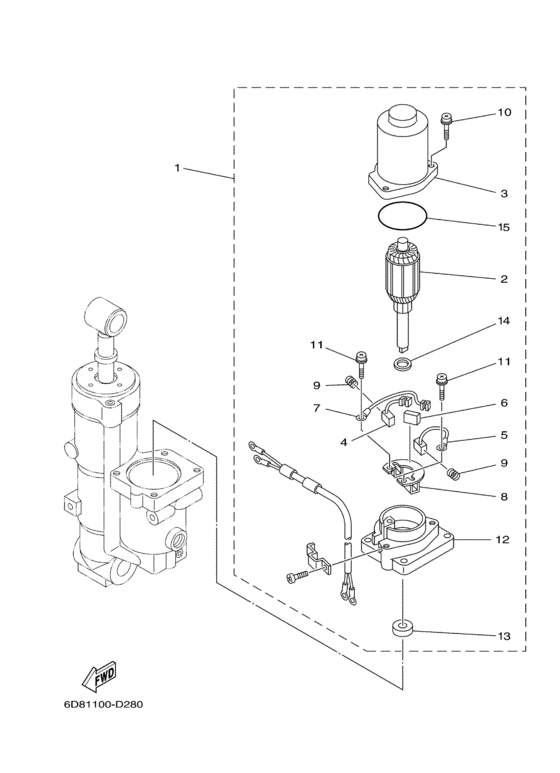

Power trim & tilt assy Diagram Yamaha F90 TL/XR
- Year
- 2005
- Model
- F90
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D8-43880-00-00 Motor Assy |
6D8-43880-00-00 |
US $689.04 |
||
| replacement | |||||
|
1
|
1
6D8-43880-09-00 Motor Assy (With Connector) |
6D8-43880-09-00 |
US $689.04 |
||
|
2
|
2
6D8-43805-00-00
Armature Assy
|
6D8-43805-00-00 |
— | ||
|
3
|
3
6D8-43804-00-00
Stator Assy
|
6D8-43804-00-00 |
— | ||
|
4
|
4
6H1-43891-11-00 Brush 1 |
6H1-43891-11-00 |
from US $14.31 |
||
|
5
|
5
6H1-43892-11-00 Breaker Comp. (Brush 2) |
6H1-43892-11-00 |
from US $14.31 |
||
|
6
|
6
6H1-82181-10-00 Circuit Breaker Comp |
6H1-82181-10-00 |
from US $163.03 |
||
|
7
|
7
62X-43807-00-00 Wire Sub Assy |
62X-43807-00-00 |
from US $11.05 |
||
|
8
|
8
6H1-4380F-11-00 Plate, Brush Holder |
6H1-4380F-11-00 |
from US $29.89 |
||
|
9
|
9
62X-4386K-00-00 Spring, Brush |
62X-4386K-00-00 |
from US $5.10 |
||
|
10
|
10
97980-05225-00 Screw, With Washer |
97980-05225-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
97607-04216-00 Screw, With Washer |
97607-04216-00 |
from US $1.56 |
||
|
12
|
12
6D8-43881-00-00 Frame, End |
6D8-43881-00-00 |
US $305.13 |
||
|
13
|
13
6H1-43882-11-00 Oil Seal |
6H1-43882-11-00 |
from US $11.19 |
||
|
14
|
14
90201-121J9-00 Washer, Plate |
90201-121J9-00 |
from US $1.98 |
||
|
15
|
15
93210-554A9-00 O-Ring |
93210-554A9-00 |
US $6.23 |
||
