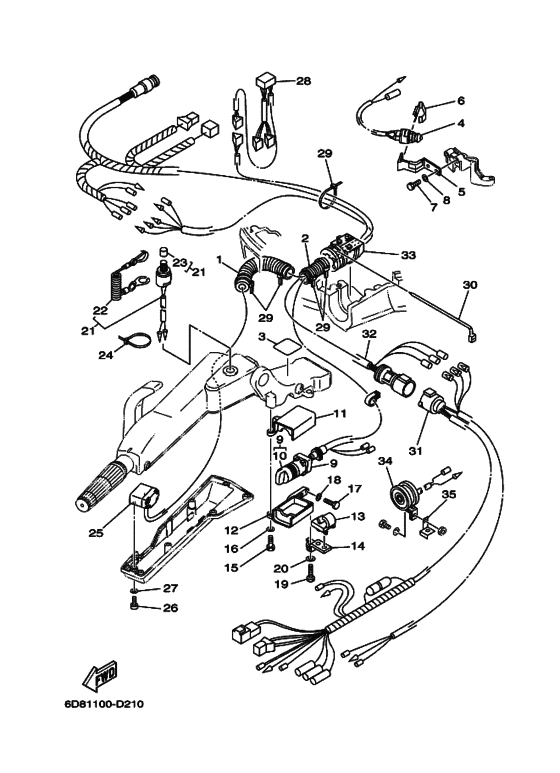

Steering 2 Diagram Yamaha F90 ETL/X
- Year
- 2005
- Model
- F90B
- Model code
- 6D8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90446-24M79-00 Hose ProtectorAP |
90446-24M79-00 |
from US $9.28 |
||
| replacement | |||||
|
1
|
1
90446-24M83-00 Hose ProtectorAP |
90446-24M83-00 |
from US $7.99 |
||
|
2
|
2
6K3-83557-00-00
Tube
AP |
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
2
|
2
6G1-83557-00-00 TubeAP |
6G1-83557-00-00 |
from US $4.11 |
||
|
3
|
3
67G-42735-00-00 ProtectorAP |
67G-42735-00-00 |
from US $2.79 |
||
|
4
|
4
688-82540-11-00 Neutral Switch Ass'yAP |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
4
|
4
688-82540-12-00 Neutral Switch AssyAP |
688-82540-12-00 |
from US $39.24 |
||
|
5
|
5
67G-82554-01-00 Stay, Neutral SwitchAP |
67G-82554-01-00 |
US $9.98 |
||
|
6
|
6
62Y-82555-00-00 Damper, Main Switch 1AP |
62Y-82555-00-00 |
US $7.78 |
||
|
7
|
7
97095-06014-00 BoltAP |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
97D95-06014-00 Bolt, Hexagon Deep RAP |
97D95-06014-00 |
from US $1.07 |
||
|
8
|
8
929-95066-00-00
Washer, Plate
AP |
929-95066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
67G-82510-50-00
Main Switch Assy
AP |
67G-82510-50-00 |
— | ||
| replacement | |||||
|
9
|
9
67G-82510-51-00
Main Switch Assy
AP |
67G-82510-51-00 |
— | ||
|
10
|
10
676-82577-00-00
Cap, Key
|
676-82577-00-00 |
— | ||
| replacement | |||||
|
10
|
10
676-82577-01-00 Cap, Key |
676-82577-01-00 |
from US $4.82 |
||
|
11
|
11
63D-8252E-01-4D
Cover, Main Switch
AP |
63D-8252E-01-4D |
— | ||
| replacement | |||||
|
11
|
11
63D-8252E-01-8D Cover, Main Switch 1AP |
63D-8252E-01-8D |
from US $21.54 |
||
|
12
|
12
63D-8252F-01-4D Cover, Main Switch 2AP |
63D-8252F-01-4D |
US $22.39 |
||
| replacements | |||||
|
12
|
12
63D-8252F-01-8D Cover, Main Switch 2AP |
63D-8252F-01-8D |
US $27.04 |
||
|
12
|
12
63D-8252F-01-8D Cover, Main Switch 2AP |
63D-8252F-01-8D |
US $27.04 |
||
|
13
|
13
63D-24367-00-00 Clamp, Fuel Pipe 2AP |
63D-24367-00-00 |
from US $6.23 |
||
|
14
|
14
63D-24364-00-00 StayAP |
63D-24364-00-00 |
from US $12.18 |
||
|
15
|
15
970-95060-25-00
Bolt
AP |
970-95060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
90101-06M27-00 BoltAP |
90101-06M27-00 |
from US $1.35 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
AP |
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
97095-06020-00 BoltAP |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
970-80060-20-00 BoltAP |
970-80060-20-00 |
from US $1.56 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
AP |
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
970-95060-30-00
Bolt
AP |
970-95060-30-00 |
— | ||
| replacement | |||||
|
19
|
19
97080-06030-00 BoltAP |
97080-06030-00 |
from US $2.83 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
AP |
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
69W-82575-00-00 Engine Stop Switch AssyAP |
69W-82575-00-00 |
from US $71.43 |
||
|
22
|
22
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
23
|
23
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
24
|
24
90465-13M11-00 ClampAP |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
80L-26397-00-00 BandAP |
80L-26397-00-00 |
from US $1.21 |
||
|
25
|
25
67G-82563-00-00 Trim & Tilt Switch AssyAP |
67G-82563-00-00 |
from US $153.36 |
||
|
26
|
26
97885-06016-00 Screw, Pan HeadAP |
97885-06016-00 |
from US $1.34 |
||
| replacements | |||||
|
26
|
26
98580-06016-00 Screw Pan HeadAP |
98580-06016-00 |
from US $2.55 |
||
|
26
|
26
901-57060-09-00 Screw, Pan HeadAP |
901-57060-09-00 |
US $2.55 |
||
|
27
|
27
929-95066-00-00
Washer, Plate
AP |
929-95066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646)AP |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
63D-83728-00-00 Connector AssyAP |
63D-83728-00-00 |
US $82.83 |
||
|
29
|
29
904-6513M-24-00
Band, Switch Cord
AP |
904-6513M-24-00 |
— | ||
| replacement | |||||
|
29
|
29
437-83936-11-00 Band, Switch CordAP |
437-83936-11-00 |
from US $1.56 |
||
|
30
|
30
90465-13M30-00 ClampAP |
90465-13M30-00 |
from US $1.98 |
||
|
31
|
31
6H5-83553-12-00 Wire, LeadAP |
6H5-83553-12-00 |
from US $140.92 |
||
|
32
|
32
63D-82586-01-00 Extension, Wire HarnessAP |
63D-82586-01-00 |
from US $297.04 |
||
|
33
|
33
67G-42725-01-00 GrommetAP |
67G-42725-01-00 |
from US $31.03 |
||
|
34
|
34
688-83383-11-00 BuzzerAP |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
34
|
34
688-83383-12-00 BuzzerAP |
688-83383-12-00 |
from US $54.99 |
||
|
35
|
35
6H5-83386-00-00 Buzzer StayAP |
6H5-83386-00-00 |
US $15.08 |
||
