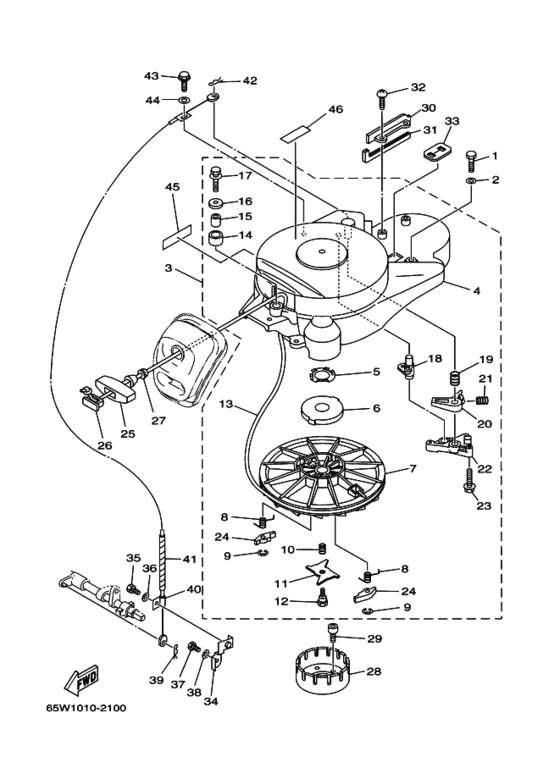

Starter Diagram Yamaha FT25 E(H/D/T)L/X
- Year
- 2003
- Model
- FT25B
- Model code
- 68U
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
1
|
1
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.52 |
||
|
2
|
2
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
2
|
2
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
3
|
3
65W-W1571-01-00 Starter Assyスタータアセンブリ; |
65W-W1571-01-00 |
US $682.44 |
||
| replacement | |||||
|
3
|
3
999-99034-45-00 Starter Assyスタータアセンブリ; |
999-99034-45-00 |
from US $520.13 |
||
|
4
|
4
65W-15711-01-00 Case, Starter．ケース，スタータ; |
65W-15711-01-00 |
US $232.77 |
||
| replacement | |||||
|
4
|
4
999-99034-46-00 Case, Starter．ケース，スタータ; |
999-99034-46-00 |
US $232.77 |
||
|
5
|
5
65W-15732-00-00 Washer, Wave 1．ワツシヤ，ウエーブ １; |
65W-15732-00-00 |
from US $3.68 |
||
|
6
|
6
65W-15713-00-00 Spring, Starter．スプリング，スタータ; |
65W-15713-00-00 |
from US $36.47 |
||
|
7
|
7
65W-15714-01-00 Drum, Sheave．ドラム，シーブ; |
65W-15714-01-00 |
from US $110.11 |
||
|
8
|
8
65W-15734-00-00 Spring, Return．スプリング，リターン; |
65W-15734-00-00 |
US $4.64 |
||
|
9
|
9
65W-15744-00-00 Circlip．サークリツプ; |
65W-15744-00-00 |
from US $2.98 |
||
|
10
|
10
65W-15715-00-00 Spring, Friction．スプリング，フリクシヨン; |
65W-15715-00-00 |
from US $10.42 |
||
|
11
|
11
65W-15716-00-00 Plate, Drive．プレート，ドライブ; |
65W-15716-00-00 |
from US $8.33 |
||
|
12
|
12
65W-15793-00-00 Screw．スクリユ; |
65W-15793-00-00 |
from US $2.98 |
||
|
14
|
14
65W-15752-00-00 Roller, Wire．ローラー，ワイヤ; |
65W-15752-00-00 |
from US $8.38 |
||
|
15
|
15
65W-15753-00-00 Bush．ブツシユ; |
65W-15753-00-00 |
from US $4.79 |
||
|
16
|
16
65W-15791-00-00 Washer, Lock．ワツシヤ，ロツク; |
65W-15791-00-00 |
from US $2.24 |
||
|
17
|
17
65W-15481-00-00 Bolt 1．ボルト １; |
65W-15481-00-00 |
from US $9.07 |
||
|
18
|
18
65W-15735-01-00 Guide, Cam．ガイド，カム; |
65W-15735-01-00 |
from US $13.32 |
||
|
19
|
19
65W-15767-01-00 Spring．スプリング; |
65W-15767-01-00 |
from US $21.54 |
||
|
20
|
20
65W-15794-00-00 Stopper．ストツパ; |
65W-15794-00-00 |
from US $26.35 |
||
|
21
|
21
65W-15784-00-00 Spring, Return．スプリング，リターン; |
65W-15784-00-00 |
from US $5.38 |
||
|
22
|
22
65W-15414-00-00 Cover 1．カバー １; |
65W-15414-00-00 |
from US $35.75 |
||
|
23
|
23
65W-15768-00-00 Bolt．ボルト; |
65W-15768-00-00 |
from US $2.98 |
||
|
24
|
24
65W-15741-10-00 Pawl, Drive．ポール，ドライブ; |
65W-15741-10-00 |
from US $14.47 |
||
|
25
|
25
689-15755-01-00 Handle, Starterハンドル，スタータ; |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
25
|
25
689-15755-02-00 HANDLE STARTERハンドル，スタータ; |
689-15755-02-00 |
from US $6.06 |
||
|
26
|
26
6F5-15779-02-00 Coverカバー; |
6F5-15779-02-00 |
from US $2.36 |
||
|
27
|
27
6A0-15789-00-00
Damper
ダンパ; |
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
27
|
27
697-15789-00-00 Damperダンパ; |
697-15789-00-00 |
US $4.39 |
||
|
28
|
28
65W-15723-10-00 Pulley, Starterプーリ，スタータ; |
65W-15723-10-00 |
from US $44.75 |
||
|
29
|
29
90110-08M03-00 Bolt, Hexagon Socket Head |
90110-08M03-00 |
from US $1.01 |
||
|
30
|
30
65W-15645-00-00 Plate |
65W-15645-00-00 |
from US $7.64 |
||
|
31
|
31
65W-15761-00-00 Seal, Rubber 1シール，ラバー １; |
65W-15761-00-00 |
from US $11.32 |
||
|
32
|
32
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
33
|
33
65W-81639-10-00 Coverプレート，アーマチヤーフイツテイング; |
65W-81639-10-00 |
US $6.02 |
||
|
34
|
34
65W-15774-00-00 Stay 4ステー ４; |
65W-15774-00-00 |
from US $16.20 |
||
|
35
|
35
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
35
|
35
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
36
|
36
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
37
|
37
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
37
|
37
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
38
|
38
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
39
|
39
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
40
|
40
65W-15770-00-00
Cable Comp., Starter Stop
ケーブルコンプリート，スタータストツプ; |
65W-15770-00-00 |
— | ||
|
41
|
41
90446-06M90-00 Hose (L120)ホース; |
90446-06M90-00 |
from US $6.52 |
||
|
42
|
42
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
43
|
43
65W-15482-00-00
Bolt 2
|
65W-15482-00-00 |
— | ||
|
44
|
44
65W-15726-00-00 Washer, Flat |
65W-15726-00-00 |
from US $3.68 |
||
|
45
|
45
65W-13437-01-00 Mark, Caution |
65W-13437-01-00 |
US $2.94 |
||
|
46
|
46
6A1-83625-01-00 Mark 5 |
6A1-83625-01-00 |
US $4.26 |
||
