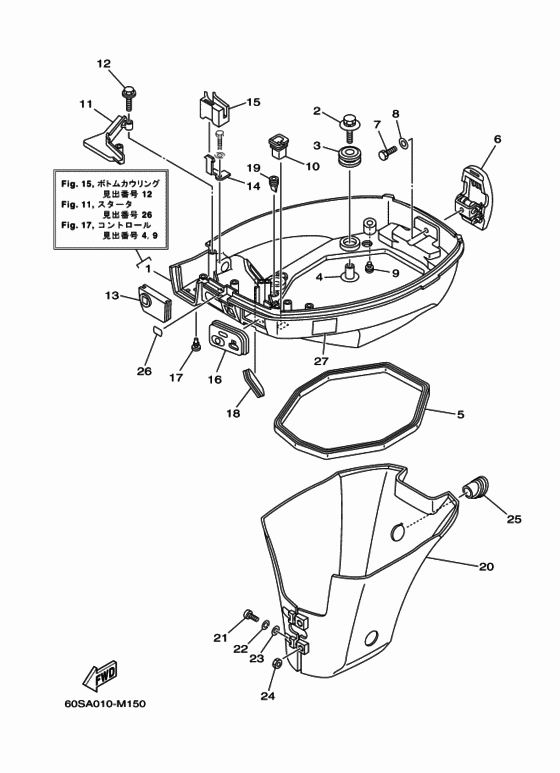

ボトムカウリング Diagram Yamaha FT8 MHX
- Year
- 2014
- Model
- FT8D
- Model code
- 60SB
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Japan (220)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60R-G2710-00-4D Bottom Cowling Assy |
60R-G2710-00-4D |
US $313.62 |
||
| replacements | |||||
|
1
|
1
68T-42710-01-4D Bottom Cowling Assy |
68T-42710-01-4D |
US $313.62 |
||
|
1
|
1
68T-42710-01-8D Bottom Cowling Assy |
68T-42710-01-8D |
US $441.05 |
||
|
2
|
2
68F-85119-00-00 Bolt |
68F-85119-00-00 |
from US $3.54 |
||
|
3
|
3
90480-21M82-00 Grommet |
90480-21M82-00 |
from US $3.83 |
||
|
4
|
4
90387-06176-00 Collar |
90387-06176-00 |
from US $4.68 |
||
|
5
|
5
68T-42716-10-00 Rubber, Seal 1 |
68T-42716-10-00 |
from US $13.46 |
||
|
6
|
6
68T-42801-00-00 Cowling Clamp Comp |
68T-42801-00-00 |
from US $39.38 |
||
|
7
|
7
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
8
|
8
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
10
|
10
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
11
|
11
68T-42738-00-4D Plate, Fitting |
68T-42738-00-4D |
US $37.03 |
||
| replacement | |||||
|
11
|
11
68T-42738-00-8D Plate, Fitting |
68T-42738-00-8D |
US $49.41 |
||
|
12
|
12
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
13
|
13
68T-42725-00-00 Grommet |
68T-42725-00-00 |
from US $10.48 |
||
|
14
|
14
68T-26393-00-00 Holder |
68T-26393-00-00 |
from US $5.53 |
||
|
15
|
15
68T-26367-00-00 Protector |
68T-26367-00-00 |
from US $5.53 |
||
|
16
|
16
68T-42724-20-00 Grommet |
68T-42724-20-00 |
from US $3.68 |
||
|
17
|
17
90480-06M19-00 Grommet |
90480-06M19-00 |
from US $3.12 |
||
|
18
|
18
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $3.68 |
||
|
19
|
19
60S-G2717-00-00 Rubber, Seal 2 |
60S-G2717-00-00 |
US $3.97 |
||
| replacement | |||||
|
19
|
19
65W-42717-00-00 Rubber, Seal 2 |
65W-42717-00-00 |
from US $3.97 |
||
|
20
|
20
60R-G2741-00-00 Apron |
60R-G2741-00-00 |
from US $45.59 |
||
|
21
|
21
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
25
|
25
68T-42717-00-00 Rubber, Seal 2 |
68T-42717-00-00 |
US $3.68 |
||
|
26
|
26
60R-H4342-00-00 Seat, Emblem |
60R-H4342-00-00 |
US $5.24 |
||
| replacement | |||||
|
26
|
26
65W-84342-00-00 Seat, Emblem |
65W-84342-00-00 |
from US $5.24 |
||
|
27
|
27
6AH-42794-00-00 Label, Warning (General) |
6AH-42794-00-00 |
US $10.20 |
||
| replacement | |||||
|
27
|
27
6EE-G2794-00-00 Label, Warning (General) |
6EE-G2794-00-00 |
US $10.20 |
||
