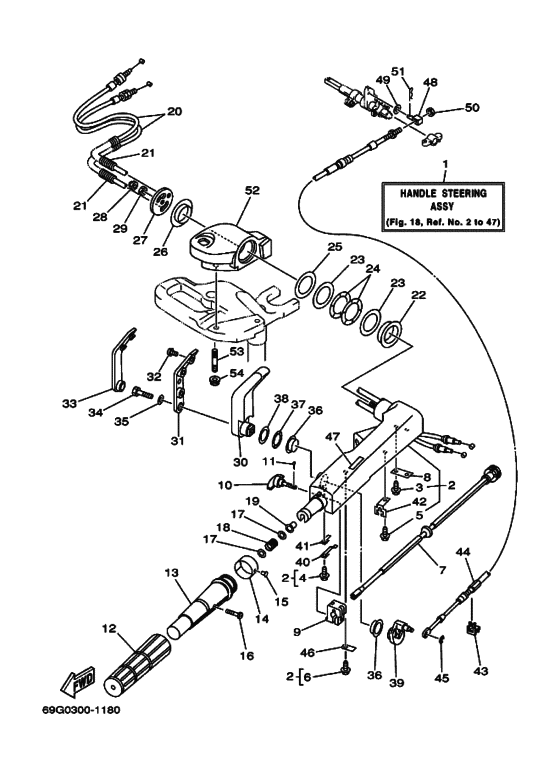

Steering Diagram Yamaha FT8 M(E)H(P)S/L/XL
- Year
- 2001
- Model
- FT8D
- Model code
- 69G
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68T-W0084-10-4D Handle Steering Assy |
68T-W0084-10-4D |
US $450.12 |
||
| replacements | |||||
|
1
|
1
68T-Y301P-13-00 Handle Steering Assy |
68T-Y301P-13-00 |
US $240.95 |
||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
68T-W0084-12-8D Handle Steering Assy |
68T-W0084-12-8D |
US $896.47 |
||
|
2
|
2
66R-42101-01-4D Handle, Steering |
66R-42101-01-4D |
US $106.80 |
||
| replacement | |||||
|
2
|
2
66R-42101-01-8D Handle, Steering |
66R-42101-01-8D |
from US $106.80 |
||
|
3
|
3
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
4
|
4
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
5
|
5
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
6
|
6
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
7
|
7
69G-42138-00-00 Lever, Throttle |
69G-42138-00-00 |
US $57.89 |
||
|
8
|
8
65W-42159-00-00 Stay |
65W-42159-00-00 |
from US $5.81 |
||
|
9
|
9
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
9
|
9
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
10
|
10
65W-42125-00-00 Bolt, Friction Adjusting |
65W-42125-00-00 |
from US $10.63 |
||
|
11
|
11
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
12
|
12
67D-42177-00-00 Rubber, Handle |
67D-42177-00-00 |
US $11.05 |
||
| replacement | |||||
|
12
|
12
67D-42177-01-00 RUBBER HANDLE |
67D-42177-01-00 |
from US $11.05 |
||
|
13
|
13
67D-42119-00-00 Grip, Steering Handle |
67D-42119-00-00 |
US $31.74 |
||
| replacement | |||||
|
13
|
13
67D-42119-01-00 Grip, Steering Handle |
67D-42119-01-00 |
from US $31.74 |
||
|
14
|
14
68T-42137-00-00 Indicator, Throttle |
68T-42137-00-00 |
from US $10.06 |
||
| replacement | |||||
|
14
|
14
60R-G2137-00-00 Indicator Throttle |
60R-G2137-00-00 |
from US $7.79 |
||
|
15
|
15
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
16
|
16
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
16
|
16
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
17
|
17
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
18
|
18
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
19
|
19
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
20
|
20
68T-26301-11-00 Throttle Cable Assy |
68T-26301-11-00 |
from US $15.73 |
||
|
21
|
21
90447-07005-00 Hose, With Spring |
90447-07005-00 |
from US $3.40 |
||
|
22
|
22
66R-42171-00-00 Bushing |
66R-42171-00-00 |
from US $2.66 |
||
|
23
|
23
90201-43M00-00 Washer, Plate |
90201-43M00-00 |
from US $2.32 |
||
|
24
|
24
90206-43M22-00 Washer, Wave |
90206-43M22-00 |
from US $9.07 |
||
|
25
|
25
90202-43M57-00 Washer, Plate |
90202-43M57-00 |
from US $1.66 |
||
|
26
|
26
90386-40M99-00 Bush |
90386-40M99-00 |
from US $3.12 |
||
|
27
|
27
66M-42131-01-00 Cover, Handle Steering |
66M-42131-01-00 |
US $6.94 |
||
| replacement | |||||
|
27
|
27
65W-42131-01-00 Cover, Handle Steering |
65W-42131-01-00 |
from US $6.94 |
||
|
28
|
28
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.95 |
||
|
29
|
29
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
30
|
30
66R-44111-00-4D Handle, Gear Shift |
66R-44111-00-4D |
US $22.10 |
||
| replacement | |||||
|
30
|
30
66R-44111-00-8D Handle, Gear Shift |
66R-44111-00-8D |
from US $22.10 |
||
|
31
|
31
66R-44173-00-00 Lever, Shift Control |
66R-44173-00-00 |
from US $10.63 |
||
|
32
|
32
90159-06M18-00 Screw, With Washer |
90159-06M18-00 |
from US $2.55 |
||
|
33
|
33
66R-42129-00-00 Bushing, Rubber |
66R-42129-00-00 |
from US $12.61 |
||
|
34
|
34
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
34
|
34
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
35
|
35
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
36
|
36
90386-26MA3-00 Bush |
90386-26MA3-00 |
from US $7.51 |
||
|
37
|
37
90206-26M25-00 Washer, Wave |
90206-26M25-00 |
from US $13.32 |
||
|
38
|
38
90202-26M59-00 Washer, Plate |
90202-26M59-00 |
from US $3.54 |
||
|
39
|
39
68T-44113-01-00 Cam Plate, Handle |
68T-44113-01-00 |
US $29.04 |
||
| replacement | |||||
|
39
|
39
6DR-44113-A0-00 Cam Plate, Handle |
6DR-44113-A0-00 |
from US $29.04 |
||
|
40
|
40
66R-44116-00-00 Spring |
66R-44116-00-00 |
from US $4.39 |
||
|
41
|
41
66R-44118-00-00 Bracket |
66R-44118-00-00 |
from US $5.24 |
||
|
42
|
42
66R-48538-00-00 Clamp, Cable 1 |
66R-48538-00-00 |
from US $4.82 |
||
|
43
|
43
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.25 |
||
|
44
|
44
68T-48321-00-00 Cable |
68T-48321-00-00 |
US $51.81 |
||
| replacement | |||||
|
44
|
44
68T-48321-01-00 Cable |
68T-48321-01-00 |
from US $51.81 |
||
|
45
|
45
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
46
|
46
66R-44114-00-00 Stopper |
66R-44114-00-00 |
from US $6.94 |
||
|
47
|
47
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
47
|
47
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
48
|
48
66R-48344-00-00 Cable End, Remote Control |
66R-48344-00-00 |
US $7.65 |
||
|
49
|
49
90201-06M62-00 Washer, Plate |
90201-06M62-00 |
from US $2.55 |
||
|
50
|
50
90170-05M38-00 Nut |
90170-05M38-00 |
from US $1.98 |
||
|
51
|
51
91490-20012-00 Pin. Cotter |
91490-20012-00 |
US $1.13 |
||
| replacement | |||||
|
51
|
51
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
52
|
52
68T-42121-10-4D Bracket |
68T-42121-10-4D |
US $60.10 |
||
| replacement | |||||
|
52
|
52
6AU-42121-10-8D Bracket |
6AU-42121-10-8D |
from US $51.23 |
||
|
53
|
53
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
53
|
53
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
54
|
54
90179-10004-00
Nut
|
90179-10004-00 |
— | ||
