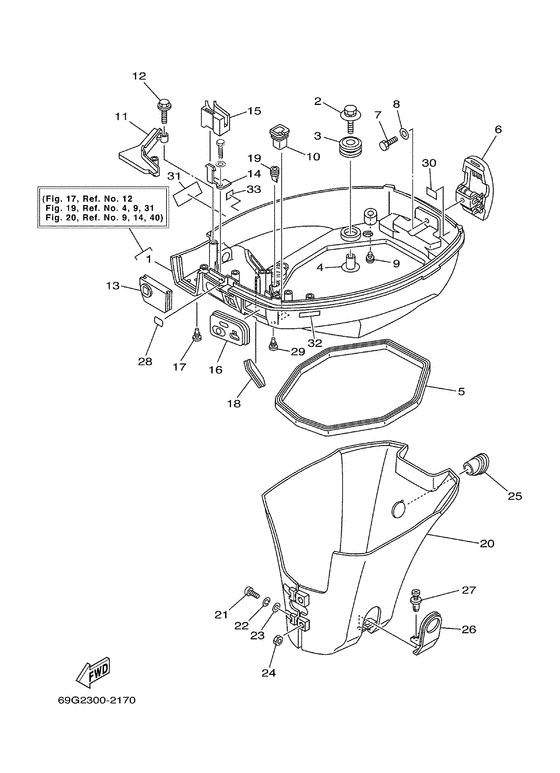

Bottom cowling Diagram Yamaha FT8 M(E)H(P)S/L/XL
- Year
- 2002
- Model
- FT8D
- Model code
- 69G
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (160)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68T-42710-00-4D
Bottom Cowling Assy
|
68T-42710-00-4D |
— | ||
|
02
|
02
68F-85119-00-00 Bolt |
68F-85119-00-00 |
from US $3.54 |
||
|
03
|
03
90480-21M82-00 Grommet |
90480-21M82-00 |
from US $3.83 |
||
|
04
|
04
68F-86129-00-00 Collar |
68F-86129-00-00 |
US $9.49 |
||
| replacement | |||||
|
04
|
04
90387-06176-00 Collar |
90387-06176-00 |
from US $4.68 |
||
|
05
|
05
68T-42716-00-00 Rubber, Seal 1 |
68T-42716-00-00 |
US $13.46 |
||
| replacement | |||||
|
05
|
05
68T-42716-10-00 Rubber, Seal 1 |
68T-42716-10-00 |
from US $13.46 |
||
|
06
|
06
68T-42801-00-00 Cowling Clamp Comp |
68T-42801-00-00 |
from US $39.38 |
||
|
07
|
07
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
07
|
07
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
08
|
08
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
09
|
09
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
10
|
10
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
11
|
11
68T-42738-00-4D Plate, Fitting |
68T-42738-00-4D |
US $37.03 |
||
| replacement | |||||
|
11
|
11
68T-42738-00-8D Plate, Fitting |
68T-42738-00-8D |
US $49.41 |
||
|
12
|
12
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
19
|
19
65W-42717-00-00 Rubber, Seal 2 |
65W-42717-00-00 |
from US $3.97 |
||
|
20
|
20
68T-42741-00-00 Apron |
68T-42741-00-00 |
from US $35.78 |
||
| replacement | |||||
|
20
|
20
60R-G2741-00-00 Apron |
60R-G2741-00-00 |
from US $45.59 |
||
|
21
|
21
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
22
|
22
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
25
|
25
68T-42717-00-00 Rubber, Seal 2 |
68T-42717-00-00 |
US $3.68 |
||
|
26
|
26
68T-42771-00-00 Apron |
68T-42771-00-00 |
from US $5.10 |
||
|
27
|
27
90338-06M20-00 Plug |
90338-06M20-00 |
from US $3.12 |
||
|
28
|
28
65W-84342-00-00 Seat, Emblem |
65W-84342-00-00 |
from US $5.24 |
||
|
30
|
30
6H8-42791-10-00
Mark 1
|
6H8-42791-10-00 |
— | ||
|
31
|
31
62Y-13444-50-00 Mark |
62Y-13444-50-00 |
US $3.82 |
||
|
32
|
32
6E3-8257H-00-00 Plate, Mark |
6E3-8257H-00-00 |
from US $4.96 |
||
|
33
|
33
6A1-28176-00-00 Label, Caution |
6A1-28176-00-00 |
US $1.40 |
||
