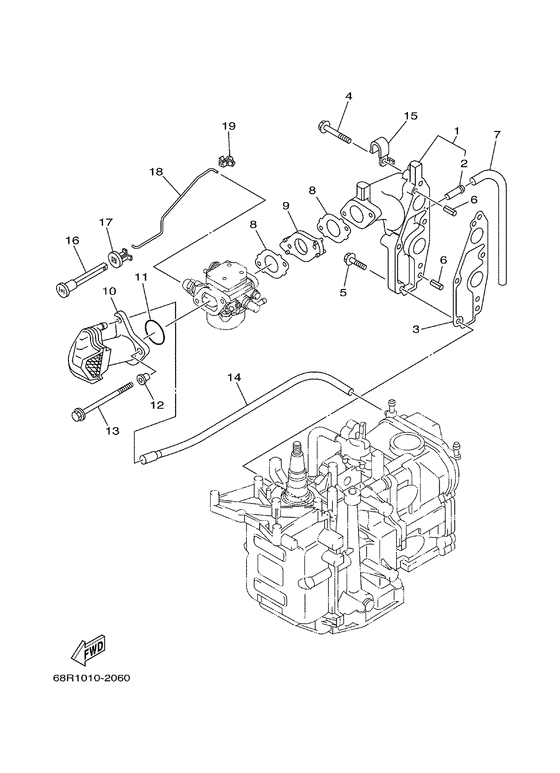

Intake Diagram Yamaha FT8 M(E)H(P)S/L/XL
- Year
- 2002
- Model
- FT8D
- Model code
- 69G
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (160)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02
|
02
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
02
|
02
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
02
|
02
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
03
|
03
68T-13645-00-00 Gasket, Manifold 1 |
68T-13645-00-00 |
from US $8.78 |
||
|
04
|
04
90119-06MA5-00 Bolt, With Washer |
90119-06MA5-00 |
from US $2.13 |
||
|
05
|
05
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.34 |
||
|
06
|
06
91690-50014-00 Pin, Spring |
91690-50014-00 |
from US $1.56 |
||
|
07
|
07
90445-09074-00 Hose (L420) |
90445-09074-00 |
from US $6.52 |
||
| replacements | |||||
|
07
|
07
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
07
|
07
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
08
|
08
68T-13646-A0-00 Gasket, Manifold 2 |
68T-13646-A0-00 |
from US $2.13 |
||
|
09
|
09
68T-14271-00-00 Insulator |
68T-14271-00-00 |
from US $5.81 |
||
|
10
|
10
68T-14440-00-00
Silencer Assy, Intake
|
68T-14440-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6AU-14440-00-00 Silencer Assy, Intake |
6AU-14440-00-00 |
from US $26.92 |
||
|
11
|
11
93210-31MJ5-00 O-Ring |
93210-31MJ5-00 |
from US $1.84 |
||
|
12
|
12
90387-06M70-00 Collar |
90387-06M70-00 |
from US $4.39 |
||
|
13
|
13
975-95065-85-00
Bolt, With Washer
|
975-95065-85-00 |
— | ||
| replacement | |||||
|
13
|
13
901-05061-88-00 Bolt, Flange |
901-05061-88-00 |
from US $8.93 |
||
|
14
|
14
68T-12483-00-00 Pipe 3 |
68T-12483-00-00 |
from US $4.96 |
||
|
15
|
15
90465-08M99-00 Clamp |
90465-08M99-00 |
from US $8.78 |
||
|
16
|
16
6H4-41271-01-00
Knob, Choke
|
6H4-41271-01-00 |
— | ||
| replacement | |||||
|
16
|
16
6H4-41271-02-00 Knob, Choke |
6H4-41271-02-00 |
from US $5.95 |
||
|
17
|
17
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $2.98 |
||
|
18
|
18
68T-41256-00-00 Rod, Choke 1 |
68T-41256-00-00 |
from US $11.23 |
||
|
19
|
19
6J8-41262-00-00 Joint, Choke Lever |
6J8-41262-00-00 |
from US $1.66 |
||
