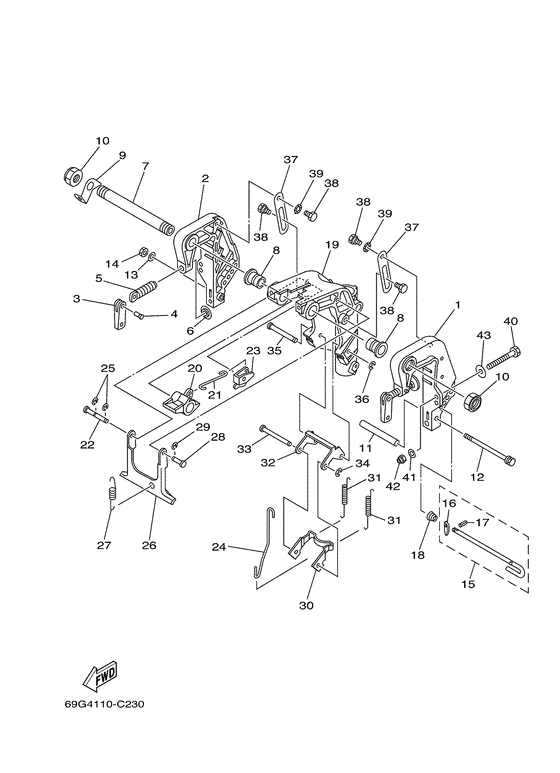

Bracket 1 Diagram Yamaha FT8 M(E)H(P)S/L/XL
- Year
- 2007
- Model
- FT8D
- Model code
- 60S
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
60R-G3111-00-4D Bracket, Clamp 1 |
60R-G3111-00-4D |
US $165.79 |
||
| replacement | |||||
|
01
|
01
60R-G3111-01-4D Bracket, Clamp 1 |
60R-G3111-01-4D |
from US $165.79 |
||
|
02
|
02
60R-G3112-00-4D Bracket, Clamp 2 |
60R-G3112-00-4D |
US $165.79 |
||
| replacement | |||||
|
02
|
02
60R-G3112-01-4D Bracket, Clamp 2 |
60R-G3112-01-4D |
from US $130.72 |
||
|
03
|
03
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
| replacement | |||||
|
03
|
03
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
04
|
04
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
05
|
05
6E7-43116-00-00
Screw, Transom Clamp
|
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
05
|
05
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $27.77 |
||
|
05
|
05
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $9.26 |
||
|
06
|
06
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
07
|
07
63V-43131-10-00 Bolt, Clamp BracketFor ride guide |
63V-43131-10-00 |
from US $53.88 |
||
|
08
|
08
90386-22MA4-00 Bush |
90386-22MA4-00 |
from US $8.36 |
||
|
09
|
09
66R-43113-00-00 Plate, Clamp Bracket |
66R-43113-00-00 |
from US $7.23 |
||
|
10
|
10
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
11
|
11
90387-06M13-00 Collar |
90387-06M13-00 |
from US $10.20 |
||
|
12
|
12
90101-06M18-00 Bolt |
90101-06M18-00 |
from US $5.81 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
14
|
14
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
15
|
15
6L2-43160-01-00 Tilt Rod Assy |
6L2-43160-01-00 |
from US $17.54 |
||
|
16
|
16
689-43165-00-00 Plate, Tilt Lock |
689-43165-00-00 |
from US $5.95 |
||
| replacement | |||||
|
16
|
16
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
17
|
17
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
18
|
18
90502-10M07-00 Spring, Conical |
90502-10M07-00 |
from US $1.66 |
||
|
19
|
19
60R-G3311-10-4D Bracket, Swivel 1 |
60R-G3311-10-4D |
from US $280.46 |
||
|
20
|
20
60R-G3631-00-00 Lever, Tilt |
60R-G3631-00-00 |
from US $8.22 |
||
|
21
|
21
60R-G3616-00-00 Rod, Tilt Lock |
60R-G3616-00-00 |
US $5.98 |
||
|
22
|
22
68T-43646-00-00 Shaft, Lever |
68T-43646-00-00 |
from US $5.95 |
||
|
23
|
23
68T-43641-00-00 Lever, Tilt |
68T-43641-00-00 |
from US $9.07 |
||
|
24
|
24
68T-43617-00-00 Rod, Tilt Lock |
68T-43617-00-00 |
from US $9.07 |
||
|
25
|
25
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
26
|
26
68T-43350-00-00 Receiver Assy |
68T-43350-00-00 |
from US $59.44 |
||
|
27
|
27
90506-20005-00 Spring, Tension |
90506-20005-00 |
from US $10.34 |
||
|
28
|
28
63V-43191-00-00 Shaft, Stopper |
63V-43191-00-00 |
from US $5.81 |
||
|
29
|
29
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
30
|
30
68T-43614-00-00 Plate, Tilt Lock |
68T-43614-00-00 |
from US $31.88 |
||
|
31
|
31
90506-23803-00 Spring, Tension |
90506-23803-00 |
US $10.77 |
||
|
32
|
32
68T-43615-00-00 Plate, Tilt Lock |
68T-43615-00-00 |
from US $24.91 |
||
|
33
|
33
68T-43611-00-00 Shaft, Tilt Lock |
68T-43611-00-00 |
from US $5.95 |
||
|
34
|
34
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
35
|
35
68T-43659-00-00 Shaft, Reverse Lock |
68T-43659-00-00 |
from US $6.38 |
||
|
36
|
36
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
37
|
37
68T-43627-00-00 Stopper |
68T-43627-00-00 |
from US $7.65 |
||
|
38
|
38
90109-06M84-00 Bolt |
90109-06M84-00 |
from US $4.53 |
||
|
39
|
39
90206-10M24-00 Washer, Wave |
90206-10M24-00 |
from US $4.11 |
||
|
40
|
40
90101-08M88-00 Bolt |
90101-08M88-00 |
from US $10.20 |
||
|
41
|
41
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
42
|
42
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
42
|
42
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
43
|
43
90201-08MA4-00 Washer, Plate |
90201-08MA4-00 |
from US $7.37 |
||
