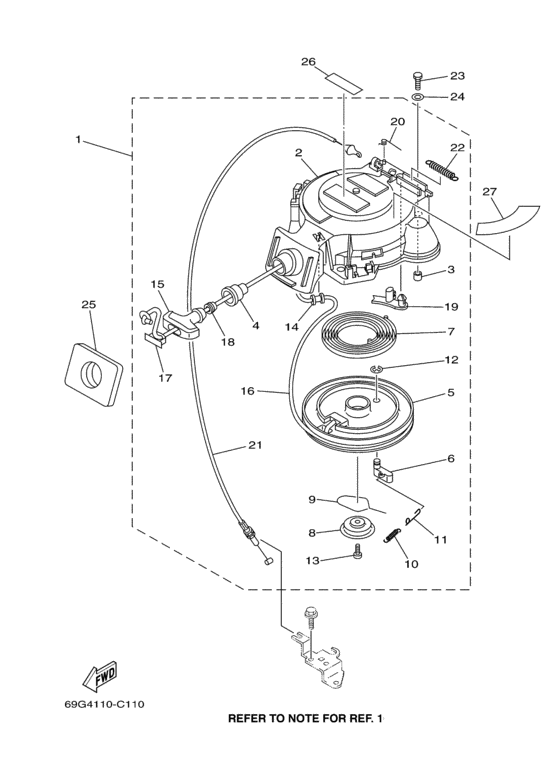

Starter Diagram Yamaha FT8 PS/L/XH
- Year
- 2004
- Model
- T8
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68T-15710-01-00 Starter Assy |
68T-15710-01-00 |
US $266.65 |
||
| replacements | |||||
|
1
|
1
68T-15710-13-00 Starter Assy |
68T-15710-13-00 |
US $266.65 |
||
|
1
|
1
68T-15710-14-00 Starter Assy |
68T-15710-14-00 |
from US $266.65 |
||
|
2
|
2
68T-15711-01-00 Case, Starter |
68T-15711-01-00 |
US $108.35 |
||
|
3
|
3
67D-15764-00-00 Collar 1 |
67D-15764-00-00 |
from US $1.70 |
||
|
4
|
4
68T-15795-00-00 Guide, Rope |
68T-15795-00-00 |
from US $18.74 |
||
|
5
|
5
63V-15714-00-00 Drum, Sheave |
63V-15714-00-00 |
from US $78.06 |
||
|
6
|
6
63V-15741-00-00 Pawl, Drive |
63V-15741-00-00 |
from US $4.96 |
||
|
7
|
7
63V-15713-00-00 Spring, Starter |
63V-15713-00-00 |
from US $42.97 |
||
|
8
|
8
68T-15716-00-00 Plate, Drive |
68T-15716-00-00 |
from US $8.93 |
||
|
9
|
9
63V-15705-01-00 Spring, Drive Pawl |
63V-15705-01-00 |
from US $5.67 |
||
| replacement | |||||
|
9
|
9
63V-15705-10-00
Spring, Drive Pawl
|
63V-15705-10-00 |
— | ||
|
10
|
10
63V-15767-01-00 Spring |
63V-15767-01-00 |
from US $2.98 |
||
|
11
|
11
68T-15784-00-00 Spring, Return |
68T-15784-00-00 |
from US $3.26 |
||
|
12
|
12
63V-15744-00-00 Circlip |
63V-15744-00-00 |
from US $1.34 |
||
|
13
|
13
68T-15793-00-00 Screw |
68T-15793-00-00 |
from US $1.70 |
||
|
14
|
14
68T-15764-00-00 Collar 1 |
68T-15764-00-00 |
from US $2.13 |
||
|
15
|
15
6G1-15755-00-00 Handle, Starter |
6G1-15755-00-00 |
from US $8.60 |
||
|
16
|
16
908-90443-73-00 Rope, Starter |
908-90443-73-00 |
US $104.70 |
||
| replacement | |||||
|
16
|
16
907-90481-93-00 Rope, Start 50M O/m |
907-90481-93-00 |
from US $120.20 |
||
|
17
|
17
6G1-15779-00-00 Cover |
6G1-15779-00-00 |
from US $3.68 |
||
|
18
|
18
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
18
|
18
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
19
|
19
66T-15794-00-00 Stopper |
66T-15794-00-00 |
from US $8.87 |
||
|
20
|
20
66T-15734-00-00 Spring, Return |
66T-15734-00-00 |
from US $4.39 |
||
|
21
|
21
68T-15770-00-00 Cable Comp, Starter Stop |
68T-15770-00-00 |
from US $45.18 |
||
|
22
|
22
66T-15731-00-00 Spring, Return |
66T-15731-00-00 |
from US $3.98 |
||
|
23
|
23
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
68T-15762-00-00 Seal, Rubber 2 |
68T-15762-00-00 |
from US $13.46 |
||
|
26
|
26
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
|
27
|
27
68T-85711-40-00 Mark, Caution |
68T-85711-40-00 |
from US $6.71 |
||
