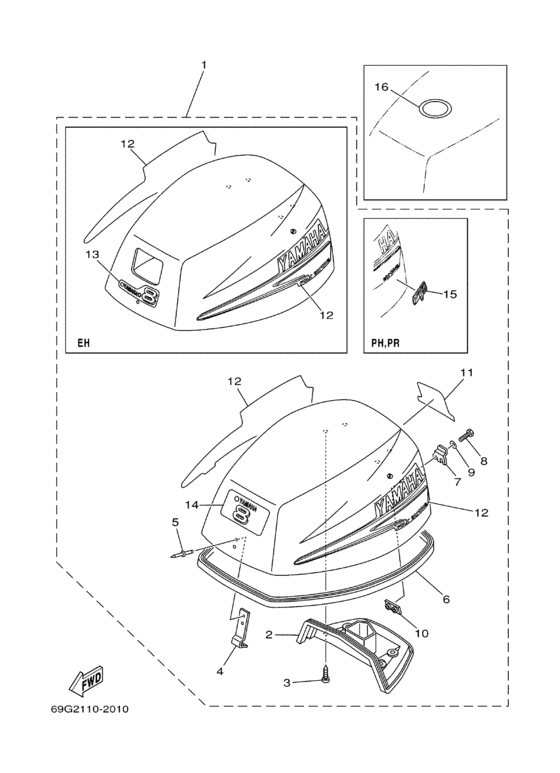

Top cowling Diagram Yamaha FT8 PS/L/XH
- Year
- 2004
- Model
- T8
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69G-42610-20-4D
Top Cowling Assy
|
69G-42610-20-4D |
— | ||
| replacement | |||||
|
1
|
1
69G-42610-20-00
Top Cowling Assy
|
69G-42610-20-00 |
— | ||
|
1
|
1
69G-42610-A0-4D
Top Cowling Assy
|
69G-42610-A0-4D |
— | ||
| replacement | |||||
|
1
|
1
69G-42610-A0-00
BRACKET, SWIVEL 1
|
69G-42610-A0-00 |
— | ||
|
1
|
1
69G-42610-B0-4D
Top Cowling Assy
|
69G-42610-B0-4D |
— | ||
| replacements | |||||
|
1
|
1
69G-42610-B0-00
element
|
69G-42610-B0-00 |
— | ||
|
1
|
1
69G-4261A-09-00
Top Cowling Comple W/o Graphic
|
69G-4261A-09-00 |
— | ||
|
1
|
1
69G-42610-V0-NA
Top Cowling Assy
|
69G-42610-V0-NA |
— | ||
| replacement | |||||
|
1
|
1
69G-42610-V0-00
POWER TILT ASSY
|
69G-42610-V0-00 |
— | ||
|
2
|
2
68T-42613-00-00 Molding, Air Duct |
68T-42613-00-00 |
US $12.05 |
||
| replacements | |||||
|
2
|
2
60R-G2613-00-00
Molding, Air Duct
|
60R-G2613-00-00 |
— | ||
|
2
|
2
6AU-42613-00-00 Molding, Air Duct |
6AU-42613-00-00 |
from US $11.02 |
||
|
3
|
3
97780-60516-00 Screw, Tapping |
97780-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
3
|
3
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
4
|
4
6G1-42651-02-00 Hook |
6G1-42651-02-00 |
from US $8.78 |
||
| replacement | |||||
|
4
|
4
6N0-G2651-00-00 Hook 1 |
6N0-G2651-00-00 |
US $11.48 |
||
|
5
|
5
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
6
|
6
68T-42615-00-00 Seal |
68T-42615-00-00 |
from US $40.48 |
||
|
7
|
7
68T-42652-00-00 Hook |
68T-42652-00-00 |
from US $8.36 |
||
|
8
|
8
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
9
|
9
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
68T-42649-00-00 Holder, Clamp Band |
68T-42649-00-00 |
from US $5.24 |
||
|
11
|
11
69G-42678-20-00 Graphic, Rear |
69G-42678-20-00 |
US $3.40 |
||
| replacements | |||||
|
11
|
11
6N0-42678-40-00 Graphic, Rear |
6N0-42678-40-00 |
US $3.40 |
||
|
11
|
11
6N0-42678-41-00 Graphic, Rear |
6N0-42678-41-00 |
from US $3.40 |
||
|
11
|
11
69G-42678-V0-00 Graphic, Rear |
69G-42678-V0-00 |
from US $3.40 |
||
|
12
|
12
68T-W0070-20-00 Graphic Set |
68T-W0070-20-00 |
US $82.10 |
||
|
12
|
12
68T-W0070-60-00 Graphic Set |
68T-W0070-60-00 |
US $103.07 |
||
|
12
|
12
69G-W0070-V0-00 Graphic Set |
69G-W0070-V0-00 |
US $74.87 |
||
|
13
|
13
68T-42677-00-00 Graphic, Front |
68T-42677-00-00 |
from US $10.42 |
||
|
14
|
14
69G-42686-10-00 Emblem, Front |
69G-42686-10-00 |
US $37.60 |
||
|
14
|
14
63V-42677-V0-00
Graphic, Front
|
63V-42677-V0-00 |
— | ||
|
15
|
15
69A-42675-00-00 Graphic, Side 1 |
69A-42675-00-00 |
from US $12.33 |
||
|
16
|
16
67F-13434-02-00 Label, Caution |
67F-13434-02-00 |
US $7.78 |
||
| replacement | |||||
|
16
|
16
67F-13434-20-00
Label, Caution
|
67F-13434-20-00 |
— | ||
