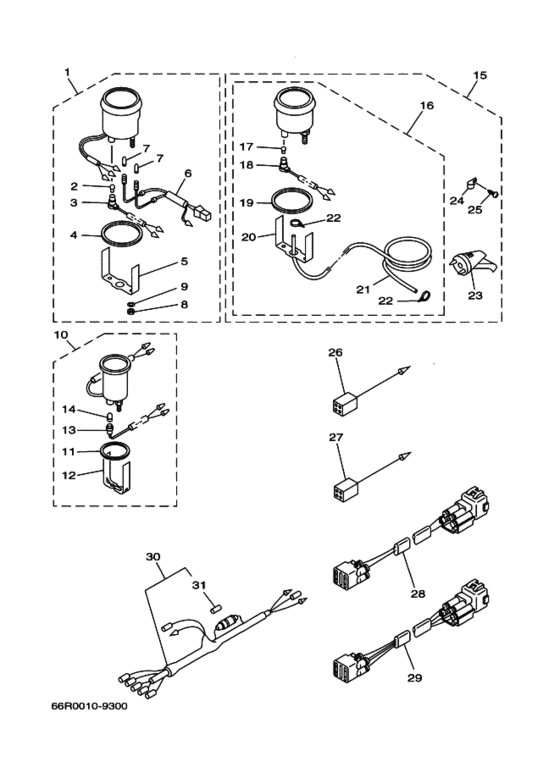

Meter Diagram Yamaha FT9.9 M(E/W)HS/L/XL
- Year
- 1999
- Model
- FT9.9D
- Model code
- 66R
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Japan (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-83540-20-00 Fourstroke 50 Tachometerタコメータアセンブリ; |
6Y5-83540-20-00 |
US $451.48 |
||
|
2
|
2
6Y5-83517-00-00 Bulb (T10, 12V-17W)．．バルブ; １２Ｖ−１７Ｗ， Ｔ１０ |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
3GM-83517-00-00 Bulb (12V-1.7W)．．バルブ; １２Ｖ−１７Ｗ， Ｔ１０ |
3GM-83517-00-00 |
from US $3.26 |
||
|
3
|
3
6Y5-83536-10-00 Socket, Meter．ソケツト，メータ; |
6Y5-83536-10-00 |
from US $10.34 |
||
| replacement | |||||
|
3
|
3
688-83536-00-00 Socket, Meter．ソケツト，メータ; |
688-83536-00-00 |
from US $11.76 |
||
|
4
|
4
6Y5-83523-00-00 Damper．ダンパ; |
6Y5-83523-00-00 |
from US $3.54 |
||
|
5
|
5
6Y5-83514-00-00 Plate, Fitting．プレート，フイツテイング; |
6Y5-83514-00-00 |
from US $11.76 |
||
|
6
|
6
6Y5-83509-10-00 Socket Cord Assy．ソケツトコードアセンブリ; |
6Y5-83509-10-00 |
from US $33.29 |
||
|
7
|
7
6Y5-83518-00-00 Bulb (12V-1.7W T6.5)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
7
|
7
3FV-83517-00-00 Bulb (12V-1.7W)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
3FV-83517-00-00 |
from US $4.99 |
||
|
8
|
8
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
9
|
9
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6Y5-83504-01-00 Hour Meter Assyアワーメータアセンフリ; |
6Y5-83504-01-00 |
from US $247.05 |
||
| replacements | |||||
|
10
|
10
6Y5-83504-11-00 Hour Meterアワーメータアセンフリ; |
6Y5-83504-11-00 |
US $313.30 |
||
|
10
|
10
6Y5-83504-13-00 Hour Meter Assyアワーメータアセンフリ; |
6Y5-83504-13-00 |
US $396.90 |
||
|
11
|
11
688-83664-00-00 Damper．ダンパ; |
688-83664-00-00 |
from US $3.68 |
||
|
12
|
12
6Y5-83577-00-00 Plate, Fitting．プレート，フイツテイング; |
6Y5-83577-00-00 |
from US $8.50 |
||
|
13
|
13
6Y5-83536-00-00 Socket, Meter．ソケツト，メータ; |
6Y5-83536-00-00 |
from US $10.34 |
||
|
14
|
14
6Y5-83518-00-00 Bulb (12V-1.7W T6.5)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
14
|
14
3FV-83517-00-00 Bulb (12V-1.7W)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
3FV-83517-00-00 |
from US $4.99 |
||
|
15
|
15
6Y5-W0081-40-00 Speedometer Kitスピードメータキツト; |
6Y5-W0081-40-00 |
US $396.39 |
||
|
16
|
16
6Y5-83510-30-00 Speedometer Assy．スピードメータアセンブリ; |
6Y5-83510-30-00 |
US $357.83 |
||
| replacement | |||||
|
16
|
16
6Y5-83510-31-00 Speedometer Assy．スピードメータアセンブリ; |
6Y5-83510-31-00 |
US $472.12 |
||
|
17
|
17
6Y5-83517-00-00 Bulb (T10, 12V-17W)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ１０ |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
17
|
17
3GM-83517-00-00 Bulb (12V-1.7W)．．．バルブ ; １２Ｖ−１７Ｗ， Ｔ１０ |
3GM-83517-00-00 |
from US $3.26 |
||
|
18
|
18
6Y5-83536-10-00 Socket, Meter．．ソケツト，メータ; |
6Y5-83536-10-00 |
from US $10.34 |
||
| replacement | |||||
|
18
|
18
688-83536-00-00 Socket, Meter．．ソケツト，メータ; |
688-83536-00-00 |
from US $11.76 |
||
|
19
|
19
6Y5-83523-00-00 Damper．．ダンパ; |
6Y5-83523-00-00 |
from US $3.54 |
||
|
20
|
20
6Y5-83514-00-00 Plate, Fitting．．プレート，フイツテイング; |
6Y5-83514-00-00 |
from US $11.76 |
||
|
21
|
21
688-83557-00-00 Tube．．チユーブ; |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
21
|
21
6Y5-83557-10-00 Tube (8M)．．チユーブ; |
6Y5-83557-10-00 |
from US $15.19 |
||
|
22
|
22
904-6511M-10-00
Clamp
．．クランプ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 Band．．クランプ; |
80L-26397-00-00 |
from US $1.17 |
||
|
22
|
22
904-65100-98-00 Clamp．．クランプ; |
904-65100-98-00 |
from US $1.39 |
||
|
23
|
23
688-83556-01-00 Sender．センダ; |
688-83556-01-00 |
US $153.36 |
||
| replacement | |||||
|
23
|
23
688-83556-00-00 Sender (With Hose L:6M/d:4Mm)．センダ; |
688-83556-00-00 |
from US $88.18 |
||
|
24
|
24
90601-31402-00 Clip, Nylon 14．クリツプ，ナイロン １４; |
90601-31402-00 |
from US $4.39 |
||
|
25
|
25
97780-40116-00 Screw, Tapping．スクリユ，タツピング; |
97780-40116-00 |
from US $2.55 |
||
|
26
|
26
6Y5-82117-00-00 Wire, Lead (Black) (L300)ワイヤ，リード ; ブラツク |
6Y5-82117-00-00 |
from US $6.52 |
||
|
27
|
27
6Y5-82521-00-00 Wire, Lead (Yellow) (L300)ワイヤ，リード ; イエロー |
6Y5-82521-00-00 |
from US $6.52 |
||
|
28
|
28
6R3-82521-70-00 Wire, Lead (L=7M)ワイヤ，リード; ７Ｍ |
6R3-82521-70-00 |
from US $71.15 |
||
|
29
|
29
6R3-82553-70-00 Extension, Wire Lead (L=7.0M)エクステンシヨン，ワイヤリード; ４Ｐ，７Ｍ |
6R3-82553-70-00 |
from US $108.59 |
||
|
30
|
30
6Y5-83553-00-00 Wire, Lead (L=2.5M)ワイヤ，リード; |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
30
|
30
6Y5-83553-N0-00 Wire, Lead (L=2.5M)ワイヤ，リード; |
6Y5-83553-N0-00 |
US $88.98 |
||
|
31
|
31
1E6-82151-00-00 Fuse (10A)．フユーズ ; １０Ａ |
1E6-82151-00-00 |
from US $2.02 |
||
