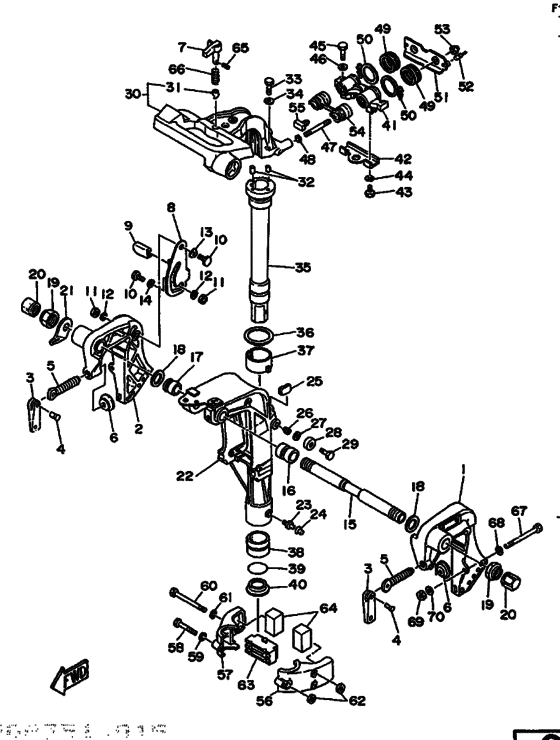

Bracket 1 Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1993
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-43111-03-EL
Bracket, Clamp
|
6G8-43111-03-EL |
— | ||
| replacement | |||||
|
1
|
1
6G8-43111-04-EL
Bracket, Clamp
|
6G8-43111-04-EL |
— | ||
|
2
|
2
6G8-43112-04-EL
Bracket, Clamp
|
6G8-43112-04-EL |
— | ||
|
3
|
3
616-43118-00-EL Handle, Transom Clip |
616-43118-00-EL |
US $13.60 |
||
| replacement | |||||
|
3
|
3
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
4
|
4
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
5
|
5
6E7-43116-00-00
Screw, Transom Clamp
|
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
5
|
5
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $30.79 |
||
|
5
|
5
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $15.16 |
||
|
6
|
6
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
7
|
7
6G8-42561-00-00 Knob, Steering Lock |
6G8-42561-00-00 |
US $15.35 |
||
|
8
|
8
6G8-43181-00-00 Lever, Tilt Stop 1 |
6G8-43181-00-00 |
from US $24.37 |
||
|
9
|
9
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
10
|
10
90109-06M25-00 Bolt |
90109-06M25-00 |
from US $11.76 |
||
|
11
|
11
95680-06100-00 Nut, U |
95680-06100-00 |
from US $6.09 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
90206-10M15-00 Washer, Wave |
90206-10M15-00 |
from US $4.96 |
||
|
15
|
15
682-43339-01-00 Washer |
682-43339-01-00 |
from US $8.64 |
||
|
16
|
16
90386-22M92-00 Bush |
90386-22M92-00 |
from US $7.23 |
||
|
17
|
17
90386-22M93-00 Bush |
90386-22M93-00 |
from US $7.23 |
||
|
18
|
18
90201-22M28-00
Washer, Plate
|
90201-22M28-00 |
— | ||
|
19
|
19
90185-22M43-00
Nut, Self-Locking
|
90185-22M43-00 |
— | ||
|
20
|
20
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
20
|
20
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
21
|
21
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
22
|
22
6G9-43311-03-EL
Bracket, Swivel
UR |
6G9-43311-03-EL |
— | ||
|
22
|
22
6G8-43311-14-EL
Bracket, Swivel 1
|
6G8-43311-14-EL |
— | ||
|
23
|
23
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
24
|
24
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
25
|
25
6G8-42528-00-00 Plate, Friction |
6G8-42528-00-00 |
US $3.52 |
||
|
26
|
26
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
27
|
27
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
28
|
28
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
28
|
28
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
29
|
29
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
29
|
29
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
30
|
30
6G8-42511-02-EL
Bracket, Steering
|
6G8-42511-02-EL |
— | ||
|
31
|
31
6G8-42534-00-00 Pin, Dowel |
6G8-42534-00-00 |
US $4.26 |
||
|
32
|
32
93605-15065-00 Pin, Dowel |
93605-15065-00 |
from US $3.12 |
||
|
33
|
33
97315-06030-00 Bolt |
97315-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
33
|
33
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
6G9-42521-00-94
Shaft, Steering Pivot
UR |
6G9-42521-00-94 |
— | ||
|
35
|
35
6G8-42521-10-94 Shaft, Steering PivotUR |
6G8-42521-10-94 |
from US $119.37 |
||
|
36
|
36
90209-45M09-00 Washer |
90209-45M09-00 |
US $2.20 |
||
|
37
|
37
6G8-42537-00-00 Bushing, Pivot Shaft |
6G8-42537-00-00 |
from US $22.28 |
||
|
38
|
38
90386-37M47-00 Bush |
90386-37M47-00 |
US $6.02 |
||
|
39
|
39
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
40
|
40
90386-37M48-00 Bush |
90386-37M48-00 |
US $3.09 |
||
|
41
|
41
6G8-44517-00-94
Mount Rubber
|
6G8-44517-00-94 |
— | ||
| replacement | |||||
|
41
|
41
6G8-44517-00-00
Mount Rubber
|
6G8-44517-00-00 |
— | ||
|
42
|
42
6G8-44526-00-00 Plate |
6G8-44526-00-00 |
from US $8.08 |
||
|
43
|
43
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
43
|
43
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
45
|
45
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
45
|
45
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
46
|
46
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
47
|
47
90116-08M28-00 Bolt, Stud |
90116-08M28-00 |
from US $5.29 |
||
|
48
|
48
90201-08M12-00 Washer, Plate |
90201-08M12-00 |
from US $3.26 |
||
|
49
|
49
6G8-44522-00-00 Seal |
6G8-44522-00-00 |
US $4.79 |
||
|
50
|
50
90460-38M06-00 Clamp, Hose |
90460-38M06-00 |
from US $7.48 |
||
|
51
|
51
6G8-44518-00-00 Bracket Comp |
6G8-44518-00-00 |
US $3.37 |
||
|
52
|
52
6G8-44533-00-00 Damper, Upper Mount Rubber |
6G8-44533-00-00 |
US $1.40 |
||
|
53
|
53
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
54
|
54
6G8-44521-00-00 Seal |
6G8-44521-00-00 |
US $6.17 |
||
|
55
|
55
6G8-44532-00-00 Stopper, Upper Mount |
6G8-44532-00-00 |
from US $2.41 |
||
|
56
|
56
6G8-44552-01-EL
Housing, Lower Mount Rubber
|
6G8-44552-01-EL |
— | ||
| replacement | |||||
|
56
|
56
6G8-44552-02-EL
Housing, Lower Mount Rubber
|
6G8-44552-02-EL |
— | ||
|
57
|
57
6G8-44552-02-EL
Housing, Lower Mount Rubber
|
6G8-44552-02-EL |
— | ||
|
58
|
58
973-95060-45-00
Bolt, Hexagon
|
973-95060-45-00 |
— | ||
| replacement | |||||
|
58
|
58
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
59
|
59
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
60
|
60
97395-06095-00 Bolt |
97395-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
60
|
60
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
|
60
|
60
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
61
|
61
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
62
|
62
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
62
|
62
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
63
|
63
6G8-44557-00-00 Mount Damper, Lower Front |
6G8-44557-00-00 |
US $5.73 |
||
|
64
|
64
682-44557-00-00 Mount Damper, Lower Front |
682-44557-00-00 |
from US $11.76 |
||
|
65
|
65
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
66
|
66
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
67
|
67
90101-08M88-00 Bolt |
90101-08M88-00 |
from US $10.20 |
||
|
68
|
68
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
69
|
69
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
70
|
70
90201-08M44-00
Washer, Plate
|
90201-08M44-00 |
— | ||
