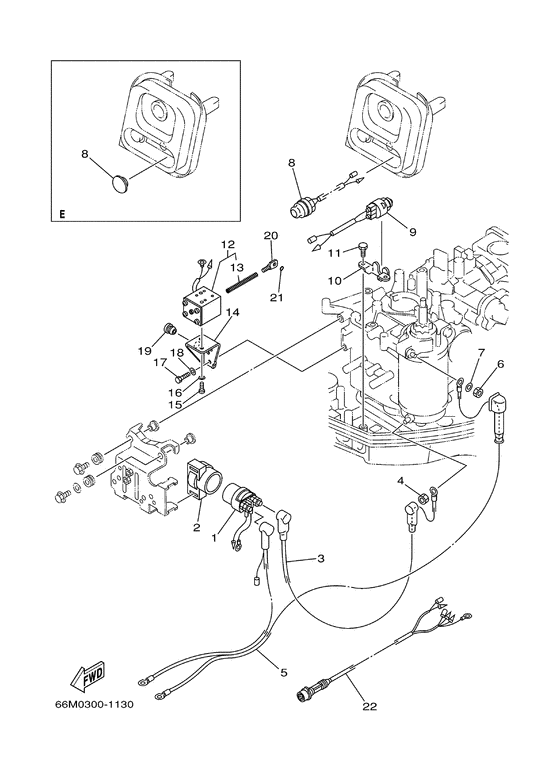

Electrical 2 Diagram Yamaha FT9.9 M(E/W)HS/L/XL
- Year
- 2001
- Model
- FT9.9D
- Model code
- 66R
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
02
|
02
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
03
|
03
66M-82117-00-00 Wire, Lead |
66M-82117-00-00 |
from US $19.84 |
||
|
04
|
04
65W-8182B-00-00 Nut, Special |
65W-8182B-00-00 |
from US $3.54 |
||
|
05
|
05
66R-82105-00-00 Battery Cable |
66R-82105-00-00 |
US $196.19 |
||
| replacement | |||||
|
05
|
05
66R-82105-01-00 Battery Cable |
66R-82105-01-00 |
US $285.62 |
||
|
06
|
06
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
07
|
07
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
