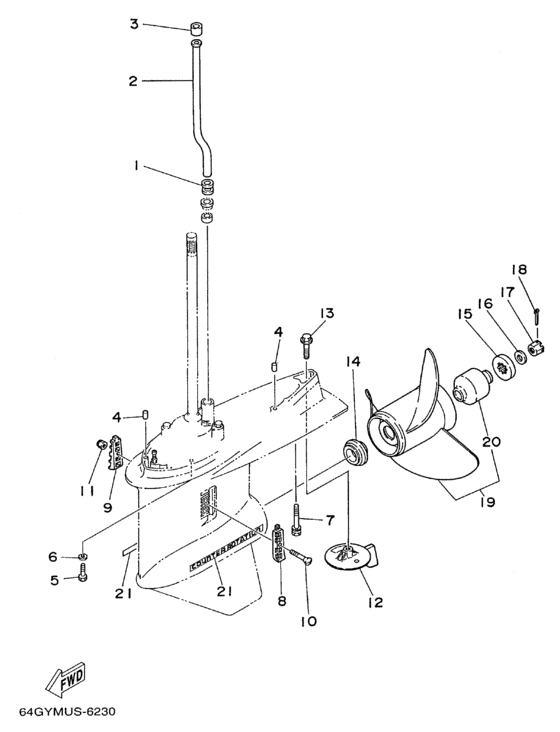

Lower casing drive Diagram Yamaha L150 TXR
- Year
- 1996
- Model
- L150
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.24 |
||
|
2
|
2
6E5-44361-20-00 Tube, Water 1 |
6E5-44361-20-00 |
from US $45.30 |
||
|
3
|
3
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.66 |
||
|
4
|
4
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $1.66 |
||
|
5
|
5
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
6
|
6
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
7
|
7
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
| replacement | |||||
|
7
|
7
901-19100-71-00 BOLT WITH WASHER |
901-19100-71-00 |
from US $7.70 |
||
|
8
|
8
6J9-45214-00-00 Cover, Water Inlet 1 |
6J9-45214-00-00 |
from US $4.64 |
||
|
9
|
9
6J9-45215-00-00 Cover, Water Inlet 2 |
6J9-45215-00-00 |
from US $4.64 |
||
|
10
|
10
90142-05M04-00 Screw |
90142-05M04-00 |
US $3.26 |
||
| replacement | |||||
|
10
|
10
90152-05M08-00 Screw, Countersunk |
90152-05M08-00 |
from US $2.66 |
||
|
11
|
11
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
11
|
11
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2 |
||
|
12
|
12
6K1-45371-02-00 Tab-Trim |
6K1-45371-02-00 |
from US $28.76 |
||
|
13
|
13
90105-10M67-00 Bolt, Flange |
90105-10M67-00 |
US $7.65 |
||
| replacement | |||||
|
13
|
13
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $5.96 |
||
|
14
|
14
6E5-45987-01-00 Spacer 1 |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
14
|
14
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.10 |
||
|
15
|
15
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $26.12 |
||
|
16
|
16
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
17
|
17
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $11.92 |
||
|
18
|
18
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2 |
||
|
19
|
19
6K1-45978-02-98 Propeller (3X13-3/4"x17"-Ml1)3X13-3/4"X17"-ML1 |
6K1-45978-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6K1-45978-02-00 Propeller (3X13-3/4"x17"-Ml1)3X13-3/4"X17"-ML1 |
6K1-45978-02-00 |
from US $1,040.08 |
||
|
19
|
19
6K1-45974-02-98 Propeller (3X13-3/4"x19"-Ml1)3X13-3/4"X19"-ML1 |
6K1-45974-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6K1-45974-02-00 Propeller (3X13-3/4"x19"-Ml1)3X13-3/4"X19"-ML1 |
6K1-45974-02-00 |
from US $1,085.04 |
||
|
19
|
19
6K1-45972-01-98 Propeller (3X13-3/4"x21"-Ml)3X13-3/4"X21"-ML |
6K1-45972-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6K1-45972-01-00 Propeller (3X13-3/4"x21"-Ml)3X13-3/4"X21"-ML |
6K1-45972-01-00 |
from US $1,053.96 |
||
|
19
|
19
6R1-45974-A0-00 Propeller (3X14-1/2"x23"-Ml)3X14-1/2"X23"-ML |
6R1-45974-A0-00 |
from US $1,224 |
||
|
19
|
19
6R1-45972-A0-00 Propeller (3X14-7/8"x21"-Ml)3X14-7/8"X21"-ML |
6R1-45972-A0-00 |
US $1,452 |
||
|
19
|
19
6K1-45970-01-98 Propeller (3X15-1/4"x15"-Ml)3X15-1/4"X15"-ML |
6K1-45970-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
19
|
19
6K1-45970-01-00 Propeller (3X15-1/4"x15"-Ml)3X15-1/4"X15"-ML |
6K1-45970-01-00 |
from US $1,029.84 |
||
|
19
|
19
6R1-45976-A0-00 Propeller (3X15-1/4"x15"-Ml)3X15-1/4"X15"-ML |
6R1-45976-A0-00 |
US $1,268.20 |
||
|
19
|
19
6R1-45978-A0-00 Propeller (3X15-1/4"x17"-Ml)3X15-1/4"X17"-ML |
6R1-45978-A0-00 |
US $1,268.20 |
||
|
19
|
19
6R1-45970-A0-00 Propeller, Ss (3 X 15-1/4" X 19"-Ml)SS 3 X 15-1/4" X 19"-ML |
6R1-45970-A0-00 |
US $1,927.20 |
||
| replacement | |||||
|
19
|
19
6R1-45970-A1-00 Propeller (3X15-1/4"x19"-Ml)SS 3 X 15-1/4" X 19"-ML |
6R1-45970-A1-00 |
from US $1,224 |
||
|
20
|
20
6G5-45981-00-00 Damper Rubber, Propeller |
6G5-45981-00-00 |
from US $172.13 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
6K1-45392-00-00
Graphic, Lower
|
6K1-45392-00-00 |
— | ||
