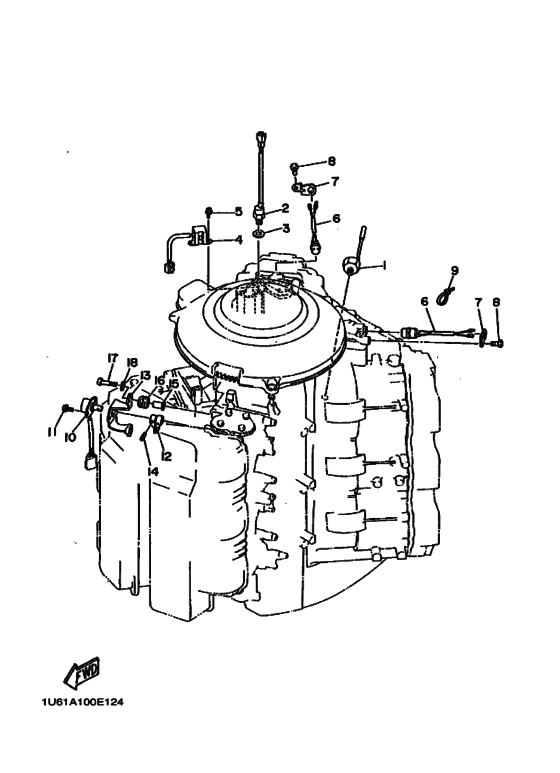

Electrical 4 Diagram Yamaha L250 ETOX
- Year
- 1996
- Model
- L250A
- Model code
- 61B
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-85780-00-00 Sensor, Knock |
61A-85780-00-00 |
US $259.74 |
||
| replacement | |||||
|
1
|
1
61A-85780-01-00 Sensor, Knock |
61A-85780-01-00 |
from US $259.74 |
||
|
2
|
2
61A-85790-00-00 Thermosensor Assy |
61A-85790-00-00 |
from US $107.28 |
||
| replacement | |||||
|
2
|
2
61A-85790-01-00 THERMOSENSOR ASSY |
61A-85790-01-00 |
from US $107.28 |
||
|
3
|
3
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
4
|
4
61A-85895-00-00 Crank Position Sensor |
61A-85895-00-00 |
from US $136.36 |
||
|
5
|
5
97895-05012-00 Screw, Pan Head |
97895-05012-00 |
US $1.70 |
||
| replacements | |||||
|
5
|
5
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
5
|
5
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
|
6
|
6
61A-82560-00-00 Thermo Switch Assy |
61A-82560-00-00 |
from US $103.57 |
||
|
7
|
7
61A-8252U-00-00 Cover |
61A-8252U-00-00 |
from US $7.18 |
||
|
8
|
8
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
9
|
9
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
10
|
10
61A-85885-00-00 Throttle Sensor Assy |
61A-85885-00-00 |
from US $163.03 |
||
| replacement | |||||
|
10
|
10
6X2-85885-10-00 Throttle Sensor Assy |
6X2-85885-10-00 |
US $163.03 |
||
|
11
|
11
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
12
|
12
6K7-14573-00-00 Lever |
6K7-14573-00-00 |
from US $3.26 |
||
|
13
|
13
61A-85886-00-00 Sensor, Air Temperature |
61A-85886-00-00 |
from US $16.86 |
||
|
14
|
14
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
|
15
|
15
90387-05M00-00 Collar |
90387-05M00-00 |
from US $2.24 |
||
|
16
|
16
90480-10M23-00 Grommet |
90480-10M23-00 |
from US $4.68 |
||
|
17
|
17
97985-05325-00 Screw, With Washer |
97985-05325-00 |
US $1.98 |
||
|
18
|
18
90201-05M03-00 Washer, Plate |
90201-05M03-00 |
from US $1.98 |
||
