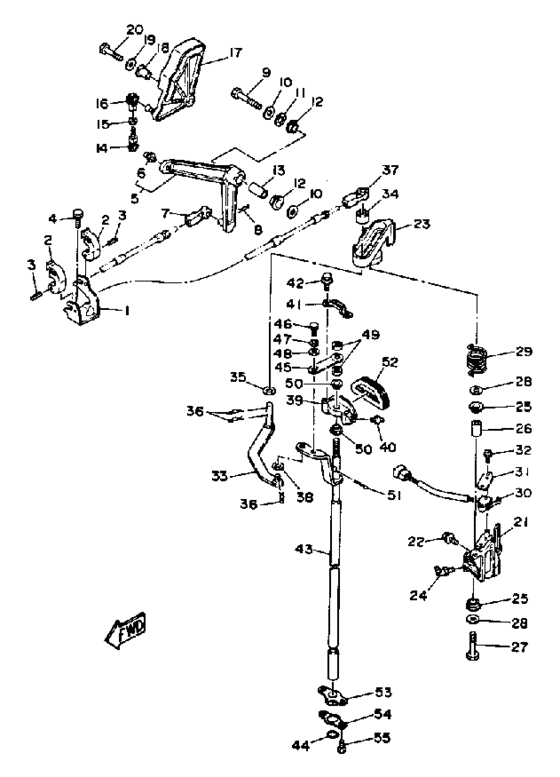

Control engine Diagram Yamaha L250 TXR
- Year
- 1991
- Model
- L250
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-48531-00-00 Bracket, Remote Control 1 |
61A-48531-00-00 |
from US $19.27 |
||
|
2
|
2
6E5-48538-00-00 Clamp, Cable |
6E5-48538-00-00 |
from US $9.78 |
||
|
3
|
3
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
4
|
4
97595-08420-00 Bolt, With Washer |
97595-08420-00 |
US $5 |
||
|
5
|
5
61A-41632-00-94 Lever, Magneto Control |
61A-41632-00-94 |
US $29.08 |
||
| replacement | |||||
|
5
|
5
61A-41632-00-1S Lever, Magneto Control |
61A-41632-00-1S |
US $29.08 |
||
|
6
|
6
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
7
|
7
6E5-48344-00-00 Cable End, Remote Control |
6E5-48344-00-00 |
from US $3.64 |
||
|
8
|
8
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
9
|
9
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
9
|
9
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
10
|
10
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
11
|
11
90206-12M00-00 Washer, Wave |
90206-12M00-00 |
from US $3.26 |
||
|
12
|
12
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
13
|
13
90387-08M16-00 Collar |
90387-08M16-00 |
from US $2 |
||
| replacement | |||||
|
13
|
13
90387-084J8-00 Collar |
90387-084J8-00 |
US $4.77 |
||
|
14
|
14
6G5-41211-01-00 Link, Accel |
6G5-41211-01-00 |
from US $6.38 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
6H4-41237-00-00 Joint, Link |
6H4-41237-00-00 |
from US $3.64 |
||
|
17
|
17
61A-41213-00-00 Cam, Accel |
61A-41213-00-00 |
from US $23.66 |
||
|
18
|
18
90387-06M29-00 Collar |
90387-06M29-00 |
from US $5.81 |
||
|
19
|
19
90206-10M04-00 Washer, Wave |
90206-10M04-00 |
from US $1.84 |
||
|
20
|
20
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
21
|
21
61A-44117-00-EK
Bracket
|
61A-44117-00-EK |
— | ||
|
22
|
22
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
22
|
22
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
23
|
23
61A-44176-00-EK Bracket |
61A-44176-00-EK |
US $50.29 |
||
|
24
|
24
93700-06M01-00 Nipple, Grease |
93700-06M01-00 |
from US $4.96 |
||
|
25
|
25
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
26
|
26
90387-08M09-00 Collar |
90387-08M09-00 |
from US $10.06 |
||
|
27
|
27
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
27
|
27
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
27
|
27
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
|
28
|
28
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
29
|
29
90508-20M31-00 Spring, Torsion |
90508-20M31-00 |
from US $6.80 |
||
|
30
|
30
61A-8259F-00-00 Switch Assy |
61A-8259F-00-00 |
US $53.88 |
||
|
31
|
31
61A-82588-00-00 Plate |
61A-82588-00-00 |
US $3.68 |
||
| replacement | |||||
|
31
|
31
61A-82588-01-00 Plate |
61A-82588-01-00 |
from US $3.68 |
||
|
32
|
32
97985-04116-00 Screw, With Washer |
97985-04116-00 |
from US $1.56 |
||
|
33
|
33
61A-44121-00-00 Lever, Shift Rod |
61A-44121-00-00 |
from US $101.27 |
||
|
34
|
34
6E5-44122-00-00 Bushing, Shift Rod Lever |
6E5-44122-00-00 |
from US $7.93 |
||
|
35
|
35
90202-08M20-00 Washer, Plate |
90202-08M20-00 |
from US $2.55 |
||
|
36
|
36
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
37
|
37
6E5-48344-00-00 Cable End, Remote Control |
6E5-48344-00-00 |
from US $3.64 |
||
|
38
|
38
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
39
|
39
61A-44118-00-EK Bracket 2 |
61A-44118-00-EK |
US $50.29 |
||
|
40
|
40
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
41
|
41
61A-44116-00-00 Spring |
61A-44116-00-00 |
from US $7.79 |
||
|
42
|
42
97595-06630-00 Bolt, With Washer(61B) |
97595-06630-00 |
US $3.54 |
||
| replacement | |||||
|
42
|
42
97E95-06630-00 Bolt, Hexagon W/w Deep Recess |
97E95-06630-00 |
from US $1.07 |
||
|
43
|
43
61A-44120-21-00 Hdl.gear Shftass''y |
61A-44120-21-00 |
US $192.04 |
||
| replacements | |||||
|
43
|
43
61A-44120-23-00 Handle Gear Shift Assy |
61A-44120-23-00 |
US $192.04 |
||
|
43
|
43
61A-44120-24-00 Handle Gear Shift Assy |
61A-44120-24-00 |
US $308.30 |
||
|
44
|
44
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
44
|
44
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
45
|
45
61A-44112-00-00 Stay, Handle Gear Shift |
61A-44112-00-00 |
from US $8.22 |
||
|
46
|
46
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
46
|
46
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
47
|
47
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
49
|
49
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
50
|
50
90386-90M90-00 Bush |
90386-90M90-00 |
from US $2 |
||
|
51
|
51
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
52
|
52
61A-15315-00-00 Seal, Crankcase |
61A-15315-00-00 |
US $10.20 |
||
|
53
|
53
61A-42724-00-00 Grommet |
61A-42724-00-00 |
US $5.53 |
||
|
54
|
54
61A-44138-00-00 Washer |
61A-44138-00-00 |
from US $4.11 |
||
|
55
|
55
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
55
|
55
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
