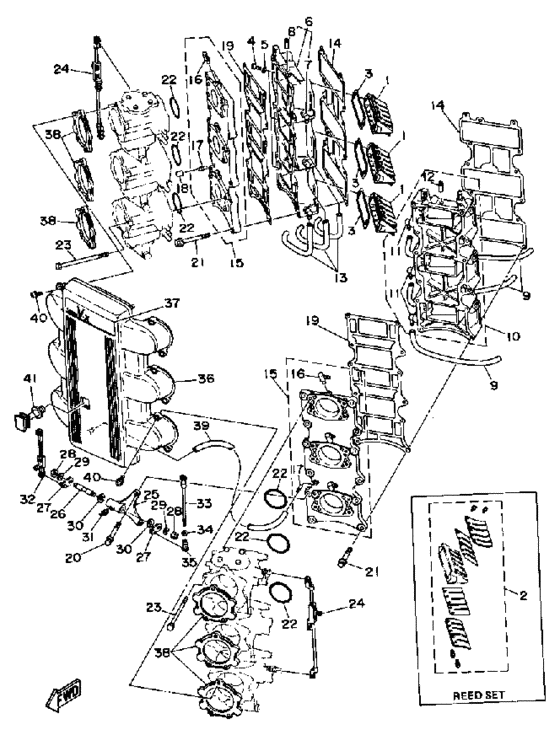

Intake Diagram Yamaha L250 TXR
- Year
- 1991
- Model
- L250
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-13610-01-00 Reed Valve Assembly |
61A-13610-01-00 |
US $186.52 |
||
| replacement | |||||
|
1
|
1
65L-13610-01-00 Reed Valve Assy |
65L-13610-01-00 |
from US $186.52 |
||
|
2
|
2
61A-W0004-01-00
Reed Set
|
61A-W0004-01-00 |
— | ||
| replacement | |||||
|
2
|
2
65L-W0004-00-00
Reed Set
|
65L-W0004-00-00 |
— | ||
|
3
|
3
61A-13621-00-00 Gasket, Valve Seat |
61A-13621-00-00 |
US $7.08 |
||
| replacement | |||||
|
3
|
3
61A-13621-A0-00 Gasket, Valve Seat |
61A-13621-A0-00 |
from US $7.08 |
||
|
4
|
4
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
5
|
5
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
61A-13624-00-94
Plate, Reed Valve
|
61A-13624-00-94 |
— | ||
| replacement | |||||
|
6
|
6
61A-13624-00-1S Reed Valve Plate |
61A-13624-00-1S |
US $233.78 |
||
|
7
|
7
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
7
|
7
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $7.28 |
||
|
8
|
8
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
9
|
9
90445-07M20-00 Hose |
90445-07M20-00 |
from US $15.16 |
||
| replacement | |||||
|
9
|
9
90445-07006-00 Hose (L770) |
90445-07006-00 |
from US $9.26 |
||
|
10
|
10
61A-13624-10-94
Plate, Reed Valve
|
61A-13624-10-94 |
— | ||
| replacement | |||||
|
10
|
10
61A-13624-10-1S
Plate,reed Valve
|
61A-13624-10-1S |
— | ||
|
11
|
11
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
11
|
11
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $7.28 |
||
|
12
|
12
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
13
|
13
90445-07M45-00 Hose (L340) |
90445-07M45-00 |
US $4.25 |
||
| replacement | |||||
|
13
|
13
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
14
|
14
61A-13646-00-00 Gasket, Manifold 2 |
61A-13646-00-00 |
from US $17.93 |
||
|
15
|
15
61A-13641-00-94
Manifold 1
|
61A-13641-00-94 |
— | ||
| replacement | |||||
|
15
|
15
61A-13641-00-1S
Manifold, Intake 1
|
61A-13641-00-1S |
— | ||
|
16
|
16
61A-13552-00-00 Nozzle |
61A-13552-00-00 |
from US $8.93 |
||
|
17
|
17
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
18
|
18
647-14395-60-00 Cap, Overflow Pipe |
647-14395-60-00 |
US $4.39 |
||
|
19
|
19
61A-13645-00-00 Gasket, Manifold 1 |
61A-13645-00-00 |
US $11.75 |
||
|
20
|
20
97513-06570-00 Bolt, With Washer |
97513-06570-00 |
US $3.37 |
||
|
21
|
21
97513-06565-00
Bolt, With Washer
|
97513-06565-00 |
— | ||
|
22
|
22
93210-50MA8-00 O-Ring |
93210-50MA8-00 |
from US $10.34 |
||
|
23
|
23
90101-06M21-00
Bolt
|
90101-06M21-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
61A-41217-01-00 Rod, Accel. Lever |
61A-41217-01-00 |
from US $49.05 |
||
|
25
|
25
61A-41663-00-00 Bracket 3 |
61A-41663-00-00 |
US $19.68 |
||
| replacement | |||||
|
25
|
25
61A-41663-00-1S Bracket 3 |
61A-41663-00-1S |
US $19.68 |
||
|
26
|
26
61A-41242-00-00 Rod 2 |
61A-41242-00-00 |
US $29.08 |
||
|
27
|
27
61A-41280-00-00
Accel. Lever Assembly
|
61A-41280-00-00 |
— | ||
|
28
|
28
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
30
|
30
90202-08M41-00 Washer, Plate |
90202-08M41-00 |
from US $1.66 |
||
|
31
|
31
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
32
|
32
61A-41211-00-00 Link, Accel |
61A-41211-00-00 |
US $35.99 |
||
| replacement | |||||
|
32
|
32
61A-41211-01-00
Link, Accel
|
61A-41211-01-00 |
— | ||
|
33
|
33
6J8-41237-00-00 Joint, Link |
6J8-41237-00-00 |
from US $7.37 |
||
|
34
|
34
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
35
|
35
6H4-41237-00-00 Joint, Link |
6H4-41237-00-00 |
from US $3.64 |
||
|
36
|
36
61A-14440-02-00
Silencer Assembly, Intk
|
61A-14440-02-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
61A-1441K-00-00
Emblem
|
61A-1441K-00-00 |
— | ||
|
38
|
38
61A-14457-03-00
Seal
|
61A-14457-03-00 |
— | ||
|
39
|
39
904-45072-40-00
Hose (L330)
|
904-45072-40-00 |
— | ||
| replacement | |||||
|
39
|
39
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $3.98 |
||
|
40
|
40
979-86063-25-00
Screw, With Washer
|
979-86063-25-00 |
— | ||
|
41
|
41
61A-14445-00-00
Grommet
|
61A-14445-00-00 |
— | ||
