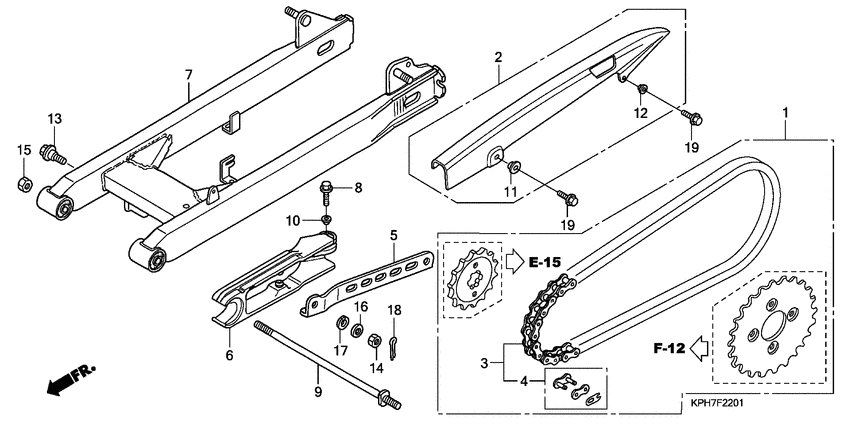

Swingarm/chain case (2) Diagram Honda ANF125 Innova
- Year
- 2007
- Model code
- ANF1257
- Sales region
- Greece
- Frame
- MLHJC37A*75000001 - MLHJC37A*75999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06406-KTM-G00
Chain kit
|
06406-KTM-G00 |
— | ||
|
2
|
2
40510-KTM-730
Case
|
40510-KTM-730 |
— | ||
|
3
|
3
40530-KPH-702
Chain
|
40530-KPH-702 |
— | ||
|
3
|
3
40530-KPH-901
Chain,drive did42
|
40530-KPH-901 |
— | ||
|
4
|
4
40531-KPH-702
Joint
|
40531-KPH-702 |
— | ||
|
4
|
4
40531-KPH-901
Joint rj,drive ch
|
40531-KPH-901 |
— | ||
|
5
|
5
43431-KPH-700
Arm
|
43431-KPH-700 |
— | ||
|
6
|
6
52170-KPH-720
Slider
|
52170-KPH-720 |
— | ||
|
7
|
7
52200-KTM-G00ZA
Swingarm set
|
52200-KTM-G00ZA |
— | ||
|
8
|
8
90102-MEA-740 Bolt, flange (6x16) |
90102-MEA-740 |
from US $1.62 |
||
|
9
|
9
90121-KPH-900
Bolt,swingarm piv
|
90121-KPH-900 |
— | ||
|
10
|
10
90503-KEV-880
Collar
|
90503-KEV-880 |
— | ||
|
11
|
11
90513-405-000 Washer, 6x9 |
90513-405-000 |
from US $2.44 |
||
|
12
|
12
90563-KEV-750
Washer,chain case
|
90563-KEV-750 |
— | ||
|
13
|
13
9281210000 Bolt a, stopper arm |
9281210000 |
from US $1.85 |
||
|
14
|
14
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
15
|
15
94031-10000 Nut,hex 10mm |
94031-10000 |
from US $0.52 |
||
|
16
|
16
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
17
|
17
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
18
|
18
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
19
|
19
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
