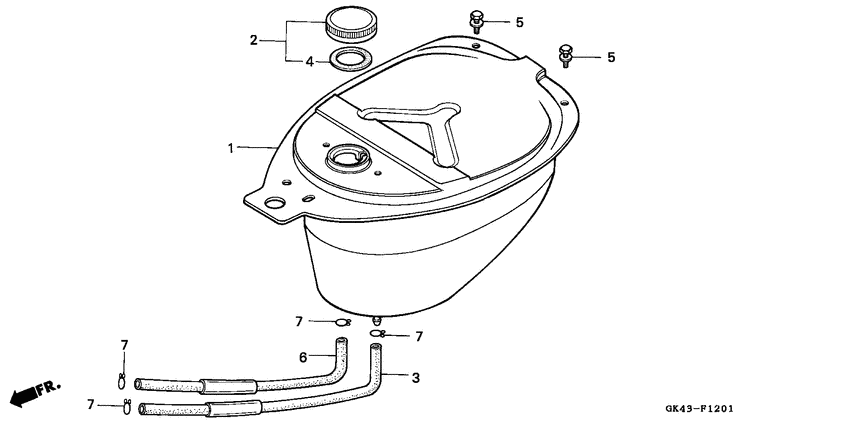

Fuel tank (C50J/N) Diagram Honda C50 CUB
- Year
- 1992
- Model code
- C50N
- Sales region
- Greece
- Frame
- C506500001 - C506502461
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17510-GB4-721ZA
Tank comp.,f*r23*
|
17510-GB4-721ZA |
— | ||
|
1
|
1
17510-GB4-721ZB Tank comp.,*pb52* |
17510-GB4-721ZB |
US $138.72 |
||
|
1
|
1
17510-GB4-721ZC Tank comp.,*r110* |
17510-GB4-721ZC |
US $138.72 |
||
|
1
|
1
17510-GB4-721ZD
Tank comp.*pb109*
|
17510-GB4-721ZD |
— | ||
|
2
|
2
17620-GA7-023 Cap, fuel filler |
17620-GA7-023 |
from US $19.42 |
||
| replacements | |||||
|
2
|
2
17620-KEV-900 Cap,fuel filler |
17620-KEV-900 |
from US $18.50 |
||
|
2
|
2
17620-KEV-901 Cap, fuel filler |
17620-KEV-901 |
from US $19.42 |
||
|
3
|
3
17631-GB4-000 Tube,fuel reserve |
17631-GB4-000 |
US $12.73 |
||
|
4
|
4
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
4
|
4
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
5
|
5
93411-0601600 Bolt-washer (6x16) |
93411-0601600 |
from US $0.52 |
||
| replacement | |||||
|
5
|
5
93401-060-160-0 Bolt-washer6X16 |
93401-060-160-0 |
from US $0.52 |
||
|
6
|
6
95001-555-204-0 *95001-55008-60m |
95001-555-204-0 |
US $5.33 |
||
|
7
|
7
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
