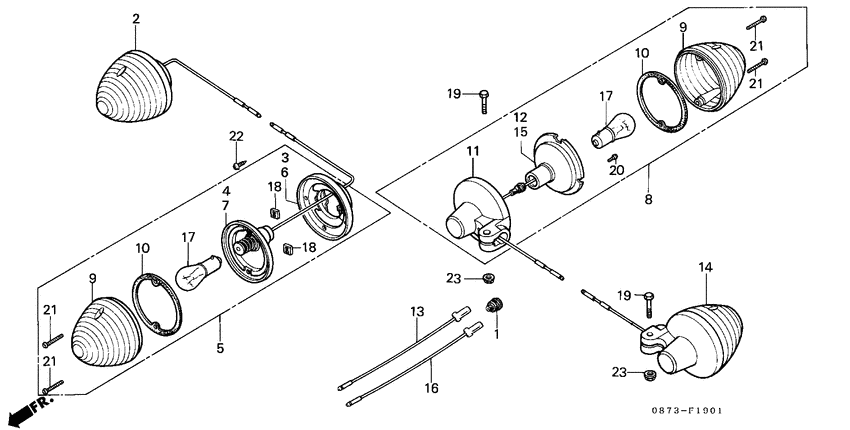

Winker (2) Diagram Honda C50 CUB
- Year
- 1977
- Model code
- C50Z2
- Sales region
- England
- Frame
- C505265596 - C505449865
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32982-011-000 Grommet |
32982-011-000 |
US $4.59 |
||
|
2
|
2
33400-087-742
Winker,r.fr.
|
33400-087-742 |
— | ||
|
3
|
3
33401-087-740
Base,r.fr.winker
|
33401-087-740 |
— | ||
|
4
|
4
33410-087-741
Socket comp.
|
33410-087-741 |
— | ||
|
5
|
5
33450-087-742
Winker assy,l.fr.
|
33450-087-742 |
— | ||
|
6
|
6
33451-087-740
Base,l.fr.winker
|
33451-087-740 |
— | ||
|
7
|
7
33460-087-741
Socket,l.winker
|
33460-087-741 |
— | ||
|
8
|
8
33600-087-741
Winker assy,r.rr.
|
33600-087-741 |
— | ||
|
9
|
9
33602-041-671 Lens,winker |
33602-041-671 |
US $5.48 |
||
|
10
|
10
33604-041-013 Gasket, rr |
33604-041-013 |
US $2.65 |
||
|
11
|
11
33605-041-672
Base,rr.winker
|
33605-041-672 |
— | ||
|
12
|
12
33610-087-741
Socket,r.winker
|
33610-087-741 |
— | ||
|
13
|
13
33617-041-680
Sub cord,r.winker
|
33617-041-680 |
— | ||
|
14
|
14
33650-087-741
Winker assy,l.rr.
|
33650-087-741 |
— | ||
|
15
|
15
33660-087-741
Socket,l.winker
|
33660-087-741 |
— | ||
|
16
|
16
33667-041-680
Cord, winker
|
33667-041-680 |
— | ||
|
17
|
17
34905-053-003 Bulb,winker |
34905-053-003 |
US $4.69 |
||
| replacement | |||||
|
17
|
17
34905-358-003 Bulb, winker lt. |
34905-358-003 |
from US $3.40 |
||
|
18
|
18
90310-041-000
Nut, special
|
90310-041-000 |
— | ||
|
19
|
19
93000-060-280-2 Bolt,hex.6x28 |
93000-060-280-2 |
from US $0.74 |
||
| replacement | |||||
|
19
|
19
93101-060-280-B Bolt,hex.,6x28 |
93101-060-280-B |
from US $0.67 |
||
|
20
|
20
93500-030-050-H Screw,pan 3x5 |
93500-030-050-H |
US $0.37 |
||
|
21
|
21
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.37 |
||
|
22
|
22
93901-24110 ScrewTAPPING, 4X8 |
93901-24110 |
US $0.37 |
||
|
23
|
23
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
