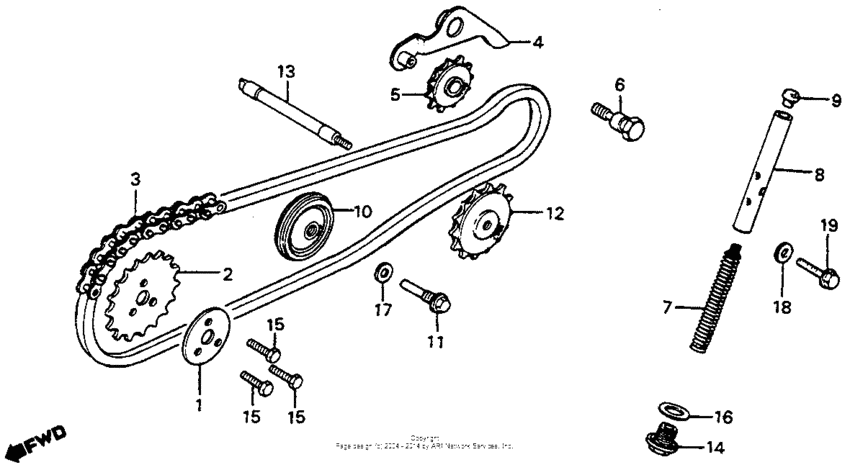

Cam chain + tensioner Diagram Honda C70 CUB
- Year
- 1982
- Model code
- C70 A
- Sales region
- USA
- Frame
- JH2DA010*CS200006 - JH2DA010*CS213668
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14105-957-000 Washer, camshaft |
14105-957-000 |
US $3.26 |
||
|
2
|
2
14321-035-700 Sprocket, cam (28t) |
14321-035-700 |
from US $13.76 |
||
|
2
|
2
14321-035-010 Sprocket, cam (28t) |
14321-035-010 |
from US $14.55 |
||
| replacement | |||||
|
2
|
2
14321-035-700 Sprocket, cam (28t) |
14321-035-700 |
from US $13.76 |
||
|
3
|
3
14401-035-003
Chain, cam (82l)
|
14401-035-003 |
— | ||
| replacement | |||||
|
3
|
3
14401-115-010 Chain,cam |
14401-115-010 |
from US $32.50 |
||
|
4
|
4
14500-035-020 Arm |
14500-035-020 |
from US $11.99 |
||
|
5
|
5
14502-086-000 Roller |
14502-086-000 |
from US $8.58 |
||
|
6
|
6
14531-035-000 Pivot |
14531-035-000 |
from US $3.48 |
||
|
7
|
7
14541-GB4-681 Spring |
14541-GB4-681 |
from US $3.85 |
||
|
8
|
8
14550-GB0-911 Rod |
14550-GB0-911 |
from US $16.59 |
||
|
9
|
9
14566-086-030 HEAD, CAM CHAIN TENSIONER PUSH ROD |
14566-086-030 |
from US $2.37 |
||
|
10
|
10
14610-086-010 Roller |
14610-086-010 |
from US $14.65 |
||
|
11
|
11
14615-035-000 Pin |
14615-035-000 |
from US $2.43 |
||
| replacement | |||||
|
11
|
11
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
11
|
11
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
12
|
12
14670-035-030 Sprocket (25t) |
14670-035-030 |
US $21.47 |
||
| replacement | |||||
|
12
|
12
14670-GBJ-M30 Sprocket (25t) |
14670-GBJ-M30 |
from US $21.08 |
||
|
13
|
13
14675-GB0-910 Spindle,cam chain |
14675-GB0-910 |
US $14.65 |
||
|
14
|
14
90081-035-000 Bolt, sealing (14mm) |
90081-035-000 |
from US $4.74 |
||
|
15
|
15
90083-035-010 Bolt, knock (5mm) |
90083-035-010 |
from US $2.37 |
||
|
16
|
16
90441-035-000 Washer, sealing, 14mm |
90441-035-000 |
from US $2.59 |
||
|
17
|
17
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
18
|
18
90481-035-000 Washer, 8mm |
90481-035-000 |
from US $1.92 |
||
|
19
|
19
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
