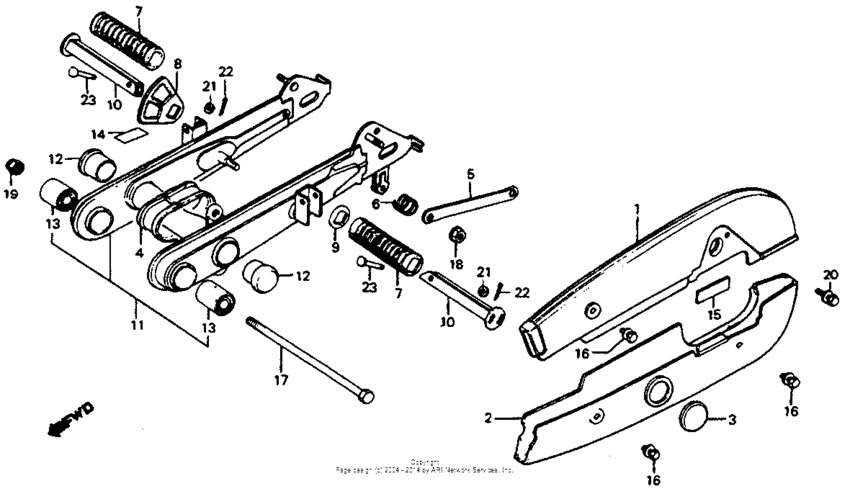

Swingarm + chain case 83 Diagram Honda C70 CUB
- Year
- 1983
- Model code
- C70 A
- Sales region
- USA
- Frame
- JH2DA010*DS300004 - JH2DA010*DS308543
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-GT0-010ZA New Genuine Part |
40510-GT0-010ZA |
US $35.09 |
||
|
1
|
1
40510-065-010ZL
Case (upper) *r110*
|
40510-065-010ZL |
— | ||
|
1
|
1
40510-040-000ZK
Case *pb121ms*
|
40510-040-000ZK |
— | ||
|
2
|
2
40520-GT0-010ZA Case,drive chain |
40520-GT0-010ZA |
US $35.09 |
||
|
2
|
2
40520-065-010ZP
Case (lower) *nh0*
|
40520-065-010ZP |
— | ||
|
2
|
2
40520-040-000ZH
Case *pb121ms*
|
40520-040-000ZH |
— | ||
|
3
|
3
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
3
|
3
40545-141-000 Cap,chain case |
40545-141-000 |
from US $3.47 |
||
| replacement | |||||
|
3
|
3
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
4
|
4
40591-041-000 Packing chaincase |
40591-041-000 |
US $5.70 |
||
|
5
|
5
43431-086-720 Link,rear brake |
43431-086-720 |
US $8.39 |
||
|
6
|
6
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
7
|
7
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.32 |
||
|
8
|
8
50712-174-670
Washer, pillion step
|
50712-174-670 |
— | ||
|
9
|
9
50712-377-000 Washer,pillion |
50712-377-000 |
US $5.48 |
||
|
10
|
10
50715-MA6-000 Bar,pillion step |
50715-MA6-000 |
from US $22.03 |
||
|
11
|
11
52000-GB6-305ZA
Swingarm *pb121ms*
|
52000-GB6-305ZA |
— | ||
|
11
|
11
52000-GB6-305ZE
Swingarm *nh44ms*
|
52000-GB6-305ZE |
— | ||
|
11
|
11
52000-GB6-305ZF
Swingarm set *r110*
|
52000-GB6-305ZF |
— | ||
|
12
|
12
52161-051-000 Cap, cross member side |
52161-051-000 |
from US $2.74 |
||
|
13
|
13
52181-001-300 Rubber bush |
52181-001-300 |
from US $6.07 |
||
|
14
|
14
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
15
|
15
87505-174-670
Label, tire caution
|
87505-174-670 |
— | ||
|
16
|
16
90118-383-000 Bolt,washer 6x6 |
90118-383-000 |
US $2.96 |
||
|
17
|
17
90120-046-810 Bolt rr pivot |
90120-046-810 |
US $12.73 |
||
|
18
|
18
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
19
|
19
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
20
|
20
93401-060-100-0 Bolt-washer,6x10 |
93401-060-100-0 |
from US $0.52 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
23
|
23
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
