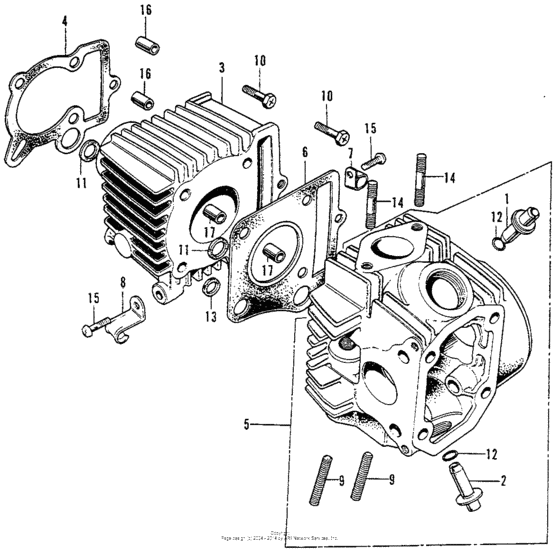

Cylinder + cylinder head Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70K1 A
- Sales region
- USA
- Frame
- C702003703 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12023-035-405 Guide, valve |
12023-035-405 |
US $13.87 |
||
|
2
|
2
12023-051-320
Guide, ex. valve
|
12023-051-320 |
— | ||
|
3
|
3
12101-GB0-910 Cylinder |
12101-GB0-910 |
from US $210.80 |
||
|
4
|
4
12191-GW8-681
Gasket, cylinder
|
12191-GW8-681 |
— | ||
| replacement | |||||
|
4
|
4
12191-GW8-682 Gasket, cylinder |
12191-GW8-682 |
US $6.51 |
||
|
5
|
5
12200-087-305
Cylinder head
|
12200-087-305 |
— | ||
|
6
|
6
12251-111-505 Gasket, cyl hd |
12251-111-505 |
US $25.57 |
||
|
7
|
7
16236-045-010 Clamp, overflow pipe |
16236-045-010 |
from US $3.11 |
||
|
8
|
8
32906-061-000 Clip, ignition cable |
32906-061-000 |
from US $7.50 |
||
|
9
|
9
90033-041-020 Bolt, stud (6x32) |
90033-041-020 |
from US $2.44 |
||
|
10
|
10
90082-035-010 Bolt (6mm) |
90082-035-010 |
from US $2.15 |
||
|
11
|
11
91303-035-000 Gasket (16mm) |
91303-035-000 |
from US $4.66 |
||
|
12
|
12
91306-028-000 O ring 9.5x1.6 |
91306-028-000 |
from US $3.33 |
||
|
13
|
13
91306-141-000 Gasket, rubber (9mm) |
91306-141-000 |
from US $3.40 |
||
|
14
|
14
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
15
|
15
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
16
|
16
9430108120 Pin a, dowel, 8x12 |
9430108120 |
from US $0.89 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
