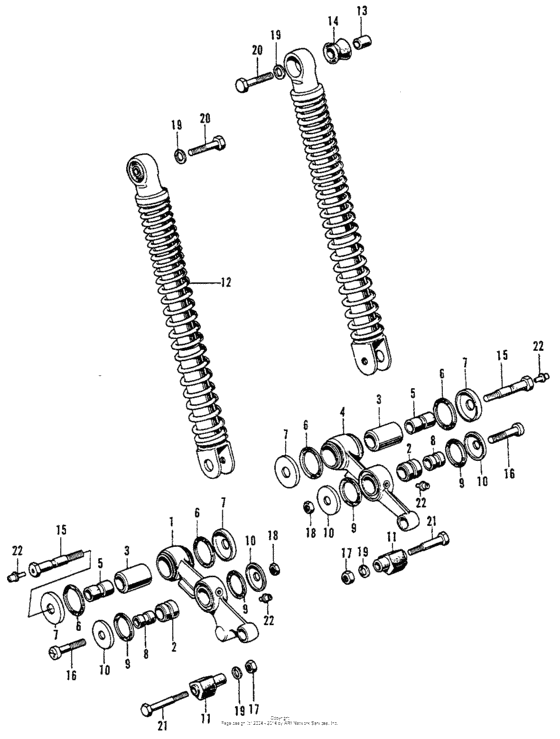

Front shock absorber Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70K1 A
- Sales region
- USA
- Frame
- C702003703 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51310-041-315 Arm set,r fr susp |
51310-041-315 |
US $45.29 |
||
|
2
|
2
51311-041-006 Bush,fr.cushion |
51311-041-006 |
US $6.81 |
||
|
3
|
3
51312-041-006 Bush,fr.arm pivot |
51312-041-006 |
from US $6.96 |
||
|
4
|
4
51320-041-000 Arm, suspension |
51320-041-000 |
US $54.91 |
||
|
4
|
4
51320-041-315 Arm set,l fr susp |
51320-041-315 |
US $45.29 |
||
|
5
|
5
51331-041-000
Collar, arm pivot
|
51331-041-000 |
— | ||
|
6
|
6
51332-001-000 Dustseal |
51332-001-000 |
US $2.44 |
||
|
7
|
7
51333-001-000 Cap |
51333-001-000 |
US $2 |
||
|
8
|
8
51334-041-000 Collar, cushion |
51334-041-000 |
US $5.48 |
||
|
9
|
9
51335-001-000 Dustseal, cushion |
51335-001-000 |
from US $2 |
||
|
10
|
10
51336-001-000 Cap, fr. (lower) |
51336-001-000 |
from US $2.15 |
||
|
11
|
11
51351-041-010 Stopper fr arm |
51351-041-010 |
from US $3.33 |
||
|
12
|
12
51400-086-003
Fork assy., fr.
|
51400-086-003 |
— | ||
|
13
|
13
51486-086-000 Collar,rub bush |
51486-086-000 |
US $2.66 |
||
|
14
|
14
51489-086-000 Bush, rubber |
51489-086-000 |
US $2.66 |
||
|
15
|
15
90125-041-000
Bolt, arm pivot
|
90125-041-000 |
— | ||
|
16
|
16
90149-041-010 Bolt,fr.cushion |
90149-041-010 |
from US $2.22 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
20
|
20
95300-080-320-0 Bolt,hex.,8x32 |
95300-080-320-0 |
US $0.59 |
||
|
21
|
21
95300-080-500-0 Bolt,hex.,8x50 |
95300-080-500-0 |
US $0.74 |
||
|
22
|
22
96201-30001 Nipple,grease4.5 |
96201-30001 |
from US $0.81 |
