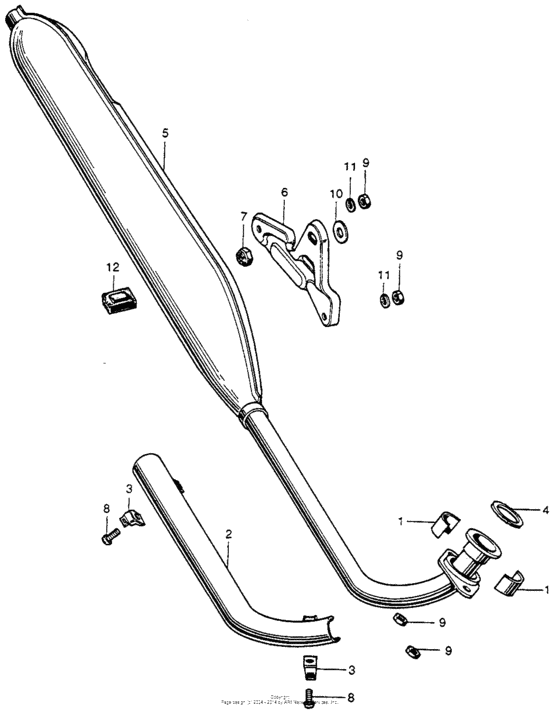

Muffler Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70K1 A
- Sales region
- USA
- Frame
- C702003703 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18233-041-000
Collar,ex.pipe
|
18233-041-000 |
— | ||
|
2
|
2
18240-040-010
Cover comp,ex.
|
18240-040-010 |
— | ||
|
3
|
3
18272-220-000 Band b,exhaust |
18272-220-000 |
from US $4.44 |
||
|
4
|
4
18291-HB2-900 Gasket, ex. pipe |
18291-HB2-900 |
from US $5.33 |
||
|
5
|
5
18300-092-677
Muffler comp.,ex.
|
18300-092-677 |
— | ||
|
6
|
6
18315-041-000ZY
Stay (upper) *pb12m*
|
18315-041-000ZY |
— | ||
|
6
|
6
18315-041-000-Z
Stay, muffler
|
18315-041-000-Z |
— | ||
|
7
|
7
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
8
|
8
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
9
|
9
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
10
|
10
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
11
|
11
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
12
|
12
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
