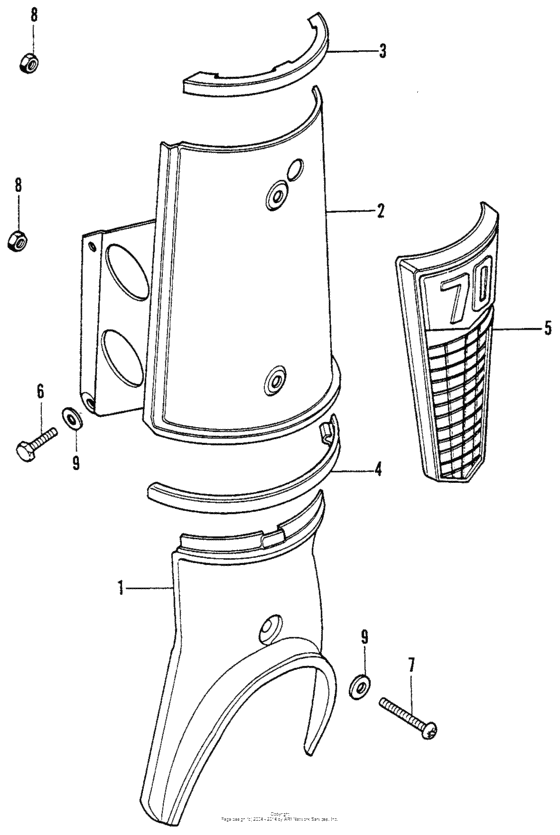

Top cover Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70K1 A
- Sales region
- USA
- Frame
- C702003703 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61150-086-000FB
Cover *pb12m*
|
61150-086-000FB |
— | ||
|
1
|
1
61150-086-000FS
Cover *y2m*
|
61150-086-000FS |
— | ||
|
2
|
2
64310-086-000FB
Cvr, fr. top *pb12m*
|
64310-086-000FB |
— | ||
|
2
|
2
64310-086-000FS
Cover, fr. top *y2m*
|
64310-086-000FS |
— | ||
|
2
|
2
64310-086-000-Z
Cover, fr. top
|
64310-086-000-Z |
— | ||
|
3
|
3
64320-086-300
Ornament,top up
|
64320-086-300 |
— | ||
|
4
|
4
64321-086-300
Ornament,top un
|
64321-086-300 |
— | ||
|
5
|
5
87130-092-670
Emblem, top cover
|
87130-092-670 |
— | ||
|
6
|
6
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
6
|
6
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
6
|
6
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
7
|
7
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
8
|
8
94002-040-000-S NutHEX., 4MM |
94002-040-000-S |
from US $0.37 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
