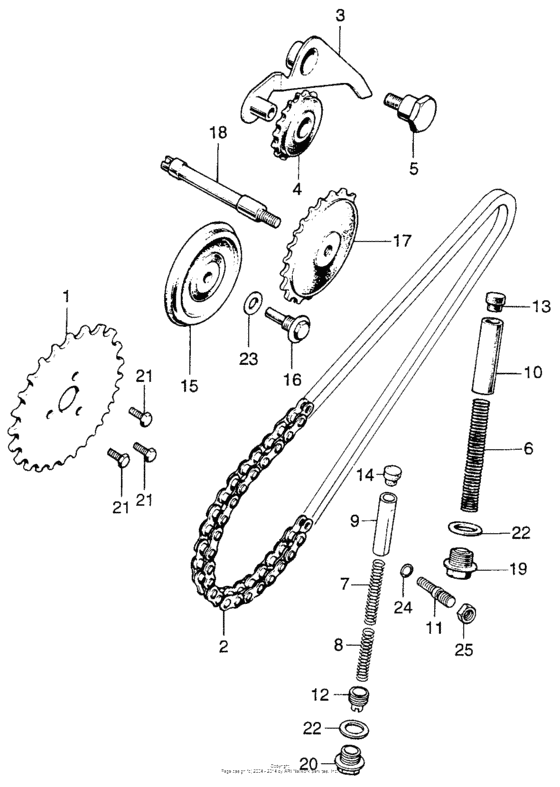

Cam chain tensioner Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-035-700 Sprocket, cam (28t) |
14321-035-700 |
from US $13.76 |
||
|
1
|
1
14321-035-010 Sprocket, cam (28t) |
14321-035-010 |
from US $14.55 |
||
| replacement | |||||
|
1
|
1
14321-035-700 Sprocket, cam (28t) |
14321-035-700 |
from US $13.76 |
||
|
2
|
2
14401-035-003
Chain, cam (82l)
|
14401-035-003 |
— | ||
| replacement | |||||
|
2
|
2
14401-115-010 Chain,cam |
14401-115-010 |
from US $32.50 |
||
|
3
|
3
14500-035-020 Arm |
14500-035-020 |
from US $11.99 |
||
|
4
|
4
14502-086-000 Roller |
14502-086-000 |
from US $8.58 |
||
|
5
|
5
14531-035-000 Pivot |
14531-035-000 |
from US $3.48 |
||
|
6
|
6
14541-035-010
Spring, tensioner
Use up to Engine SN 051861M |
14541-035-010 |
— | ||
|
7
|
7
14541-086-010 Spring aUse from Engine SN 051862M |
14541-086-010 |
US $4 |
||
|
8
|
8
14542-086-000 Spring bUse from Engine SN 051862M |
14542-086-000 |
from US $5.18 |
||
|
9
|
9
14550-086-010 RodUse from Engine SN 051862M |
14550-086-010 |
US $11.10 |
||
|
10
|
10
14551-035-020
Rod,push
Use up to Engine SN 051861M |
14551-035-020 |
— | ||
|
11
|
11
14561-086-010 BoltUse from Engine SN 051862M |
14561-086-010 |
from US $6.66 |
||
|
12
|
12
14562-086-000 Bolt bUse from Engine SN 051862M |
14562-086-000 |
from US $4.29 |
||
|
13
|
13
14566-035-000
Head,push rod
Use up to Engine SN 051861M |
14566-035-000 |
— | ||
|
14
|
14
14566-086-030 HEAD, CAM CHAIN TENSIONER PUSH RODUse from Engine SN 051862M |
14566-086-030 |
from US $2.37 |
||
|
15
|
15
14610-086-010 Roller |
14610-086-010 |
from US $14.65 |
||
|
16
|
16
14615-035-000 Pin |
14615-035-000 |
from US $2.43 |
||
| replacement | |||||
|
16
|
16
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
16
|
16
14615-035-010 Pin |
14615-035-010 |
from US $3.11 |
||
|
17
|
17
14670-035-030 Sprocket (25t) |
14670-035-030 |
US $21.47 |
||
| replacement | |||||
|
17
|
17
14670-GBJ-M30 Sprocket (25t) |
14670-GBJ-M30 |
from US $21.08 |
||
|
18
|
18
14675-035-060
Spindle,sprocket
|
14675-035-060 |
— | ||
|
19
|
19
90081-035-000 Bolt, sealing (14mm)Use up to Engine SN 051861M |
90081-035-000 |
from US $4.74 |
||
|
20
|
20
90081-086-000 Bolt, sealing (14mm)Use from Engine SN 051862M |
90081-086-000 |
from US $5.77 |
||
|
21
|
21
90083-035-010 Bolt, knock (5mm) |
90083-035-010 |
from US $2.37 |
||
|
22
|
22
90441-035-000 Washer, sealing, 14mm |
90441-035-000 |
from US $2.59 |
||
|
23
|
23
90481-035-000 Washer, 8mm |
90481-035-000 |
from US $1.92 |
||
|
24
|
24
91301-216-000 O-ring, 5.5x1.5Use from Engine SN 051862M |
91301-216-000 |
from US $3.40 |
||
|
25
|
25
94001-080-000-S NutHEX., 8MM Use from Engine SN 051862M |
94001-080-000-S |
from US $0.40 |
||
