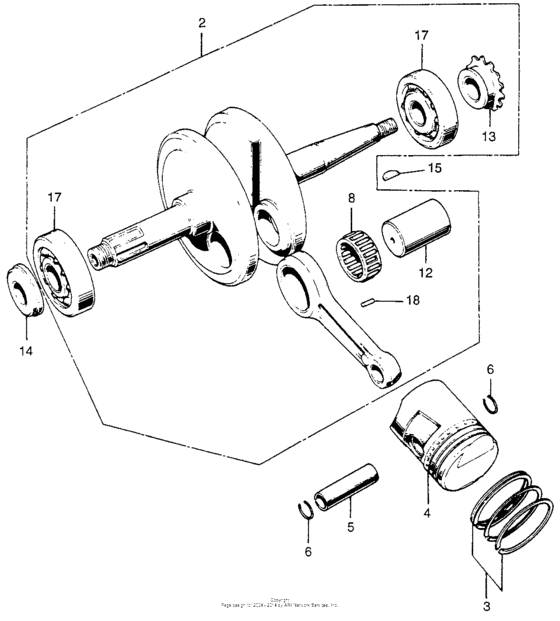

Crankshaft + piston Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
13000-087-791
Crankshaft
Use up to Engine SN 052625M |
13000-087-791 |
— | ||
|
3
|
3
13010-087-023 Ring set (std) |
13010-087-023 |
from US $18.77 |
||
|
3
|
3
13020-087-023
Ring set (os) (0.25)
(Optional). |
13020-087-023 |
— | ||
|
3
|
3
13030-087-023 Ring set (os) (0.50)(Optional). |
13030-087-023 |
US $31.50 |
||
|
3
|
3
13040-087-023
Ring set (os) (0.75)
(Optional). |
13040-087-023 |
— | ||
|
3
|
3
13050-087-023
Ring set (1.00)
(Optional). |
13050-087-023 |
— | ||
|
4
|
4
13101-087-712
Piston (std)
|
13101-087-712 |
— | ||
|
4
|
4
13102-087-712
Piston (os) (0.25)
(Optional). |
13102-087-712 |
— | ||
|
4
|
4
13103-087-712
Piston (os) (0.50)
(Optional). |
13103-087-712 |
— | ||
|
4
|
4
13104-087-712
Piston (0.75)
(Optional). |
13104-087-712 |
— | ||
|
4
|
4
13105-087-712
Piston (1.00)
(Optional). |
13105-087-712 |
— | ||
|
5
|
5
13111-GB0-910 Pin, piston |
13111-GB0-910 |
from US $6.81 |
||
|
6
|
6
94601-13000 Clip, piston pin, 13mm |
94601-13000 |
from US $0.44 |
||
|
8
|
8
13211-035-000 Retainer, roller |
13211-035-000 |
US $17.27 |
||
|
12
|
12
13381-GB1-900
Pin, crank
|
13381-GB1-900 |
— | ||
|
13
|
13
14311-035-000 Sprocket (14t) |
14311-035-000 |
from US $11.25 |
||
|
14
|
14
22911-GB4-680 Collar (17mm) |
22911-GB4-680 |
from US $3.92 |
||
|
15
|
15
90701-HB6-010 Key (25x14x4)Use up to Engine SN 052625M |
90701-HB6-010 |
from US $2.87 |
||
|
17
|
17
96100-6304000 Bearing, radial ball, 6304 |
96100-6304000 |
from US $8.44 |
||
|
18
|
18
91101-001-030 Roller, rod (2.5x10) |
91101-001-030 |
from US $2.29 |
