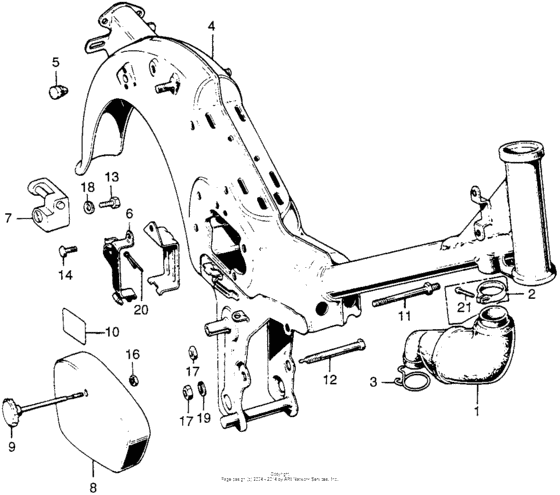

Frame Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17253-040-030
Tube,cleaner
|
17253-040-030 |
— | ||
|
2
|
2
9501834250 Band (34) |
9501834250 |
from US $3.26 |
||
|
3
|
3
17256-041-000
Band b,tube
|
17256-041-000 |
— | ||
|
4
|
4
50100-087-761-Z
Frame
Use up to Frame SN 034799M |
50100-087-761-Z |
— | ||
|
5
|
5
50318-041-600 Plug, useless hole |
50318-041-600 |
from US $1.22 |
||
|
6
|
6
50373-033-010-B
Band, battery *nh1*
|
50373-033-010-B |
— | ||
|
7
|
7
50710-086-007 Holder assy., helmetUse from Frame SN 043362M |
50710-086-007 |
from US $24.77 |
||
|
8
|
8
83600-041-000ZX
Box,battery *r-8*
|
83600-041-000ZX |
— | ||
|
8
|
8
83600-041-000BA
Box,battery
|
83600-041-000BA |
— | ||
|
8
|
8
83600-041-000DY
Box,battery
|
83600-041-000DY |
— | ||
|
8
|
8
83600-041-000XL
Box, battery
|
83600-041-000XL |
— | ||
|
9
|
9
83650-003-000 Latch, battery box |
83650-003-000 |
from US $6.36 |
||
|
10
|
10
87506-087-680 Mark,batteryUse from Frame SN 043362M |
87506-087-680 |
US $3.85 |
||
|
11
|
11
90112-003-000 Bolt, eng |
90112-003-000 |
from US $10.21 |
||
|
12
|
12
90116-001-010 Bolt, rr. engine |
90116-001-010 |
from US $6.81 |
||
|
13
|
13
92101-06010-0A Bolt, hex., 6x10Use from Frame SN 043362M |
92101-06010-0A |
from US $0.44 |
||
|
14
|
14
92301-06016-0A BoltRECESSED, 6X16 |
92301-06016-0A |
from US $0.52 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
20
|
20
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
21
|
21
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
