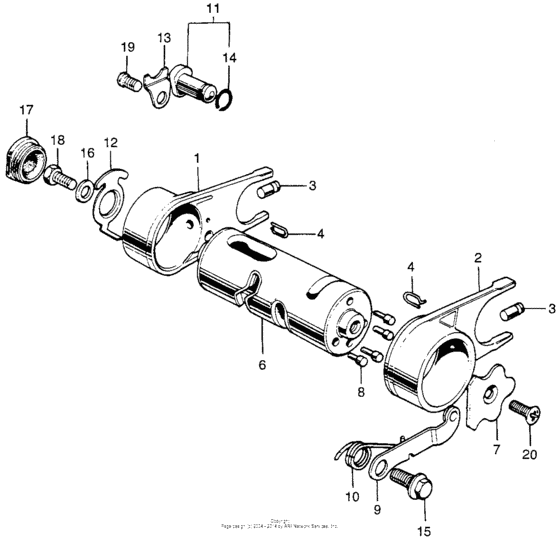

Gearshift drum Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-087-303
Fork,l gear shift
|
24211-087-303 |
— | ||
|
2
|
2
24221-041-010 Fork, r. gearshift |
24221-041-010 |
from US $55.35 |
||
|
3
|
3
24261-028-010 Pin, shift fork |
24261-028-010 |
US $3.37 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-740 Pin |
24261-121-740 |
from US $2.22 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
4
|
4
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
6
|
6
24301-045-672 Drum,gearshift |
24301-045-672 |
US $60.91 |
||
| replacement | |||||
|
6
|
6
24301-045-673
Drum, gearshift
|
24301-045-673 |
— | ||
|
6
|
6
24301-045-673
Drum, gearshift
|
24301-045-673 |
— | ||
|
7
|
7
24411-041-020
Plate,drum ,shift
|
24411-041-020 |
— | ||
|
8
|
8
24421-041-000 Pin, gearshift drum |
24421-041-000 |
from US $2.22 |
||
|
9
|
9
24430-041-010 Stpr.,shift drum |
24430-041-010 |
from US $9.62 |
||
|
10
|
10
24435-GB2-710
Spring shift.
|
24435-GB2-710 |
— | ||
|
11
|
11
35750-001-020 Contact assy. |
35750-001-020 |
from US $6.51 |
||
|
12
|
12
35753-035-010 Rotor |
35753-035-010 |
US $3.85 |
||
|
13
|
13
35755-001-020 Plate |
35755-001-020 |
US $2.22 |
||
|
14
|
14
37551-001-000 O-ring (7x1.6) |
37551-001-000 |
US $3.18 |
||
|
15
|
15
90023-041-010 Bolt |
90023-041-010 |
from US $3.23 |
||
|
16
|
16
90417-041-000 Washer, gearshift drum side |
90417-041-000 |
from US $2.59 |
||
|
17
|
17
90801-035-000 Plug, rubber (19mm) |
90801-035-000 |
from US $2.22 |
||
|
18
|
18
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
19
|
19
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
20
|
20
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
