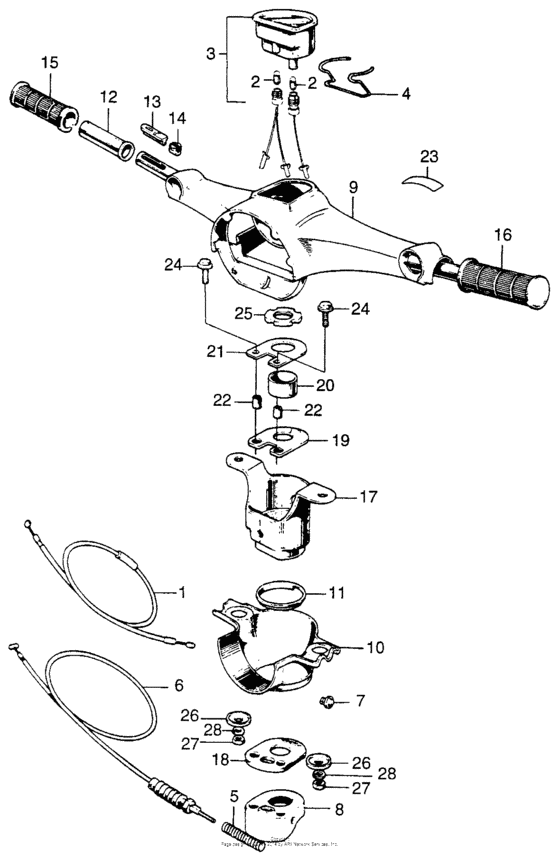

Handlebar Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-086-010
Cable comp,throt.
|
17910-086-010 |
— | ||
|
2
|
2
34908-001-000 Bulb (6v1.5w) |
34908-001-000 |
from US $6.51 |
||
|
3
|
3
37200-087-761
Speedometer assy
|
37200-087-761 |
— | ||
|
4
|
4
37244-041-010
Spring, meter
|
37244-041-010 |
— | ||
|
5
|
5
45437-001-000 Spring, fr |
45437-001-000 |
from US $3.02 |
||
|
6
|
6
45450-065-405 Cable comp,fr,brkUse up to Frame SN 034799M |
45450-065-405 |
from US $19.45 |
||
|
7
|
7
50317-254-000 Plug, useless hole |
50317-254-000 |
from US $2.22 |
||
|
8
|
8
51102-041-020-Z
Plate, fork top
|
51102-041-020-Z |
— | ||
|
9
|
9
53100-087-760-Z
Handlebar
|
53100-087-760-Z |
— | ||
|
10
|
10
53120-087-760AW
Cover,handle.un
|
53120-087-760AW |
— | ||
|
10
|
10
53120-087-760BA
Cover,handle.un
|
53120-087-760BA |
— | ||
|
10
|
10
53120-087-760DY
Cover,handle und.
|
53120-087-760DY |
— | ||
|
10
|
10
53120-087-760XL
Cover,handle.un
|
53120-087-760XL |
— | ||
|
11
|
11
53125-041-000
Mount rubber
|
53125-041-000 |
— | ||
|
12
|
12
53141-034-000 Pipe, grip |
53141-034-000 |
from US $10.18 |
||
|
13
|
13
53161-033-000 Hinge, wire |
53161-033-000 |
from US $5.62 |
||
|
14
|
14
53162-001-020
Holder throttle
|
53162-001-020 |
— | ||
|
15
|
15
95011-11100
Clip,a r handle
|
95011-11100 |
— | ||
|
16
|
16
95011-11200
Clip,a l handle
|
95011-11200 |
— | ||
|
17
|
17
53231-041-050-Z Bridge,fork top |
53231-041-050-Z |
US $71.10 |
||
|
18
|
18
53232-041-000
Rubber a bridge
|
53232-041-000 |
— | ||
|
19
|
19
53233-046-750 Rubber b bridge |
53233-046-750 |
US $6.10 |
||
|
20
|
20
53234-041-000 Collar, stem |
53234-041-000 |
US $3.92 |
||
|
21
|
21
53235-041-010
Washer, top bridge
|
53235-041-010 |
— | ||
|
22
|
22
53236-041-000 Collar,top bridge |
53236-041-000 |
from US $1.42 |
||
|
23
|
23
87560-323-670-A Mark,cautionUse from Frame SN 043362M |
87560-323-670-A |
from US $4 |
||
|
24
|
24
90117-041-000
Bolt top bridge
|
90117-041-000 |
— | ||
|
25
|
25
95020-13100 Nut,c.stem |
95020-13100 |
US $2.07 |
||
|
26
|
26
90518-041-010
Washer handle
|
90518-041-010 |
— | ||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
28
|
28
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
