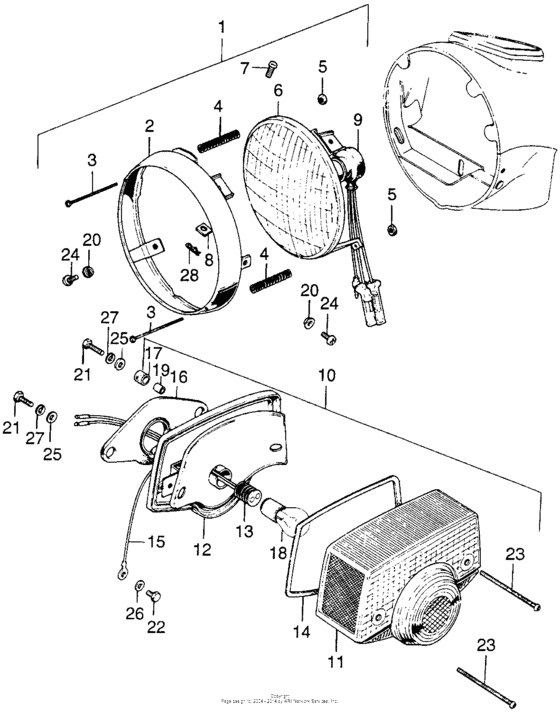

Headlight + tailight Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-174-672
Headlight assy
|
33100-174-672 |
— | ||
|
2
|
2
33101-087-761
Rim, headlight
|
33101-087-761 |
— | ||
|
3
|
3
33102-087-761
Screw
|
33102-087-761 |
— | ||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $3.67 |
||
|
5
|
5
33117-041-003 Nut, beam adj.Use up to Frame SN 017961M |
33117-041-003 |
from US $2.81 |
||
|
5
|
5
94001-030000S Nut, hex., 3mmUse from Frame SN 017962M |
94001-030000S |
from US $0.37 |
||
|
6
|
6
33120-174-671 Headlight unit |
33120-174-671 |
from US $71.96 |
||
|
7
|
7
33125-087-761
Screw,unit.holder
|
33125-087-761 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-111-671 Cover, rubber |
33130-111-671 |
US $3.81 |
||
|
10
|
10
33701-077-671
Taillight, unit
|
33701-077-671 |
— | ||
|
11
|
11
33702-077-671 Lens,tail-light |
33702-077-671 |
from US $41.07 |
||
|
12
|
12
33703-077-671 Base,taillight |
33703-077-671 |
from US $47.87 |
||
|
13
|
13
33708-077-671 Tial-light,cord |
33708-077-671 |
US $9.32 |
||
|
14
|
14
33709-077-671 Packing lens |
33709-077-671 |
from US $2.74 |
||
|
15
|
15
33712-077-670
Wire
|
33712-077-670 |
— | ||
|
16
|
16
33719-041-300
Packing,base
|
33719-041-300 |
— | ||
|
17
|
17
33719-107-671
Packing b,base
|
33719-107-671 |
— | ||
|
18
|
18
34906-202-670 Bulb, tail light |
34906-202-670 |
from US $4.07 |
||
|
19
|
19
84706-107-671
Collar,set,braket
|
84706-107-671 |
— | ||
|
20
|
20
90520-041-010
Washer, light set
|
90520-041-010 |
— | ||
|
21
|
21
92101-05016-0A Bolt, hex., 5x16 |
92101-05016-0A |
from US $0.37 |
||
|
22
|
22
92101-06006-0A Bolt, hex., 6x6 |
92101-06006-0A |
from US $0.44 |
||
|
23
|
23
93500-040-500-B Screw cross 4x50 |
93500-040-500-B |
from US $0.59 |
||
|
24
|
24
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
25
|
25
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
28
|
28
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
