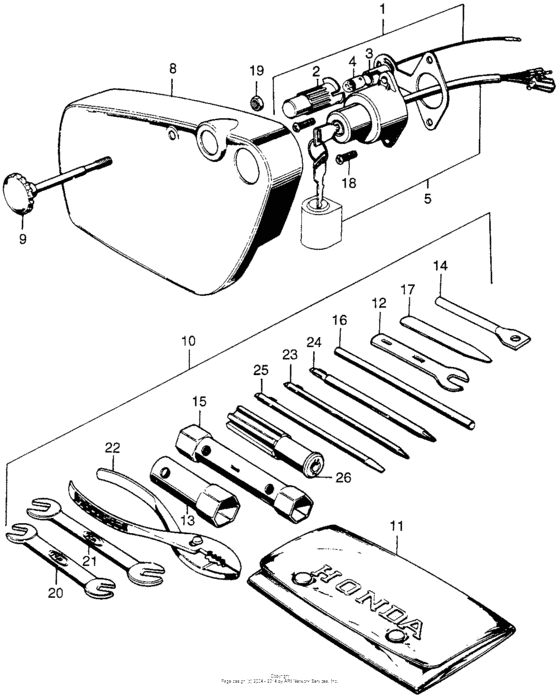

Key lamp + tool Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33150-087-000
Lamp assy key
|
33150-087-000 |
— | ||
|
2
|
2
33151-046-751
Lens key lamp
|
33151-046-751 |
— | ||
|
3
|
3
33152-087-000
Base comp keylamp
|
33152-087-000 |
— | ||
|
4
|
4
34902-202-000 Bulb, dash (6v 3w) |
34902-202-000 |
from US $2.29 |
||
|
5
|
5
35010-087-761
Switch kit, main
|
35010-087-761 |
— | ||
|
8
|
8
83500-087-000AW
Box,comp.tool
|
83500-087-000AW |
— | ||
|
8
|
8
83500-087-000BA
Box,comp.tool
|
83500-087-000BA |
— | ||
|
8
|
8
83500-087-000DY
Box,tool
|
83500-087-000DY |
— | ||
|
8
|
8
83500-087-000XL
Box,comp.tool
|
83500-087-000XL |
— | ||
|
9
|
9
83550-001-000ZA
Latch,tool *nh-1*
|
83550-001-000ZA |
— | ||
|
10
|
10
89010-041-010
Tool assy
|
89010-041-010 |
— | ||
|
11
|
11
89101-011-000
Bag,tool 160
|
89101-011-000 |
— | ||
|
12
|
12
89203-200-000
Spanner, 9mm
|
89203-200-000 |
— | ||
|
13
|
13
89214-041-000 Wrench,box 23mm |
89214-041-000 |
US $5.33 |
||
|
14
|
14
89215-001-000
Wrench,soket
Use up to Frame SN 043961M |
89215-001-000 |
— | ||
|
14
|
14
89215-107-000
Wrench,soket
Use up to Frame SN 043961M |
89215-107-000 |
— | ||
|
15
|
15
89216-041-010
Wrench,box
|
89216-041-010 |
— | ||
|
15
|
15
9900416170 Wrench, box (p16x17) |
9900416170 |
from US $4.29 |
||
|
16
|
16
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
17
|
17
89231-001-000
Gauge, tappet
|
89231-001-000 |
— | ||
|
18
|
18
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
20
|
20
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
21
|
21
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
22
|
22
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
22
|
22
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
23
|
23
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
24
|
24
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
25
|
25
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
26
|
26
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
