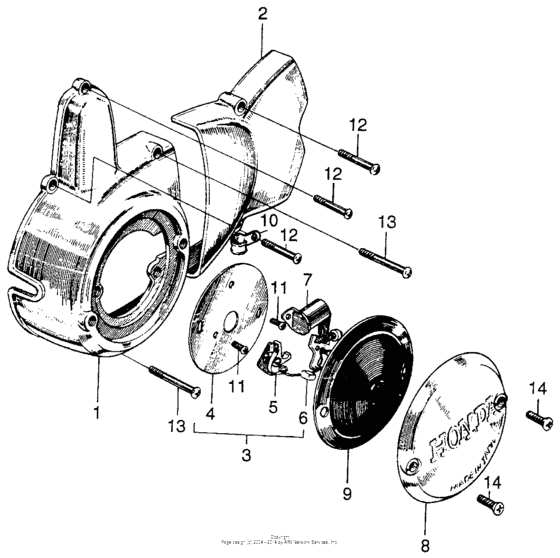

Left crankcase cover + points Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-039-020
Cover, l. crankcase
Use up to Engine SN 051861M |
11341-039-020 |
— | ||
|
2
|
2
11361-039-020
Cover, l. rr.
|
11361-039-020 |
— | ||
|
3
|
3
30200-039-154
Breaker,contact
|
30200-039-154 |
— | ||
|
4
|
4
30201-039-015
Plate, points base
|
30201-039-015 |
— | ||
|
4
|
4
30201-039-154
Plate,contact
|
30201-039-154 |
— | ||
|
5
|
5
30202-039-154
Breaker,contact
|
30202-039-154 |
— | ||
|
6
|
6
30205-300-154 Felt,oil |
30205-300-154 |
US $5.92 |
||
|
6
|
6
30205-205-003
Felt,oil
|
30205-205-003 |
— | ||
|
7
|
7
30250-205-023
Condenser
|
30250-205-023 |
— | ||
|
7
|
7
30251-003-005
Condenser
|
30251-003-005 |
— | ||
|
7
|
7
30251-039-154
Condenser comp.
|
30251-039-154 |
— | ||
|
8
|
8
30371-003-000
Cover, breaker
|
30371-003-000 |
— | ||
|
9
|
9
30391-030-000
Packing, cover
|
30391-030-000 |
— | ||
|
10
|
10
32921-039-000 Clip,dynamo cord |
32921-039-000 |
from US $5.33 |
||
|
11
|
11
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
12
|
12
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
13
|
13
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
14
|
14
93600-050-200-A ScrewFLAT, 5X20 |
93600-050-200-A |
from US $0.37 |
