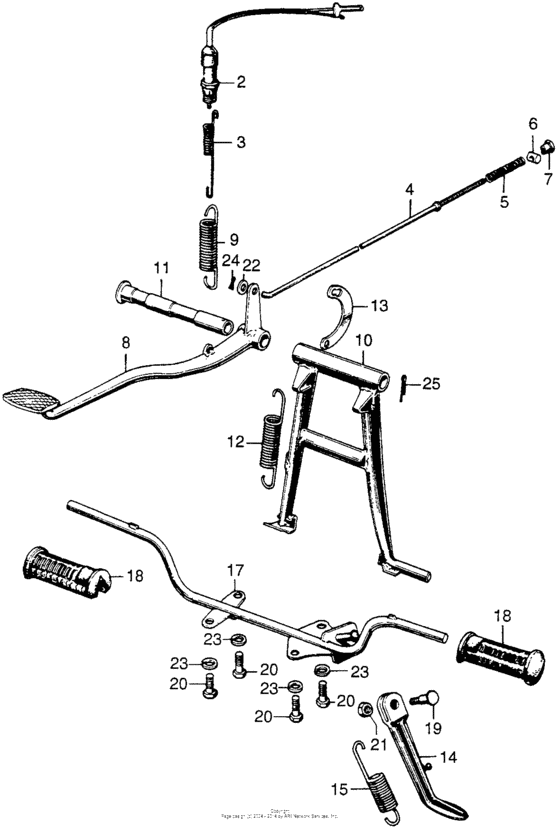

Main stand + side stand Diagram Honda C70 CUB

Year
0000
Model code
C70M A
Sales region
USA
Frame
C70M017962 -
Engine Capacity
70

Difficulties in parts search?

Parts list
Main stand + side stand

Difficulties in parts search?

Main stand + side stand
Description OEM Part # Price
2
2
35350-GB2-505
Sw assy,rear stop

35350-GB2-505

3
3

35357-041-000

Spring, switch

35357-041-000

US $2.72

4
4

43451-397-000

Rod,rr.brake

43451-397-000

from US $6.81

5
5

9501473100

Spring a, brake rod

9501473100

from US $0.74

6
6

95015-31001

Joint a

BRAKE ARM

95015-31001

from US $0.74

7
7

9501541000

Nut a, brake rod adjusting

9501541000

from US $0.81

8
8

46500-086-720

Pedal,rear brake

Use up to Frame SN 043961M

46500-086-720

US $49.37

9
9

46514-086-720

Spring,brk.pedal

46514-086-720

from US $4.29

10
10
50500-041-731-B
Stand,main

50500-041-731-B

11
11
50512-041-000
Pipe,rear brake

50512-041-000

12
12

9501471402

Spring d, main stand

9501471402

from US $1.55

13
13

50523-041-000

Hook,stand spring

50523-041-000

from US $3.03

14
14
50530-086-000
Bar, side stand

50530-086-000

15
15

9501472102

Spring a, side stand

9501472102

from US $1.08

17
17
50610-087-790ZA
Bar, step *nh1*

50610-087-790ZA

18
18

95011-21000

Rubber a,step

95011-21000

from US $2.81

19
19

90108-223-000

Bolt

90108-223-000

from US $5.33

20
20

92101-08020-0A

Bolt

HEX., 8X20

92101-08020-0A

from US $0.52

21
21

94002-100-000-S

Nut

HEX., 10MM

94002-100-000-S

from US $0.55

22
22

94101-06800

Washer

PLAIN, 6MM

94101-06800

from US $0.37

23
23

94111-08000

Washer

SPRING, 8MM

94111-08000

from US $0.37

24
24

9420116250

Pin, cotter (1.6x25)

9420116250

from US $0.44

25
25

94201-30250

Pin

SPLIT, 3.0X25

94201-30250

from US $0.44

replacement
25
25

9420130450

Pin, cotter (3.0x45)

9420130450

from US $0.44

25
25

9420130450

Pin, cotter (3.0x45)

9420130450

from US $0.44

Main stand + side stand Diagram Honda C70 CUB USA 13581173-786306
