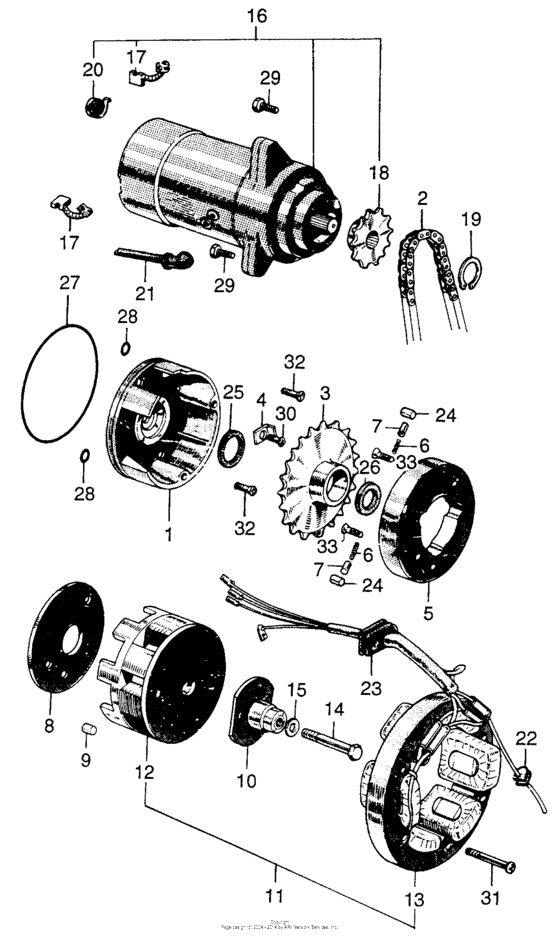

Starting motor + alternator Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11321-039-000
Base, alternator
|
11321-039-000 |
— | ||
|
2
|
2
28101-039-000 Chain, starting |
28101-039-000 |
US $23.19 |
||
|
3
|
3
28110-039-000
Sprocket (37t)
|
28110-039-000 |
— | ||
|
4
|
4
28117-039-000
Plate
|
28117-039-000 |
— | ||
|
5
|
5
28120-039-010
Clutch, starter
|
28120-039-010 |
— | ||
|
6
|
6
28125-003-000
Spring, clutch
|
28125-003-000 |
— | ||
|
7
|
7
28126-003-000
Cap, spring
|
28126-003-000 |
— | ||
|
8
|
8
28128-039-000
Plate
|
28128-039-000 |
— | ||
|
9
|
9
28129-003-000
Pin (outer)
|
28129-003-000 |
— | ||
|
10
|
10
30220-039-164
Advancer,spark
|
30220-039-164 |
— | ||
|
11
|
11
31100-039-055
Alternator assy.
|
31100-039-055 |
— | ||
|
12
|
12
31101-039-035
Rotor
|
31101-039-035 |
— | ||
|
13
|
13
31102-039-025
Stator Comp
|
31102-039-025 |
— | ||
|
14
|
14
31104-003-004
Bolt, rotor setting
|
31104-003-004 |
— | ||
|
15
|
15
31105-003-000
Washer
|
31105-003-000 |
— | ||
|
16
|
16
31200-003-006 Starter motor assy. |
31200-003-006 |
US $189.48 |
||
|
17
|
17
31201-003-006
Brush set, carbon
|
31201-003-006 |
— | ||
|
18
|
18
31202-003-006
Sprocket
|
31202-003-006 |
— | ||
|
19
|
19
31203-003-006
Clip
|
31203-003-006 |
— | ||
|
20
|
20
31204-003-006
Spring, brush
|
31204-003-006 |
— | ||
|
21
|
21
32401-003-000
Cable, starter motor
|
32401-003-000 |
— | ||
|
22
|
22
32956-039-000 Grommet |
32956-039-000 |
US $6.48 |
||
|
23
|
23
32971-039-000
Grommet
|
32971-039-000 |
— | ||
|
24
|
24
91101-039-000
Roller
|
91101-039-000 |
— | ||
|
25
|
25
91201-179-711
Oil seal30x42x4.5
|
91201-179-711 |
— | ||
|
26
|
26
91202-003-000
Oil seal
|
91202-003-000 |
— | ||
|
27
|
27
91301-035-003 O-ring (107x2) |
91301-035-003 |
from US $3.20 |
||
|
28
|
28
91317-171-003 O-ring (6x1.7) |
91317-171-003 |
from US $2.66 |
||
|
29
|
29
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
30
|
30
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
30
|
30
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
31
|
31
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
32
|
32
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
33
|
33
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
||
