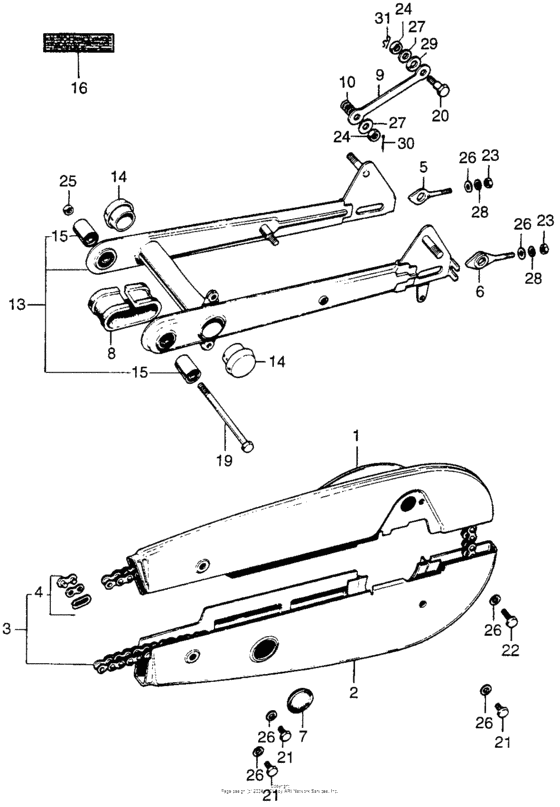

Swingarm + chain case Diagram Honda C70 CUB
- Year
- 0000
- Model code
- C70M A
- Sales region
- USA
- Frame
- C70M017962 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-065-010-Z
Case,chain upper
|
40510-065-010-Z |
— | ||
|
2
|
2
40520-065-010-Z
Case,chain under
|
40520-065-010-Z |
— | ||
|
3
|
3
405W3-179-505 Chain,drive |
405W3-179-505 |
from US $26.79 |
||
|
4
|
4
40531-098-003 Master link |
40531-098-003 |
from US $4.29 |
||
|
5
|
5
9501410010 Adjuster s, r. chain |
9501410010 |
from US $1.63 |
||
|
6
|
6
95014-10020 Adjuster,sl.chain |
95014-10020 |
from US $1.63 |
||
|
7
|
7
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
7
|
7
40545-141-000 Cap,chain case |
40545-141-000 |
from US $3.47 |
||
| replacement | |||||
|
7
|
7
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
8
|
8
40591-041-000 Packing chaincase |
40591-041-000 |
US $5.70 |
||
|
9
|
9
43431-001-020
Link
|
43431-001-020 |
— | ||
|
10
|
10
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
13
|
13
52100-040-682-Z
Swingarm, rr.
|
52100-040-682-Z |
— | ||
|
14
|
14
52161-001-505 Cap *y3l* |
52161-001-505 |
US $5.48 |
||
|
15
|
15
52181-001-300 Rubber bush |
52181-001-300 |
from US $6.07 |
||
|
16
|
16
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
19
|
19
90121-092-671
Bolt,fork pivot
|
90121-092-671 |
— | ||
|
20
|
20
90127-400-000 Bolt,brake stop. |
90127-400-000 |
from US $7.99 |
||
|
21
|
21
92101-06006-0A Bolt, hex., 6x6 |
92101-06006-0A |
from US $0.44 |
||
|
22
|
22
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
23
|
23
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
24
|
24
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
25
|
25
90351-268-000 Nut (10mm)Use from Frame SN 046542M |
90351-268-000 |
from US $4.11 |
||
|
25
|
25
9403010000 Nut, hex., 10mmUse up to Frame SN 046541M |
9403010000 |
from US $0.55 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
29
|
29
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
30
|
30
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
31
|
31
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
