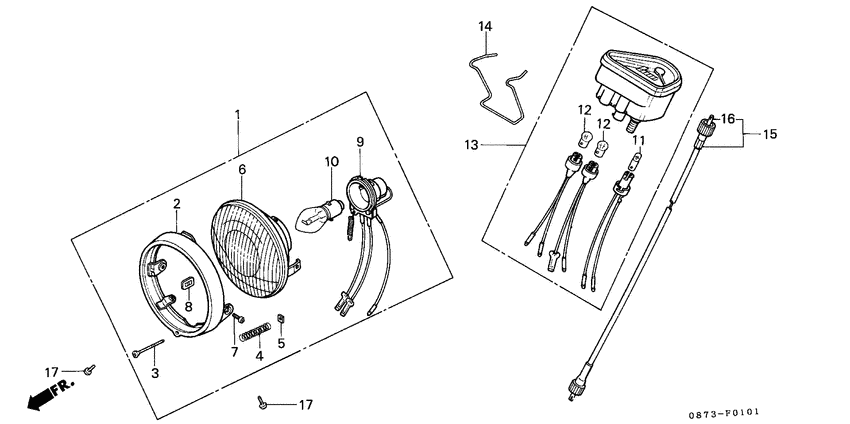

Headlight/speedometer (2) Diagram Honda C70
- Year
- 1977
- Model code
- C70
- Sales region
- England
- Frame
- C706115364 - C706193904
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-087-741 Light assy.,head |
33100-087-741 |
US $95.05 |
||
|
2
|
2
33101-041-600
Rim,head light
|
33101-041-600 |
— | ||
|
3
|
3
33102-041-003 Screw,head light |
33102-041-003 |
from US $3.23 |
||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $3.67 |
||
|
5
|
5
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
6
|
6
33121-041-604
Unit,head light
|
33121-041-604 |
— | ||
|
7
|
7
33125-200-033
Screw,unit holder
|
33125-200-033 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-087-741
Socket,head light
|
33130-087-741 |
— | ||
|
10
|
10
34901-030-673 Bulb, head light |
34901-030-673 |
US $4.93 |
||
|
11
|
11
34908-001-000 Bulb (6v1.5w) |
34908-001-000 |
from US $6.51 |
||
|
12
|
12
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
13
|
13
37200-090-731
Speedometer assy
|
37200-090-731 |
— | ||
|
13
|
13
37200-087-741
Speedometer assy
|
37200-087-741 |
— | ||
|
14
|
14
37244-041-010
Spring, meter
|
37244-041-010 |
— | ||
|
15
|
15
44830-090-600
Cable,spdmt.
|
44830-090-600 |
— | ||
|
16
|
16
44831-034-000
Cable, inn. meter
|
44831-034-000 |
— | ||
| replacement | |||||
|
16
|
16
44830-041-000
Cable,speedometer
|
44830-041-000 |
— | ||
|
17
|
17
90101-087-720 Screw, headlight setting |
90101-087-720 |
from US $2.74 |
||
