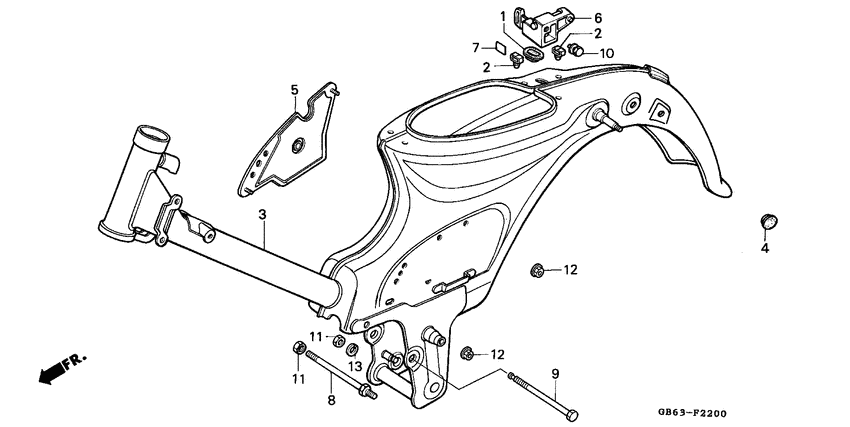

Frame (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
32985-422-000 Grommet, cable |
32985-422-000 |
US $3.25 |
||
|
3
|
3
50100-GB5-600ZA
Body,frame*r-23*
|
50100-GB5-600ZA |
— | ||
|
3
|
3
50100-GB5-600ZB
Body,frame*pb-52*
|
50100-GB5-600ZB |
— | ||
|
4
|
4
50318-041-600 Plug, useless hole |
50318-041-600 |
from US $1.22 |
||
|
5
|
5
50385-GB4-000
Pl,silencer
|
50385-GB4-000 |
— | ||
|
6
|
6
50710-GB4-007 Holder assy., helmet |
50710-GB4-007 |
from US $35.22 |
||
|
7
|
7
87511-323-670 Label, helmet holder |
87511-323-670 |
from US $3.55 |
||
|
7
|
7
87511-415-620
Label,helmet hold
|
87511-415-620 |
— | ||
|
8
|
8
90112-003-000 Bolt, eng |
90112-003-000 |
from US $10.21 |
||
|
9
|
9
90116-001-010 Bolt, rr. engine |
90116-001-010 |
from US $6.81 |
||
|
10
|
10
93482-060-100-0 Bolt-washer, 6x10 |
93482-060-100-0 |
US $0.52 |
||
|
11
|
11
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
12
|
12
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
13
|
13
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
