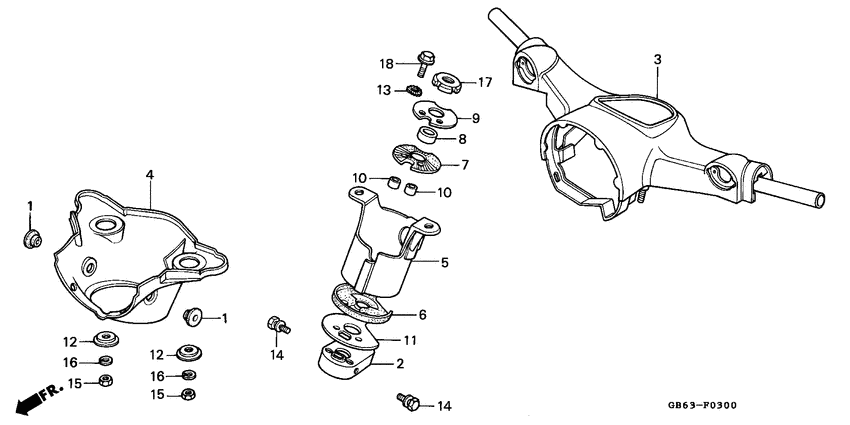

Handle/top bridge (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17911-179-700
Grmt,throt cable
|
17911-179-700 |
— | ||
|
2
|
2
51102-086-720 Plate,fork top |
51102-086-720 |
US $10.80 |
||
|
3
|
3
53100-GB4-000ZH Hndl,strg.*r-23* |
53100-GB4-000ZH |
US $136.58 |
||
|
3
|
3
53100-GB4-000ZJ Hndl strg*pb-52* |
53100-GB4-000ZJ |
US $136.58 |
||
|
4
|
4
53120-GB4-020ZH Cover,hndl*r-23* |
53120-GB4-020ZH |
US $30.84 |
||
|
4
|
4
53120-GB4-020ZJ
Cover,hndl*pb-52*
|
53120-GB4-020ZJ |
— | ||
|
5
|
5
53231-GB5-670
Pl,fork top bridg
|
53231-GB5-670 |
— | ||
|
6
|
6
53232-172-010
Seat rubber a
|
53232-172-010 |
— | ||
|
7
|
7
53233-172-000 Seat rubber b |
53233-172-000 |
US $4.44 |
||
|
8
|
8
53234-171-000 Collar,stem |
53234-171-000 |
US $4.07 |
||
|
9
|
9
53235-086-010
Washer,top bridge
|
53235-086-010 |
— | ||
|
10
|
10
53236-171-000 Collar, top bridge |
53236-171-000 |
from US $2.15 |
||
|
11
|
11
53237-172-000
Wash,bridge seat
|
53237-172-000 |
— | ||
|
12
|
12
90518-086-000 Washer,handl sett |
90518-086-000 |
US $3.03 |
||
|
13
|
13
90552-001-000 Washer, toothed |
90552-001-000 |
US $2.29 |
||
|
14
|
14
93481-08016 Bolt-washer,8x16 |
93481-08016 |
from US $0.59 |
||
| replacement | |||||
|
14
|
14
93401-0801600 Bolt-washer (8x16) |
93401-0801600 |
from US $0.67 |
||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
16
|
16
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
17
|
17
95020-13100 Nut,c.stem |
95020-13100 |
US $2.07 |
||
|
18
|
18
95800-080-320-0 Bolt,flange,8x32 |
95800-080-320-0 |
from US $0.74 |
||
| replacement | |||||
|
18
|
18
95801-0803200 Bolt, flange (8x32) |
95801-0803200 |
from US $0.74 |
||
