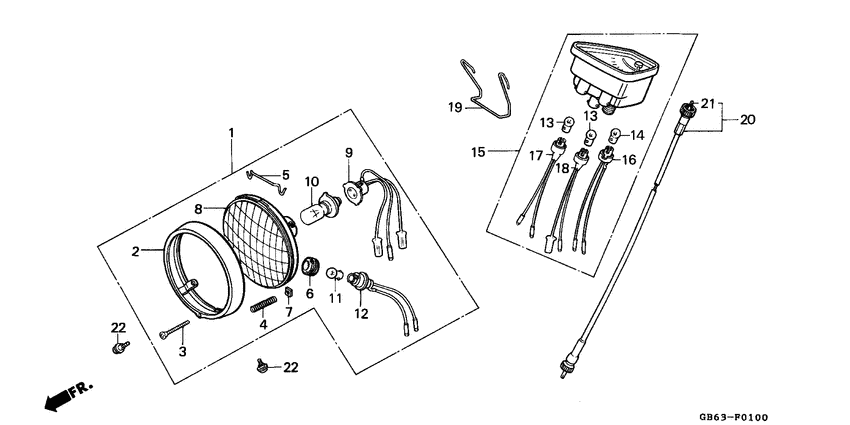

Headlight/speedometer (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-GB4-601
Headlight assy
|
33100-GB4-601 |
— | ||
|
2
|
2
33101-041-023 Rim,head light |
33101-041-023 |
US $20.81 |
||
|
3
|
3
33102-041-003 Screw,head light |
33102-041-003 |
from US $3.23 |
||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $3.67 |
||
|
5
|
5
33109-087-003 Spring holder |
33109-087-003 |
US $3.18 |
||
|
6
|
6
33111-088-000 Rubber,socket |
33111-088-000 |
US $4 |
||
|
7
|
7
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
8
|
8
33120-GB4-601
Headlight unit
|
33120-GB4-601 |
— | ||
|
9
|
9
33130-GB4-701
Socket,comp,h/l
|
33130-GB4-701 |
— | ||
|
10
|
10
34901-066-003 Bulb, headlight (stanley) (12v 25/25w) |
34901-066-003 |
from US $4.76 |
||
| replacement | |||||
|
10
|
10
34901-706-000 Bulb (12v25/25w) |
34901-706-000 |
US $8.70 |
||
|
11
|
11
34903-388-611 Bulb (12v4w) (t8/4) |
34903-388-611 |
from US $3.91 |
||
|
12
|
12
34904-086-003
Socket,position
|
34904-086-003 |
— | ||
|
13
|
13
34908-GA7-701 Bulb, wedge base (t10) (12v 3.4w) (nippon seiki) |
34908-GA7-701 |
from US $2.15 |
||
| replacement | |||||
|
13
|
13
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
14
|
14
34908-GB4-700 Bulb |
34908-GB4-700 |
US $3.18 |
||
|
15
|
15
37200-GB6-600
Speed meter(mph)
|
37200-GB6-600 |
— | ||
|
16
|
16
37224-GB4-000
Socket,illumi
|
37224-GB4-000 |
— | ||
|
17
|
17
37225-GB5-671
Socket,win/pilot
|
37225-GB5-671 |
— | ||
|
18
|
18
37226-GB4-600
Socket comp.,neut
|
37226-GB4-600 |
— | ||
|
19
|
19
37244-041-010
Spring, meter
|
37244-041-010 |
— | ||
|
20
|
20
44830-GB4-000
Cable,spdmt
|
44830-GB4-000 |
— | ||
| replacement | |||||
|
20
|
20
44830-GB4-680 Cable,speedometer |
44830-GB4-680 |
US $17.41 |
||
|
21
|
21
44831-382-010
Cable,inner
|
44831-382-010 |
— | ||
|
22
|
22
90101-087-720 Screw, headlight setting |
90101-087-720 |
from US $2.74 |
||
