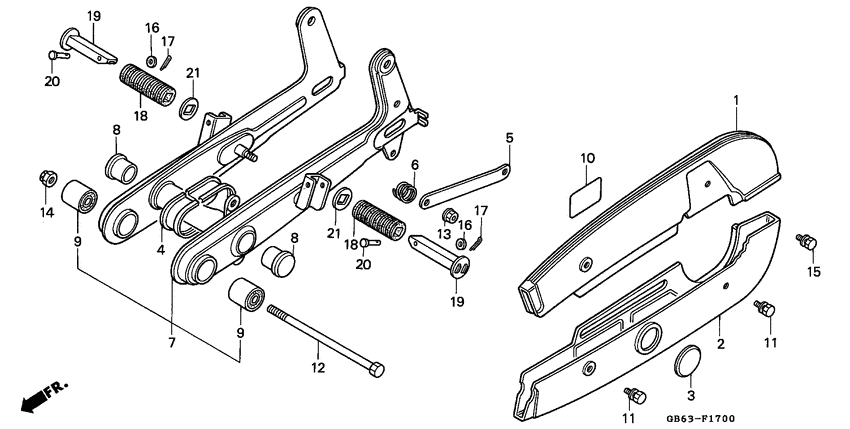

Rear fork/chain case (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-001-020YJ
Case,drive *pb52*
|
40510-001-020YJ |
— | ||
|
1
|
1
40510-001-020ZY
Case,chain*r-23*
|
40510-001-020ZY |
— | ||
|
2
|
2
40520-001-030YJ
Case,drive *pb52*
|
40520-001-030YJ |
— | ||
|
2
|
2
40520-001-030ZY
Case,chain*r-23*
|
40520-001-030ZY |
— | ||
|
3
|
3
40545-001-000-B Cap,chain ca*nh1* |
40545-001-000-B |
US $3.45 |
||
| replacement | |||||
|
3
|
3
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
4
|
4
40591-041-000 Packing chaincase |
40591-041-000 |
US $5.70 |
||
|
5
|
5
43431-086-720 Link,rear brake |
43431-086-720 |
US $8.39 |
||
|
6
|
6
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
7
|
7
52000-GB4-600ZA Fork,rr.*r-23* |
52000-GB4-600ZA |
US $249.22 |
||
|
7
|
7
52000-GB4-600ZB Fork,rr.*pb-52* |
52000-GB4-600ZB |
US $249.22 |
||
|
8
|
8
52161-051-000-B Cap,cross member |
52161-051-000-B |
from US $1.80 |
||
| replacement | |||||
|
8
|
8
52161-051-000 Cap, cross member side |
52161-051-000 |
from US $2.74 |
||
|
9
|
9
52181-001-300 Rubber bush |
52181-001-300 |
from US $6.07 |
||
|
10
|
10
87505-GB6-600 Mark,tire caution |
87505-GB6-600 |
US $5.10 |
||
|
11
|
11
90118-383-000 Bolt,washer 6x6 |
90118-383-000 |
US $2.96 |
||
|
12
|
12
90120-046-810 Bolt rr pivot |
90120-046-810 |
US $12.73 |
||
|
13
|
13
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
14
|
14
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
15
|
15
93481-0601600 Bolt-washer (6x16) |
93481-0601600 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
93401-060-160-0 Bolt-washer6X16 |
93401-060-160-0 |
from US $0.52 |
||
|
16
|
16
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.37 |
||
| replacement | |||||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94201-16150 PinSPLIT, 1.6X15 |
94201-16150 |
from US $0.37 |
||
| replacement | |||||
|
17
|
17
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
18
|
18
95011-31000 Rubber,pillon |
95011-31000 |
from US $1.85 |
||
|
19
|
19
95015-61000 Step,pillion |
95015-61000 |
from US $7.70 |
||
|
20
|
20
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
21
|
21
95015-91000 Washer,pillion |
95015-91000 |
from US $0.89 |
||
