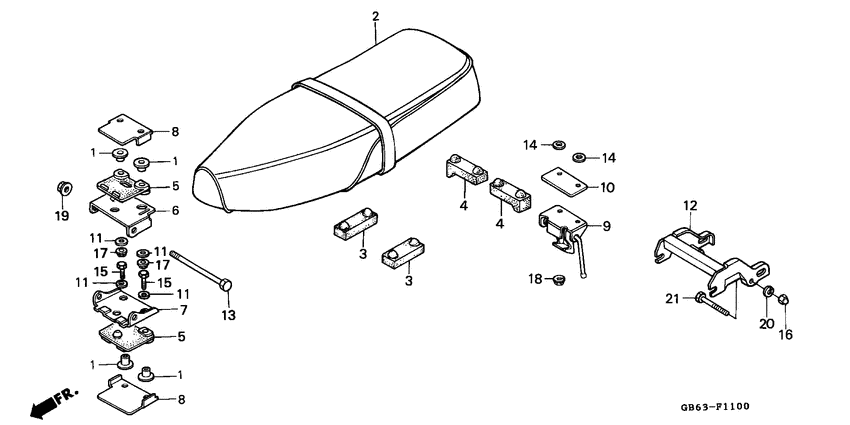

Seat (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17509-398-960 Collar,tank set |
17509-398-960 |
from US $3.92 |
||
|
2
|
2
77200-GB5-670ZB
Seat *type2*
|
77200-GB5-670ZB |
— | ||
|
3
|
3
77205-GB5-670 Rubber, seat setting |
77205-GB5-670 |
from US $4.74 |
||
|
4
|
4
77206-GB5-670
Rub,b,seat set.
|
77206-GB5-670 |
— | ||
|
5
|
5
77212-GB4-000
Rubber,seat set
|
77212-GB4-000 |
— | ||
|
6
|
6
77215-GB5-670
Hinge a,seat
|
77215-GB5-670 |
— | ||
|
7
|
7
77216-GB5-670
Hinge b,seat
|
77216-GB5-670 |
— | ||
|
8
|
8
77217-GB5-670
Plate,seat hinge
|
77217-GB5-670 |
— | ||
|
9
|
9
77230-GB4-600
Catch,comp,seat
|
77230-GB4-600 |
— | ||
|
10
|
10
77235-GB5-670
Pl,seat catch set
|
77235-GB5-670 |
— | ||
|
11
|
11
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
12
|
12
81500-GB4-600
Brkt,seat catch
|
81500-GB4-600 |
— | ||
|
13
|
13
90101-GB2-000 Bolt,seat hinge |
90101-GB2-000 |
US $4.74 |
||
|
14
|
14
90581-GB5-610 Washer, plain, 6mm |
90581-GB5-610 |
from US $2.22 |
||
|
15
|
15
9200006025 Bolt, hex., 6x25 |
9200006025 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
16
|
16
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
18
|
18
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
19
|
19
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
20
|
20
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
21
|
21
95300-080-500-0 Bolt,hex.,8x50 |
95300-080-500-0 |
US $0.74 |
||
