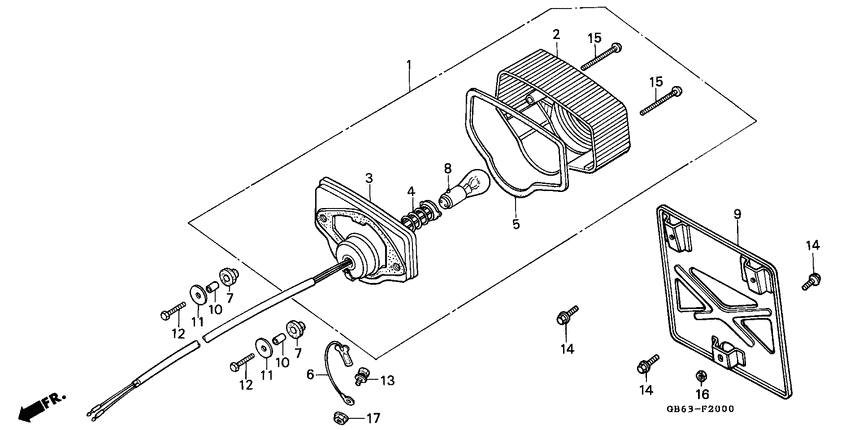

Taillight (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-GB5-600
Taillight unit
- 1124556 |
33701-GB5-600 |
— | ||
|
1
|
1
33701-GB5-601
Unit,taillight
1124557 - |
33701-GB5-601 |
— | ||
|
2
|
2
33702-323-604 Lens,taillight- 1124556 |
33702-323-604 |
US $37.47 |
||
|
2
|
2
33702-323-605
Lens,taillight
1124557 - |
33702-323-605 |
— | ||
|
3
|
3
33703-GB5-600
Base,taillight
|
33703-GB5-600 |
— | ||
|
4
|
4
33708-077-671 Tial-light,cord |
33708-077-671 |
US $9.32 |
||
|
5
|
5
33709-077-671 Packing lens |
33709-077-671 |
from US $2.74 |
||
|
6
|
6
33712-098-931
Cord,tail & earth
|
33712-098-931 |
— | ||
| replacement | |||||
|
6
|
6
33712-098-970
Cord tail & earth
|
33712-098-970 |
— | ||
|
7
|
7
33719-179-700 Grmt,taillight |
33719-179-700 |
US $2.96 |
||
|
8
|
8
34911-634-611 Bulb12V 21/5W) (ECE) (STANLEY |
34911-634-611 |
from US $2.96 |
||
|
9
|
9
84701-GB4-600
Brkt,no.plate
|
84701-GB4-600 |
— | ||
|
10
|
10
84706-342-000
Collar,tail light
|
84706-342-000 |
— | ||
|
11
|
11
90581-342-000 Washer, 20mm |
90581-342-000 |
from US $1.67 |
||
| replacement | |||||
|
11
|
11
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
12
|
12
92000-05018-0A Bolt,hex.,5x18 |
92000-05018-0A |
from US $0.37 |
||
| replacement | |||||
|
12
|
12
92101-05018-0A Bolt, hex. (5x18) |
92101-05018-0A |
from US $0.37 |
||
|
13
|
13
93481-060-100-0 Bolt-washer, 6x10 |
93481-060-100-0 |
from US $0.52 |
||
| replacement | |||||
|
13
|
13
93401-060-100-0 Bolt-washer,6x10 |
93401-060-100-0 |
from US $0.52 |
||
|
14
|
14
93481-060-120-0 Bolt-washer, 6x12 |
93481-060-120-0 |
from US $0.52 |
||
| replacement | |||||
|
14
|
14
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
15
|
15
93500-040-504-J Screw cross 4x50 |
93500-040-504-J |
US $0.81 |
||
|
16
|
16
94001-06000 NutHEX., 6MM |
94001-06000 |
from US $0.44 |
||
| replacement | |||||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
