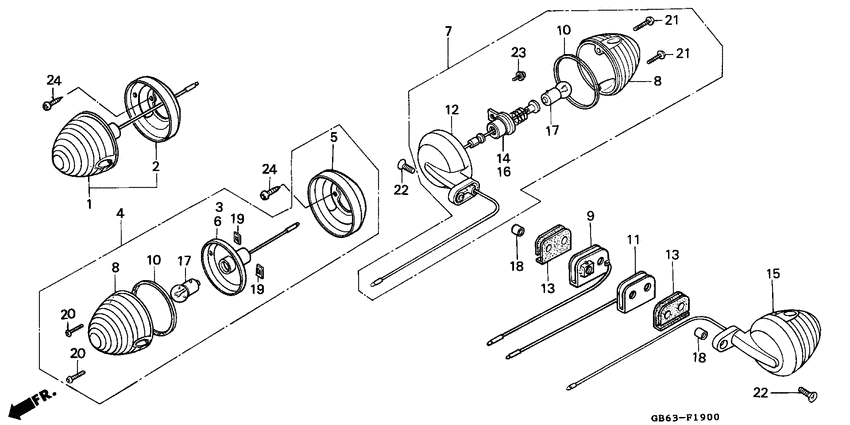

Winker (C90C) Diagram Honda C90 CUB
- Year
- 1982
- Model code
- C90C
- Sales region
- England
- Frame
- HA021122937 - HA021129446
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-GB4-601
Winker assy,r.fr.
|
33400-GB4-601 |
— | ||
|
2
|
2
33401-GB4-610
Base,r,fr winker
|
33401-GB4-610 |
— | ||
|
3
|
3
33410-179-701
Socket,r,winker
|
33410-179-701 |
— | ||
|
4
|
4
33450-GB4-601
Winker assy l.fr
|
33450-GB4-601 |
— | ||
|
5
|
5
33451-GB4-610
Base,l,fr winker
|
33451-GB4-610 |
— | ||
|
6
|
6
33460-179-701
Socket,l,winker
|
33460-179-701 |
— | ||
|
7
|
7
33600-GB4-600
Winker assy,r.rr.
|
33600-GB4-600 |
— | ||
|
8
|
8
33602-041-671 Lens,winker |
33602-041-671 |
US $5.48 |
||
|
9
|
9
33604-GB4-600
Stop,r.rr.winker
|
33604-GB4-600 |
— | ||
|
10
|
10
33604-041-013 Gasket, rr |
33604-041-013 |
US $2.65 |
||
|
11
|
11
33605-GB4-600
Stop,l.rr.winker
|
33605-GB4-600 |
— | ||
|
12
|
12
33605-124-831 Base,rr.winker |
33605-124-831 |
US $24.21 |
||
|
13
|
13
33606-354-000
Rubber,rr winker
|
33606-354-000 |
— | ||
|
14
|
14
33610-GB4-600
Socket,r.rr.winke
|
33610-GB4-600 |
— | ||
|
15
|
15
33650-GB4-600
Winker assy,l.rr.
|
33650-GB4-600 |
— | ||
|
16
|
16
33660-GB4-600
Socket,l.rr.wink.
|
33660-GB4-600 |
— | ||
|
17
|
17
34905-392-611
Bulb,winker
|
34905-392-611 |
— | ||
|
18
|
18
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
19
|
19
90310-041-000
Nut, special
|
90310-041-000 |
— | ||
|
20
|
20
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.37 |
||
|
21
|
21
93500-030-120-B Screw cross 3x12 |
93500-030-120-B |
US $0.52 |
||
|
22
|
22
93700-06025 Screw,cross 6x25 |
93700-06025 |
from US $0.52 |
||
| replacement | |||||
|
22
|
22
93700-060250A Screw, oval, 6x25 |
93700-060250A |
from US $0.58 |
||
|
23
|
23
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
24
|
24
93901-24110 ScrewTAPPING, 4X8 |
93901-24110 |
US $0.37 |
||
