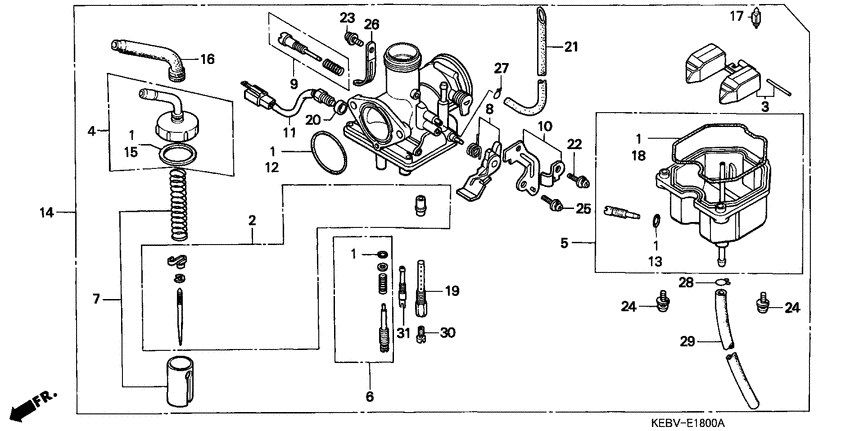

Carburetor Diagram Honda CA125 Rebel
- Year
- 1999
- Model code
- CA125X
- Sales region
- England
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KEB-G01 Gasket set |
16010-KEB-G01 |
from US $21.22 |
||
|
2
|
2
16012-KEB-G01
Needle set,jet
|
16012-KEB-G01 |
— | ||
|
3
|
3
16013-KEH-900 Float set |
16013-KEH-900 |
from US $36.72 |
||
|
4
|
4
16014-KEB-620
Top set
|
16014-KEB-620 |
— | ||
|
5
|
5
16015-KCH-780 Chamber set,float |
16015-KCH-780 |
US $102.09 |
||
|
6
|
6
16016-KCT-690
Screw set a
|
16016-KCT-690 |
— | ||
| replacement | |||||
|
6
|
6
16016-KC2-970 Screw set A |
16016-KC2-970 |
from US $15.10 |
||
|
7
|
7
16022-KEB-G01
Valve set,throttl
|
16022-KEB-G01 |
— | ||
|
8
|
8
16025-KC2-881 Lever set, choke |
16025-KC2-881 |
from US $26.20 |
||
|
9
|
9
16028-KEB-G01 Screw set b |
16028-KEB-G01 |
from US $11.40 |
||
|
10
|
10
16035-KEB-620 Plate set,stay |
16035-KEB-620 |
US $22.68 |
||
|
11
|
11
16070-KEB-612
Heater assy
|
16070-KEB-612 |
— | ||
|
12
|
12
16075-GHB-B70 O-ring (2.4x29) |
16075-GHB-B70 |
from US $6.07 |
||
|
13
|
13
16075-GHB-640 O-ring (1.3x4.3) |
16075-GHB-640 |
from US $1.78 |
||
|
14
|
14
16100-KEB-E01
Carburetor assy.
|
16100-KEB-E01 |
— | ||
|
15
|
15
16110-KN4-651 Gasket, top |
16110-KN4-651 |
from US $4.44 |
||
|
16
|
16
16118-GB4-003 Cap, cable sealing |
16118-GB4-003 |
from US $7.55 |
||
|
17
|
17
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
18
|
18
16163-KCS-920 Gasket |
16163-KCS-920 |
from US $4.95 |
||
|
19
|
19
16165-KEB-G01
Holder,needlejet
|
16165-KEB-G01 |
— | ||
|
20
|
20
16172-KEB-610 Collar, setting |
16172-KEB-610 |
from US $4.47 |
||
|
21
|
21
16199-KEB-900
Tube
|
16199-KEB-900 |
— | ||
|
22
|
22
93892-0400810 Screw-washer (4x8) |
93892-0400810 |
from US $0.44 |
||
| replacement | |||||
|
22
|
22
93892-0400800 Screw-washer, 4x8 |
93892-0400800 |
from US $0.47 |
||
|
23
|
23
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
from US $0.44 |
||
| replacement | |||||
|
23
|
23
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
24
|
24
93892-0401610 Screw-washer, 4x16 |
93892-0401610 |
US $0.44 |
||
| replacement | |||||
|
24
|
24
93892-0401600 Screw-washer (4x16) |
93892-0401600 |
from US $0.44 |
||
|
25
|
25
93892-0501210 Screw-washer (5x12) |
93892-0501210 |
from US $0.47 |
||
| replacement | |||||
|
25
|
25
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.47 |
||
|
26
|
26
94591-26000 Clip2X60 |
94591-26000 |
from US $1.33 |
||
|
27
|
27
9500202089 Clip, tube (b8) |
9500202089 |
from US $0.44 |
||
|
28
|
28
9500202659 Clip, tube (b6.5) |
9500202659 |
from US $0.44 |
||
|
29
|
29
95005-354-005-0 *95005-35001-50m |
95005-354-005-0 |
US $2.07 |
||
|
30
|
30
99101-GHB0950 Jet, main (#95) |
99101-GHB0950 |
from US $5.33 |
||
|
31
|
31
99103-KEB-0380 Jet comp,slow |
99103-KEB-0380 |
US $6.51 |
||
