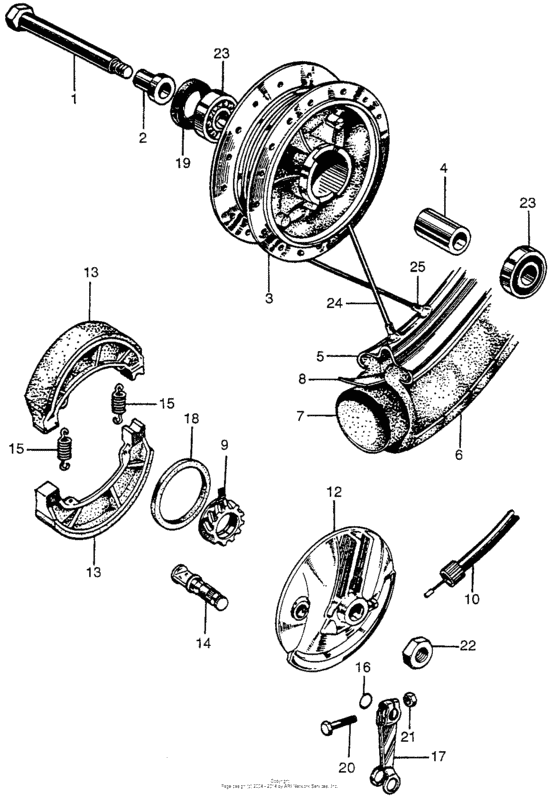

Ca175 front wheel Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-230-020
Axle,front wheel
|
44301-230-020 |
— | ||
|
2
|
2
44311-230-020
Collar,front axle
|
44311-230-020 |
— | ||
|
3
|
3
44601-230-020
Hub,front wheel
|
44601-230-020 |
— | ||
|
4
|
4
44620-230-000 Collar, fr |
44620-230-000 |
from US $6.22 |
||
|
5
|
5
44701-230-000
Rim,wheel
|
44701-230-000 |
— | ||
|
6
|
6
44711-230-000
Tire,300-16nt-77
|
44711-230-000 |
— | ||
|
7
|
7
42712-167-005 Tube (2.75/3.00-16) |
42712-167-005 |
US $11.22 |
||
|
8
|
8
42713-102-005 Flap,tire inoue |
42713-102-005 |
US $9.55 |
||
|
9
|
9
44806-230-020
Gear,speedometer
|
44806-230-020 |
— | ||
|
10
|
10
44830-126-930 Cable,speedmeter |
44830-126-930 |
US $16.47 |
||
|
12
|
12
45100-230-050 Panel,front brakeUse from Frame SN 1021494 |
45100-230-050 |
US $322.44 |
||
|
13
|
13
45120-230-000 Shoe,front brake |
45120-230-000 |
US $31.99 |
||
|
14
|
14
45131-230-010
Cam, brake
Use up to Frame SN 1017611 |
45131-230-010 |
— | ||
|
14
|
14
45131-230-020
Cam,front brake
Use from Frame SN 1017612 |
45131-230-020 |
— | ||
|
15
|
15
45133-303-000
Spring brake shoe
|
45133-303-000 |
— | ||
|
16
|
16
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
17
|
17
45410-230-030
Arm,front brake
Use up to Frame SN 1017611 |
45410-230-030 |
— | ||
|
18
|
18
91251-230-003 Oil seal (54x66x7) |
91251-230-003 |
from US $14.82 |
||
|
19
|
19
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
20
|
20
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
21
|
21
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
22
|
22
94001-140-000-S Nut, hex., 14mmUse up to Frame SN 1021493 |
94001-140-000-S |
from US $0.74 |
||
|
22
|
22
94001-140-200-S
Nut,hex 14m/m
Use from Frame SN 1021494 |
94001-140-200-S |
— | ||
|
23
|
23
96120-63020
B/brg rad n/com
|
96120-63020 |
— | ||
|
24
|
24
97423-311-181
Spork, front, a#1
|
97423-311-181 |
— | ||
|
25
|
25
97603-311-171
Spork, front, a#1
|
97603-311-171 |
— |
