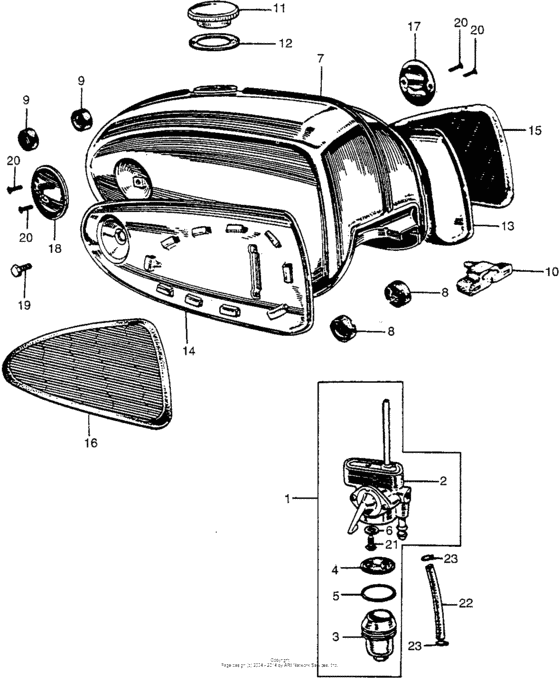

Ca175 fuel tank Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-070-700 Petcock assy.Use up to Frame SN 1021493 |
16950-070-700 |
from US $40.56 |
||
|
2
|
2
16951-028-010
Body,fuel cock
|
16951-028-010 |
— | ||
|
3
|
3
16952-028-000
Cup
|
16952-028-000 |
— | ||
|
4
|
4
16957-028-000 Screen |
16957-028-000 |
from US $13.19 |
||
|
5
|
5
16080-898-631 O-ring |
16080-898-631 |
from US $15.86 |
||
|
5
|
5
16955-283-000 Packing, cock |
16955-283-000 |
US $5.92 |
||
| replacement | |||||
|
5
|
5
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
6
|
6
16993-011-000 Placking |
16993-011-000 |
US $7.70 |
||
|
7
|
7
17500-237-671-Z
Tank, fuel
Use from Frame SN 1021494 |
17500-237-671-Z |
— | ||
|
8
|
8
17602-028-000
Spacer, fuel tank
|
17602-028-000 |
— | ||
|
9
|
9
17611-230-010
Cushion,fuel tank
|
17611-230-010 |
— | ||
|
10
|
10
17613-246-000
Tank cushion
|
17613-246-000 |
— | ||
|
11
|
11
17620-402-010
Cap comp.,fuel fi
|
17620-402-010 |
— | ||
| replacement | |||||
|
11
|
11
17620-402-020 CAP, FUEL FILLER |
17620-402-020 |
US $18.87 |
||
|
12
|
12
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
12
|
12
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
13
|
13
17640-237-671
Cover, r. fuel tank
|
17640-237-671 |
— | ||
|
14
|
14
17650-237-671
Cover, l. fuel tank
|
17650-237-671 |
— | ||
|
15
|
15
17661-223-000
Rubber, r. knee grip
|
17661-223-000 |
— | ||
|
16
|
16
17662-223-000
Rubber, l. knee grip
|
17662-223-000 |
— | ||
|
17
|
17
87121-230-010
Emblem, r. tank
|
87121-230-010 |
— | ||
|
18
|
18
87122-230-010
Emblem, l. tank
|
87122-230-010 |
— | ||
|
19
|
19
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
20
|
20
93500-030060A Screw, pan, 3x6Use from Frame SN 1024905 |
93500-030060A |
from US $0.37 |
||
|
20
|
20
93500-03008 ScrewPAN, 3X8 Use up to Frame SN 1021493 |
93500-03008 |
US $7.53 |
||
|
20
|
20
93500-030-080-A ScrewPAN, 3X8 Use from Frame SN 1021494 to 1024904 |
93500-030-080-A |
from US $0.37 |
||
|
21
|
21
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
22
|
22
95001-550-004-0
Tube,fuel5.5x1200
|
95001-550-004-0 |
— | ||
|
23
|
23
95002-45000 ClipTUBE(C8) |
95002-45000 |
from US $0.37 |
||
